CNC automatic stirrup bending machine
Inquire NowDescription
The CNC automatic stirrup bending machine is a state-of-the-art solution for the construction industry and rebar manufacturing enterprises. This innovative machine is equipped with a servo-controlled system that allows for automatic processes including elastic straightening, stirrup bending, and cutting. It is designed to handle various steel materials such as wire rods and rebar with ease, significantly enhancing efficiency on construction sites.
With its advanced technology, the machine offers high precision and speed, making it an indispensable tool for modern construction needs.
Specifications
| Feature | Details |
|---|---|
| Production Capacity | Single Wire Diameter: 8-16mm; Double Wire Diameter: 8-12mm |
| Max Bending Angle | 180° |
| Central Mandrel Diameter | φ20-30mm |
| Max Pulling Speed | 110m/min |
| Max Bending Speed | 1100 pics/h |
| Average Electric Power Consumption | 5kw/h |
| Rated Power 3 Servo Motor | 27kw + 16.5kw + 2.3KW |
| Voltage | 380V |
| Overall Size | 3500*900*2150 |
| Gross Weight | 2.89T |
Additional Information
1. The machine features an automatic wire feeding system (CNC) for enhanced efficiency.
2. It has a moveable air compressor design for better cooling effects and easy transportation.
3. The patented split, multi-blade design reduces consumption costs.
4. It can save up to 500 processing geometric graphics due to its large storage capacity.
5. The automatic double wire intake system ensures high processing efficiency.
6. A high-power feeding motor guarantees precision in bending.
7. The intelligent fault identification alarm system simplifies maintenance.

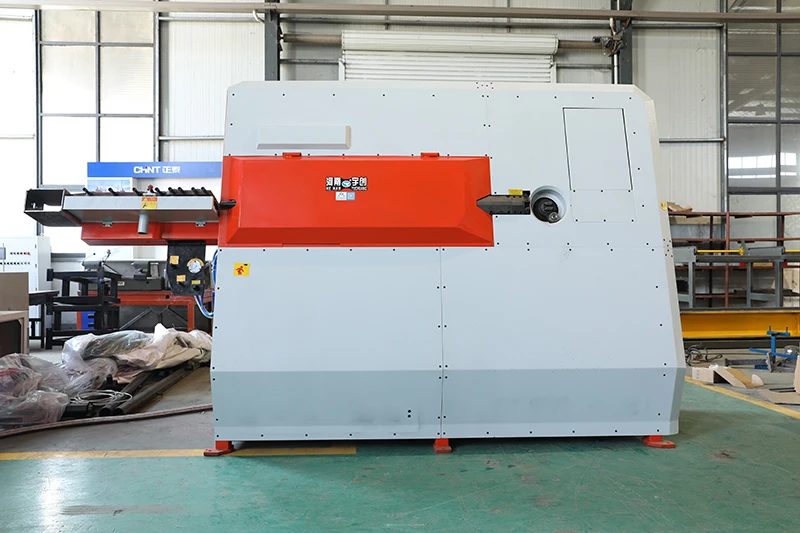

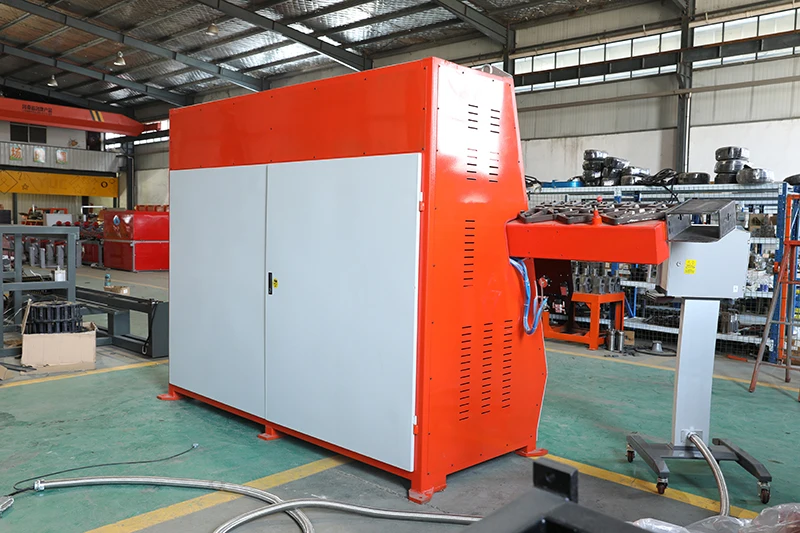

Images
