Description

The CNC Drilling Machine is a sophisticated piece of equipment designed for precision drilling applications. Its robust construction features a special casting design, providing high rigidity and stability. The machine utilizes a vertical machining center lathe bed along with a sliding seat to ensure streamlined operation, significantly reducing the height from the worktable to the ground for easier loading and unloading of workpieces.

Equipped with quenching and grinding guide rails, the machine guarantees smooth operation with automatic intermittent lubrication to maintain accuracy. The X and Y axes employ ball screw drives with a direct connection between the motor and screw, enhancing performance and reliability. With powerful cutting capabilities, high cooling flow rates, and an adequately sized swarf discharging slot, this machine is engineered for efficiency.

Additionally, the CNC drilling machine can integrate with the Guangzhou CNC system model 980MD, supports servo motor control for both the three axes and spindle, and features a spindle box with a full gear transmission structure, delivering a maximum torque of 350 NM. Optional fourth-axis rotary indexing is also available, providing versatility for various machining tasks.

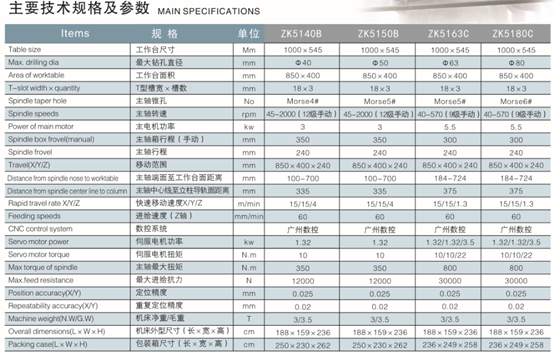

Specifications

Additional Information

• Designed for precision drilling tasks
• Ideal for various machining applications
• Robust performance with user-friendly operation
