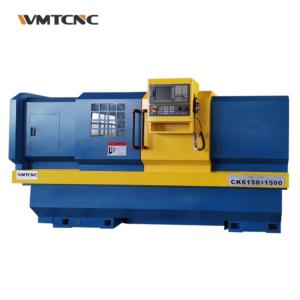

CNC Lathe Machine
Inquire NowDescription
The CNC Lathe Machine is engineered for precision machining and durability, featuring a high rigidity casting bed that ensures stability during operations. It is equipped with high precision spindle bearings, an inductively hardened bed guideway, and a dovetail slot lathe carriage designed for enhanced tool support and longevity. This machine is available with multiple controller options including GSK, Fanuc, and Siemens, making it versatile for various industrial applications.
Specifications
| Specification | Details |
|---|---|
| Model | CK6432x500/750mm |
| Max. swing over bed | 360 mm |
| Max. swing over carriage | 150 mm |
| Distance between centers | 500/750 mm |
| Spindle bore | 60 mm |
| Spindle nose | A2-6 |
| Rail width | 260 mm |
| Taper of spindle bore | MT6 |
| Chuck | 8 |
| Range of speed (Variable) | 150-2500 rpm |
| X axis travel | 350 mm |
| Z axis travel | 500/750 mm |
| X/Z rapid speed | 4/7 m/min |
| X/Z screw | 2004/4006 |
| Station of toolpost | 4 or 6 or 8 |
| Max. section of tool | 20×20 mm |
| Stroke of tailstock sleeve | 100 mm |
| Dia./hole of tailstock sleeve | 50 mm/MT4 |
| Main motor power | 3.7 kW |
| Coolant pump power | 120 W |
| Overall dimension (L*W*H) | 1740/2000 x 1210 x 1650 mm |
| Packing size (L*W*H) | 1960/2230 x 1410 x 1990 mm |
| NW/GW | 1275/1450 kg; 1450/1600 kg |
Additional Information
- High rigidity casting bed ensures stable performance.
- Inductively hardened components for increased durability.
- Versatile controller options provide flexibility for various machining tasks.
