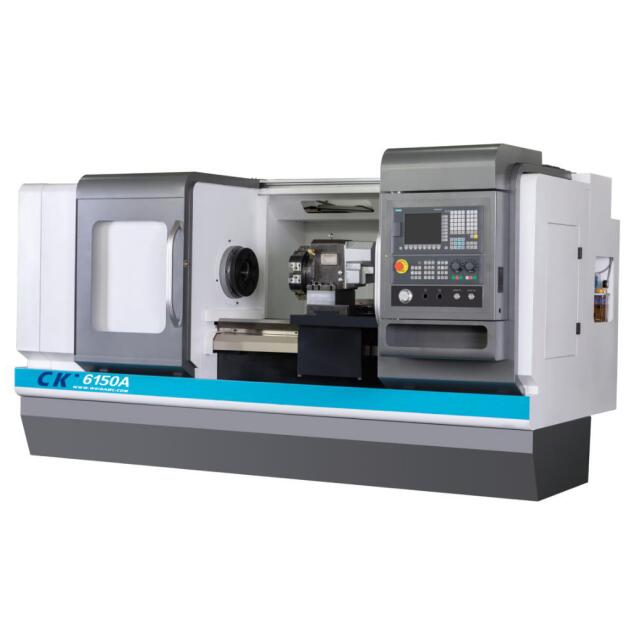

CNC LATHE MACHINE CK6150A
Inquire NowDescription
The CNC Lathe Machine CK6150A is a cutting-edge tool designed for precision machining with impressive versatility. Featuring X and Z two-axis servo direct control and a semi-closed loop system, this lathe is engineered for both high-volume and multi-variety production. Its compact structure allows for the efficient clamping of various discs, shafts, and parts, enabling it to perform turning, grooving, and intricate inner and outer hole processing. The machine is well-suited for complex, high-precision parts machining, combining advanced features with user-friendly operations.
This lathe utilizes a vertical four-station electric tool post, facilitating quick tool exchanges and ensuring high positioning accuracy. With an electromechanical integration and fully enclosed safety protection cover, the CK6150A not only boasts aesthetic appeal but also adheres to safety standards. It meets the National standard JB/T8324.1-96 for CNC horizontal lathe machine accuracy tests, making it a reliable choice for both batch and single-piece production.
Specifications
| Item | Unit | Parameter |
|---|---|---|
| Max. swing dia. Over bed | mm | Φ500 |
| Max. swing dia. over carriage | mm | 290 |
| Width of guide | mm | 400 |
| Max. turning length | mm | 850 |
| Max. center distance | mm | 1000 |
| X travel | mm | 295 |
| Z travel | mm | 900 |
| X/Z rapid speed | mm/min | 6000/8000 |
| X servo motor torque | N.m | 7.5 |
| Z servo motor torque | N.m | 10 |
| Spindle speed range | r.p.m | 20-2000 |
| Spindle type | type | A2-8 |
| Spindle hole diameter | mm | Φ82 |
| Spindle taper | 1:20 | |
| Manual three jaw chuck | mm | Φ250 |
| Spindle motor power | Kw | 7.5Kw |
| Electric tool holder | type | Vertical four-station |
| Tool specification | mm | 25X25 |
| Tailstock quill dia. | mm | Φ75 |
| Tailstock quill taper | mm | MT5# |
| Tailstock quill travel | mm | 150 |
| Overall size | mm | 2810*1600*1620 |
| Weight | Kg | 1200 |
Additional Information
- Suitable for semi-finishing and finishing tasks.
- High reliability due to selected parts from reputable manufacturers.
- Centralized lubrication system enhances durability and performance.
