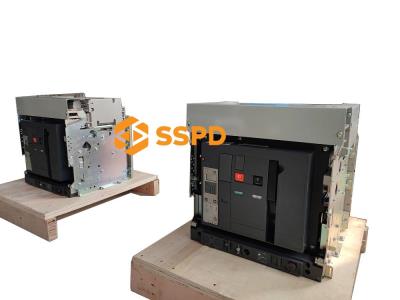

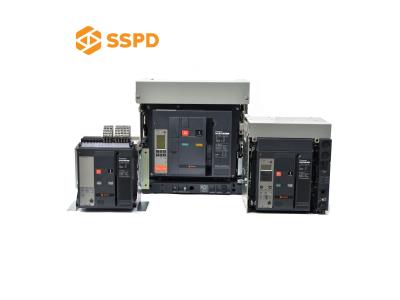

CNW08 to CNW63 Air Circuit Breaker
Inquire NowDescription
The CNW08 to CNW63 Air Circuit Breaker is a reliable and efficient solution for electrical distribution and protection in various industrial applications. With over 30 years of experience in manufacturing, this product offers exceptional quality at a moderate price, making it an ideal choice for dealers, wholesalers, and businesses seeking dependable circuit protection solutions. Designed to handle both standard and high short-circuit currents, the CNW series provides a robust performance in critical environments.
Featuring a range of rated operational currents from 800A to 6300A, this circuit breaker is suited for multiple applications, including limiting circuit protection, high-performance setups, and incoming devices for critical systems. The CNW08 to CNW63 comes with both fixed and drawout configurations, ensuring versatility and ease of installation.
Specifications
| Item No. | CNW08 to CNW63 |
|---|---|
| Number of Poles | 3/4 |
| Rated Insulation Voltage (V) | 1000 / 1250 for H10, HA10 |
| Impulse Withstand Voltage (kV) | 12 |
| Rated Operational Voltage (V AC 50/60Hz) | 690 / 1150 for H10, HA10 |
| Suitability for Isolation | IEC60947-2 |
| Degree of Pollution | IEC60664-1 4 (1000V) / 3 (1250V) |
| Rated Current (A) | 800-1600 / 800, 1000, 1250, 1600, 2000, 2500, 3200, 4000, 5000, 6300 |
| Type of Application | Standard applications with low short-circuit currents / Circuit breaker for industrial sites with high short-circuit currents / High-performance circuit breaker for heavy industry / Incoming device with very high performance for critical applications |
| Icu/Ics at 440 V | 42 kA / 65 kA / 100 kA / 120 kA |
| Position of Neutral | Left / Left or Right |
| Switch-Disconnector Version | Yes |
| Front Connection | Yes / Yes up to 3200A |
| Rear Connection | Yes |
| Type of MicroLogic Control Unit | A, E, P, H |
Additional Information
Each circuit breaker in the CNW series is designed for durability and high performance, suitable for a variety of industrial applications. Clients are encouraged to consider the specific requirements of their installation to select the appropriate configuration. Images of the product dimensions are provided below for reference.
CNW08 to CNW32
Fixed 3/4-poles device
Dimensions:
Drawout 3/4-poles device
Dimensions:
CNW40
Fixed 3/4-poles device
Dimensions:
Drawout 3/4-poles device
Dimensions:
CNW40b to CNW63
Fixed 3/4-poles device
Dimensions:
Drawout 3/4-poles device
Dimensions:
