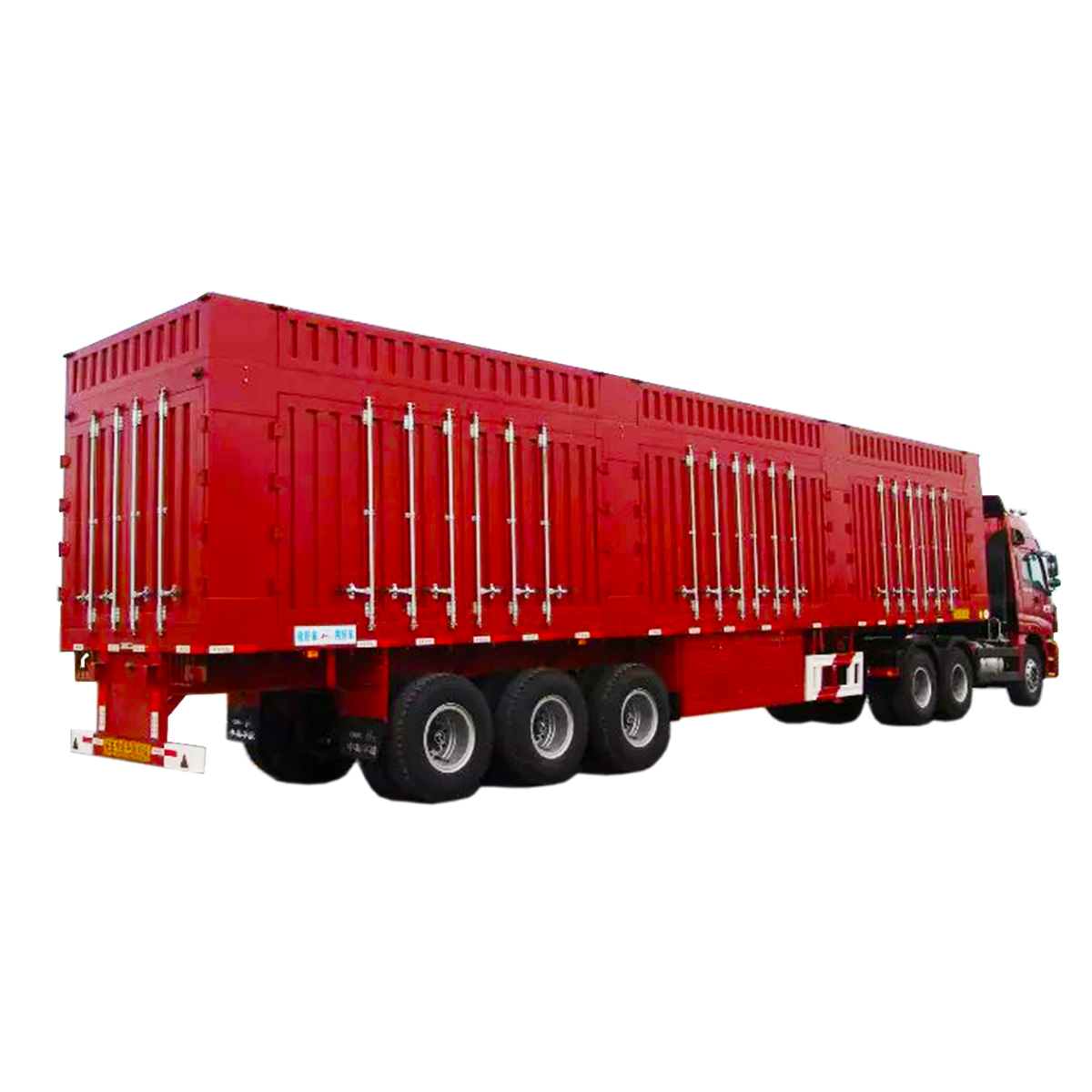

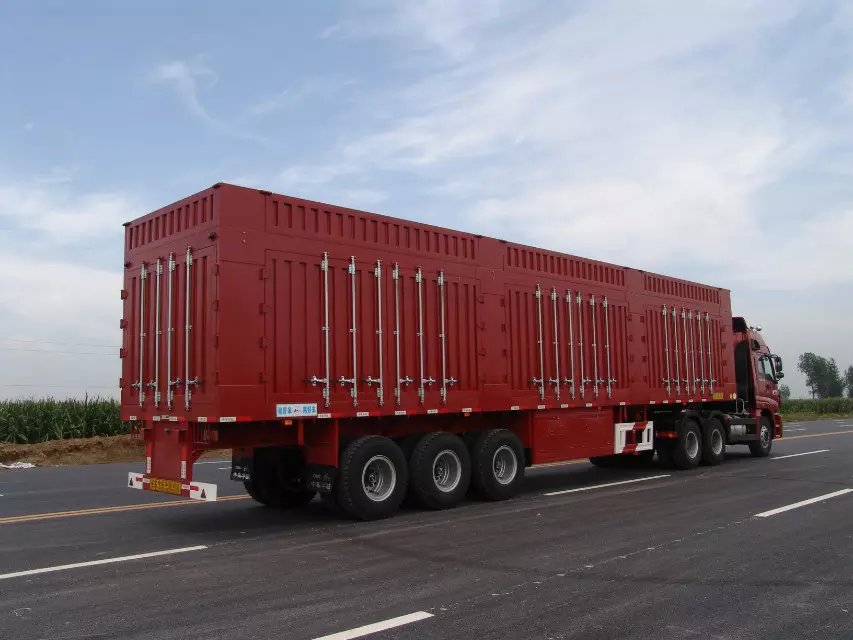

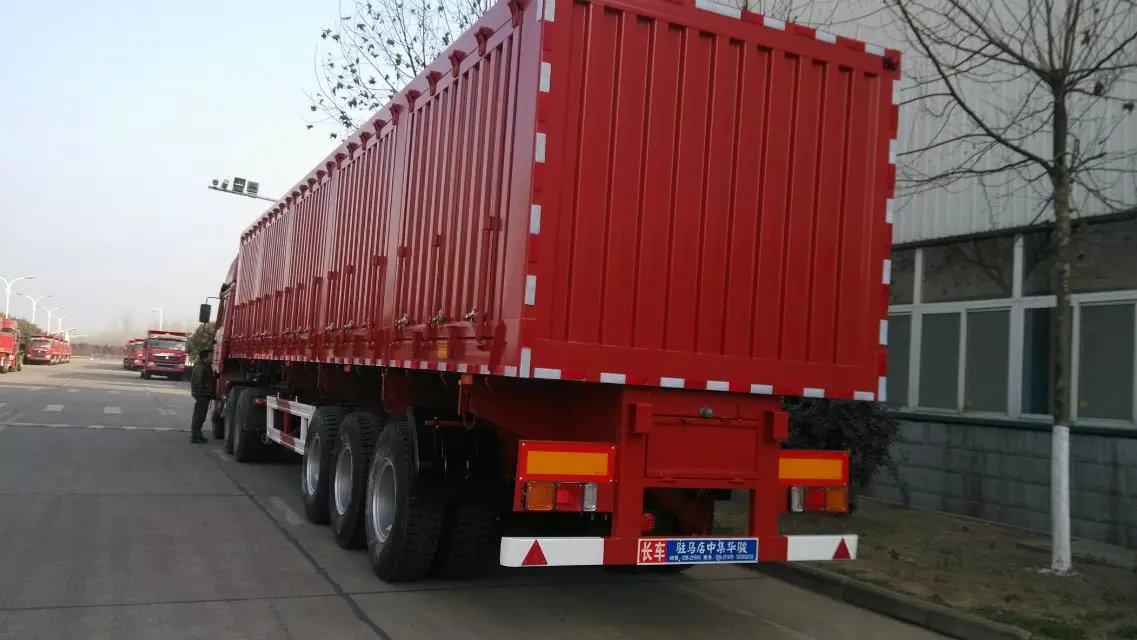

Coal-Carrier Van Trailer
Inquire NowDescription
The Coal-Carrier Van Trailer is engineered for performance and durability, providing an exceptional solution for transporting coal efficiently. With a robust design featuring a heavy-duty chassis and advanced materials, this trailer is built to withstand the rigors of heavy loads while ensuring safety and reliability on the road. Its spacious dimensions make it ideal for large shipments, while the meticulous craftsmanship ensures a long-lasting investment.
Specifications
| Feature | Details |
|---|---|
| Overall Size | 13000mm L * 3000mm W, side wall height: 2000mm |
| Chassis | Heavy duty I beam; High tensile steel Q345B; welded by automatic Submerged-Arc processes; Main beam height: 600mm |
| Axles | 3, 20T FW |
| Tyres | 12, 12.00R20-18PR, without spare tire |
| Rims | 12, domestic brand 8.5-20 |
| Leaf Spring | 6, 120 width * 12 pieces * 16 thickness |
| Suspension | 3, CIMC HUAJUN reinforced type |
| Van Body | 6mm, Q345 |
| Floor | 8mm, Q345 |
| Relay Valve | WABCO |
| Brake Chamber | 6, T30/30 for all axles |
| Electrical System | 24 volt; 7 pin electrical connector; conform to European standards |
| Paint | Short blasted to SA 2.5 grade; multi-layered paint for durability |
| Landing Gear | 1, JOST E100, 19 inch |
| Kingpin | 1, JOST 90# |
| Tool Box | 1, located on the right side |
Additional Information
- Designed for heavy-duty use, ensuring reliability over long distances.
- Compliant with safety regulations and standards for safe transportation of goods.
