Color steel glazed tile roll forming machine iron sheet making wellding machine
Inquire NowDescription
The Color Steel Glazed Tile Roll Forming Machine is an advanced piece of machinery designed for the efficient production of iron sheet tiles. This welding machine specializes in creating high-quality color steel glazed tiles, essential for a variety of construction and building applications. With its robust construction and user-friendly design, this tile-making machinery ensures durability and reliability in industrial settings.
Equipped with a series of advanced features, this machine offers precise control over the forming process and is capable of handling various thicknesses of steel plates. Its manual de-coiler and hydraulic cutting system enhance operational efficiency, making it an invaluable asset for manufacturers focused on producing aesthetically pleasing and durable roofing materials.
Specifications
| NO. | Main Parameter | Details |
|---|---|---|
| 1 | Suitable to process | Color steel plate |
| 2 | Width of the plate | 1000mm |
| 3 | Thickness of the plate | 0.3-0.7mm |
| 4 | De-coiler | Manual one, can load 5 tons raw material |
| 5 | Rollers for forming | 12 rows |
| 6 | Diameter of the roller | 80mm |
| 7 | Rolling material | Carbon Steel 45# |
| 8 | Main motor power | 4kw |
| 9 | Productivity | 0-3m/min |
| 10 | Cutting method | Hydraulic mould cutting |
| 11 | Material of the cutting blade | Cr12 |
| 12 | Hydraulic cutting power | 3kw |
| 13 | Processing precision | Within 1.00mm |
| 14 | Control system | Delta PLC control |
| 15 | Side panel of machine | 14mm |
| 16 | Main structure of the machine | 300 H steel |
| 17 | Weight | About 4.0T |
| 18 | Dimensions | 7.0*1.5*1.55m |
| 19 | Voltage | 380V 50Hz 3phases (changeable as needed) |
| 20 | Certificate | CE/ISO |
| 21 | Custom | According to customer’s requirements |
Additional Information
Equipment components include a man-made uncoiler, roll forming machine, computer control system, hydraulic control system, and cutting mechanism. This machine is widely utilized in various industrial factories, civilian buildings, warehouses, and easy steel building manufacturing. It is designed to deliver both aesthetic appeal and durability.

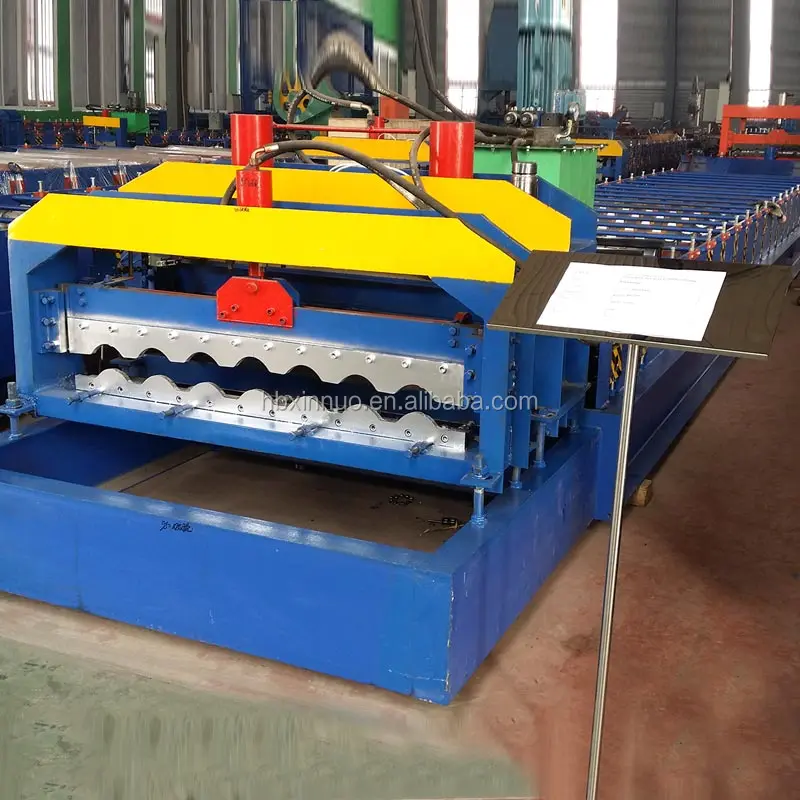

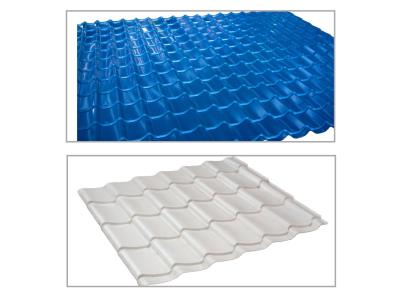

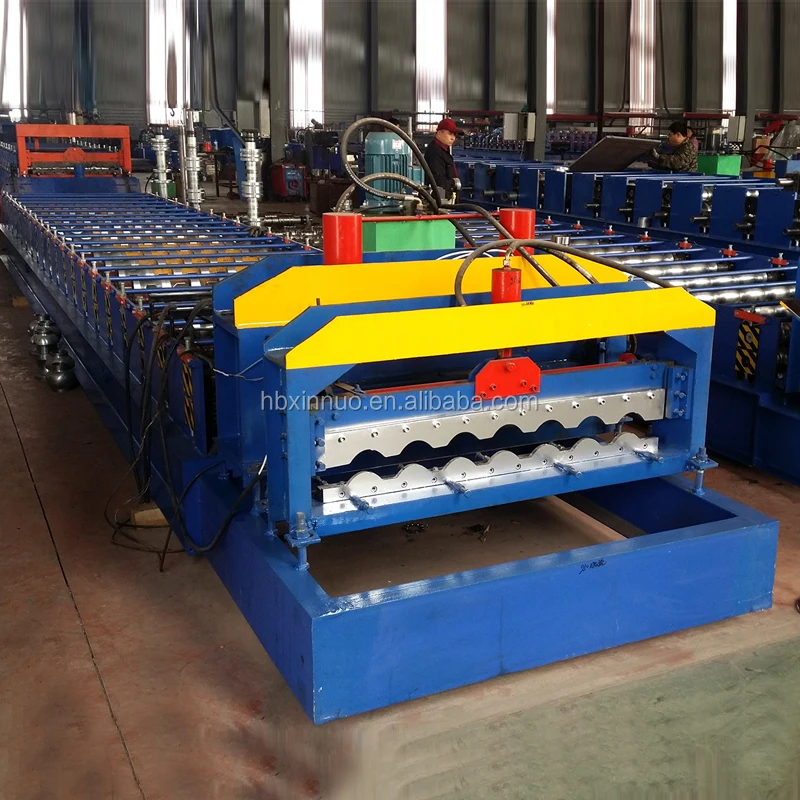

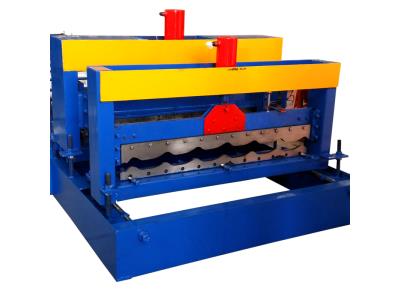

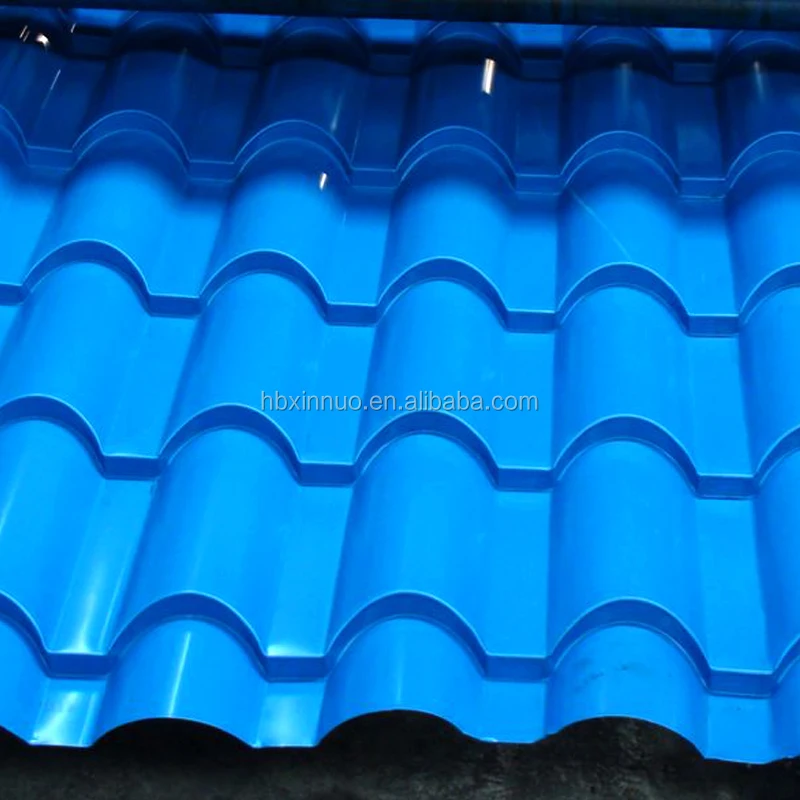

Product Pictures
