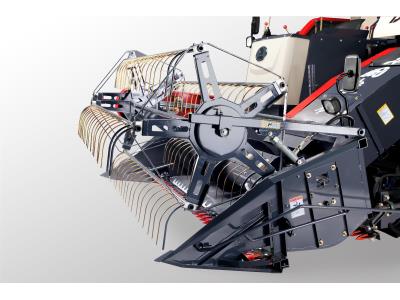

Combine-harvester 4LZ series
Inquire NowDescription
The 4LZ Series Combine Harvester is engineered for professionals seeking efficiency and reliability in harvesting. With impressive horsepower and a capacity for high feed intake, this machine offers exceptional harvesting power. Its long, wide track ensures adaptability across various terrains, while the hydraulic drive system simplifies operation, making it user-friendly for all levels of expertise. The compact structure not only enhances maneuverability but also allows for easy maintenance, ensuring that your harvesting needs are met with minimal downtime.
Specifications
| Model | 4LZ-2.5Y | 4LZ-2.5Z | 4LZ-3.5Z | 4LZ-4.0Z | 4LZ-5.5Z | |
|---|---|---|---|---|---|---|
| Type | Full-feeding combine harvester, hydraulic automatic discharge | |||||
| Dimensions at work (L×W×H mm) | 5000×2780×2475 | 4800×2950×2490 | 4800×2950×2490 | 4880×3060×2490 | 4960×2750×2490 | |
| Working mass (kg) | 2950 | 2780 | 2830 | 3100 | ||
| ENGINE | Model | 4L88 | 4G33TC | |||
| Type | Turbo diesel engine | |||||
| Rated power (kW) | 62.5 | 62 | 62.5 | 72 | 75 | |
| Rated speed (rpm) | 2400 | |||||
| Capacity of fuel tank (L) | 62 | |||||
| Storage battery | 24×80 (12V/80Ah×2) | 12×120 (12V/120Ah) | ||||
| Traveling | Crawler (mm) | 90×50×400 | 90×51×400 (450 Width can be chosen) | 90×51×450 | ||
| Gearbox | Hydro-static transmission (HST) + Gear transmission | |||||
| Brake | Wet type, multi-disc, rub | |||||
| Speed (km/h) | L: 0-4.115, H: 0-5.335, Walking speed: 0-7.985 | |||||
| Ground pressure (kPa) | 20.3 | |||||
| Min. Ground Clearance (mm) | 220 | 280 | ||||
| Reaper | Cutting width (mm) | 2000 | 2200 | |||
| Required height of Crop (mm) | >400 | |||||
| Adaptability to Inclination | 85° or Less For Toward Reaping. | |||||
| 70° or Less For Reverse Reaping | ||||||
| Lifting of Reel | Hydraulic | |||||
| Model of speed change | Uniform velocity | |||||
| Thresher | Main rotary drum, diameter × length | 620×1790 | 630×2000 | |||
| Separating Method | Wind System, Vibration Fair | |||||
| Fan | Model | Wind System | ||||
| Diameter (mm) | 390 | 396 | ||||
| Number | 1 | |||||
| Discharge | Capacity (L) | 600 | ||||
| Number of output | 2 | |||||
| Cutting | Blade | 37 | ||||
| Crop | oilseed, wheat, rice | wheat, rice | ||||
| Working efficiency (mu/h) | 4~8 | |||||
| Consume of fuel (L/mu) | 1.1~2.3 | |||||
| Total loss (%) | wheat ≤1.2, rice ≤3.0, oilseed ≤8.0 | |||||
| Impurity rate (%) | wheat, rice ≤2.0, oilseed ≤6.0 | |||||
