OEM ODM Concrete Laser Screed Machine.
Description

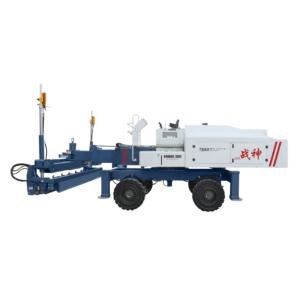

The YZ28-4S Four-Wheel Self-Leveling Laser Screed Machine is a state-of-the-art equipment designed for precision in concrete floor treatment. Engineered with advanced technology, this machine boasts a powerful Honda GX690 engine, a 2.8-meter wide integrated self-leveling head that is both hydraulic and rotatable, and an intuitive display screen to monitor the working status. Its user-friendly design features fewer switches and an easy-access hinged console, ensuring a comfortable operating experience for any contractor.
This high-performance laser screed is equipped with a patented fully integrated self-leveling head, allowing it to plow, level, and consolidate concrete in a single automated move. Its imported hydraulic drive motor and low-speed, high-torque reducer contribute to its robustness and efficiency, making it an ideal choice for both indoor and outdoor applications.
Specifications
| Attribute | Details |
|---|---|
| Model | YZ28-4S |
| Engine | Honda GX690 |
| Engine Type | Petrol, Air-cooled, 4-stroke, Double cylinder |
| Power | 18.4KW / 25HP |
| Fuel Tank Volume | 20L |
| Screed Width | 2.8m |
| Paving Mode | Hydraulic screw conveyor spreading |
| Paving Thickness | 5-30cm |
| Screw Conveyor Power | Low speed large torque cycloidal hydraulic motor |
| Control Mode of Vibrating System | Vibration motor |
| Excitation Force | 2000N |
| Vibration Motor Speed | 4000rpm |
| Laser System Emitter | Trimble 422 |
| Laser Receiver | Trimble LR410 |
| Driving System | Imported integrated Reducer + Motor |
| Outline Dimension | 3100 x 1950 x 2000 mm |
| Net Weight | 810 kg |
Additional Information
- This machine is suitable for various applications, including indoor floors (warehouses, workshops) and outdoor concrete surfaces (docks, parking lots).
- The YZ28-4S laser screed is manufactured in Shandong, ensuring quality control at every stage from raw material to assembly.
