Description

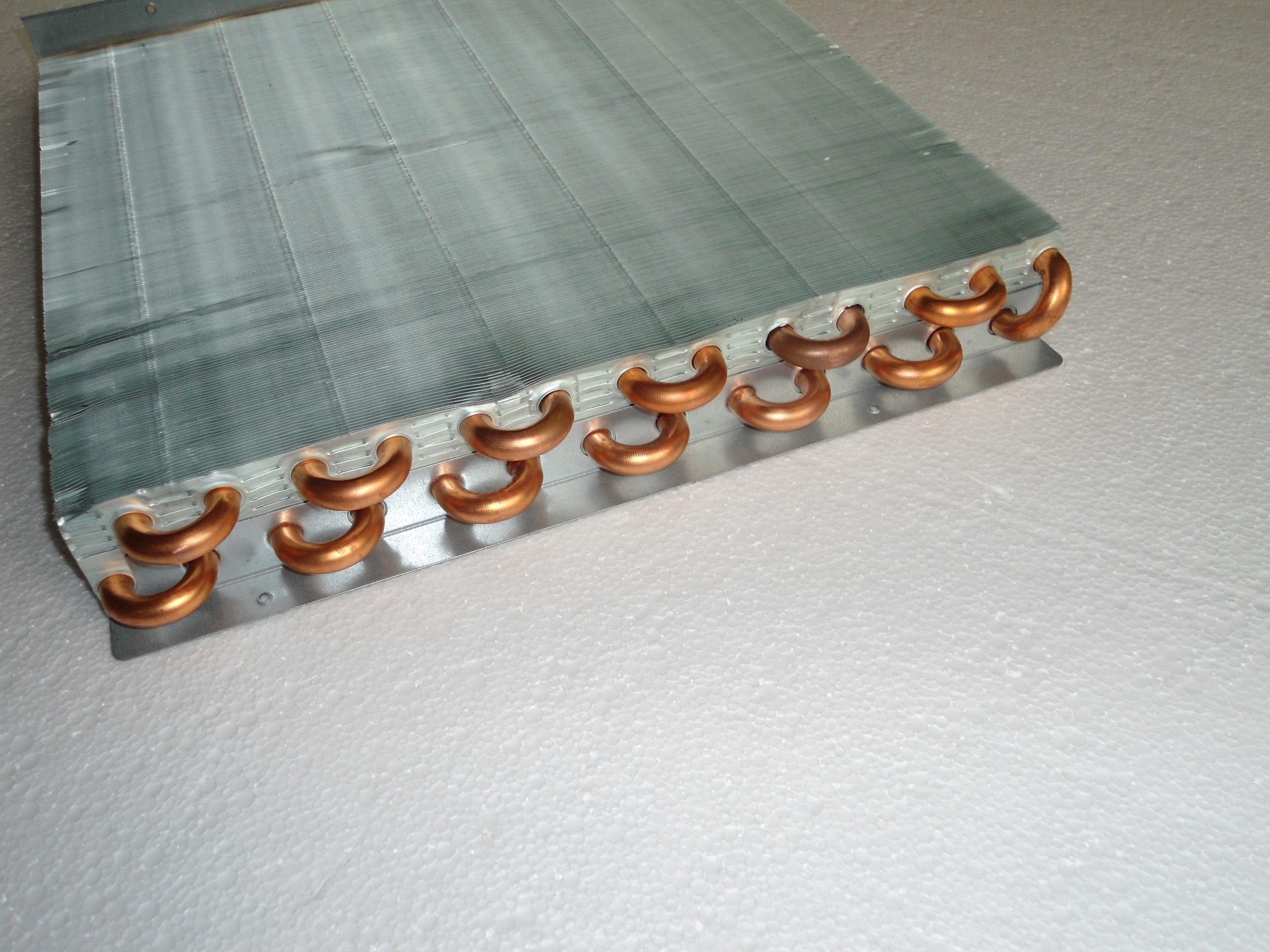

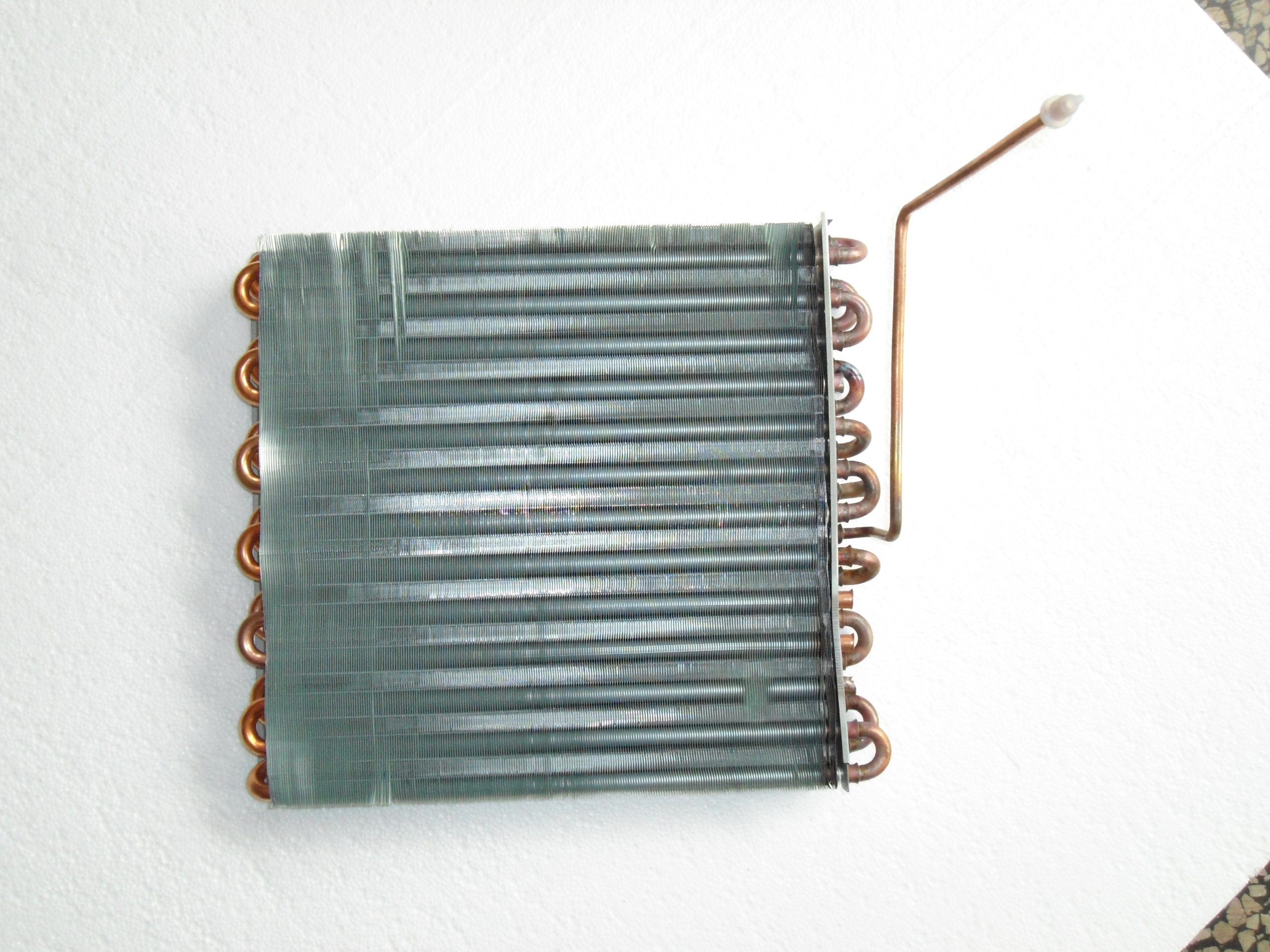

The CONDENSER is a highly efficient component designed for optimal thermal exchange in various applications. Engineered from high-quality raw materials, including copper tubes and galvanized steel plates, this condenser guarantees robust performance and durability. Its advanced design features smooth and grooved tubes, allowing for enhanced heat transfer efficiency.
Each condenser is crafted with precision, utilizing a variety of fin types such as slit fin, wave fin, and louver fin, catering to different thermal management needs. The unit is specifically designed to support a range of technical standards, ensuring compliance with industry regulations while delivering exceptional functionality.
Specifications
| Specification | Holes Distance | Fin Type | Technical Ability |
|---|---|---|---|
| 5 | 19.5×11.6 isosceles triangle shape |
Slit fin | 5 Rows, 46 Holes, L: ≤1050mm Fin pitch: 1.2~1.4mm |
| 5 | 19.05×16.5 equilateral triangle shape |
Flat fin, wave fin | 12 Rows, 40 Holes, L: ≤1500mm Fin pitch: 1.2~3.0mm |
| 7 | 21×12.7 isosceles triangle shape |
wave fin, Slit fin, louver fin | 6 Rows, 36 Holes, L: 1800mm(max) Fin pitch: 1.2～1.9mm |
| 7 | 21×18.19 isosceles triangle shape |
Wave fin | 4 Rows, 46 Holes, L: ≤1500mm Fin pitch: 1.2～1.9mm |
| 7 | 25×21.65 equilateral triangle shape |
Flat fin, Wave Fin | 4 Rows, 36 Holes, L: ≤1200mm Fin pitch: 1.2～1.9mm |
| 9.52 | 25.4×22 equilateral triangle shape |
Flat fin | 2 Rows, 36 Holes, L: 1300mm(max) Fin pitch: 1.3～2.0mm |
Additional Information
- Raw Materials: Copper tube (inner smooth or inner grooved), hydrophilic aluminum foil, galvanized steel, aluminum plate, stainless steel plate.
- Thickness: Wall thickness of 0.32 to 0.36 mm for copper tubes; side plate thickness of 0.8 to 1.5 mm.
- Technical Standards: Conforms to various industry specifications for reliability and performance.
