Connector
Inquire NowDescription

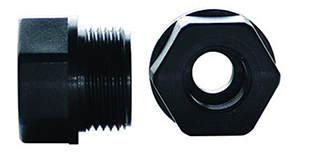

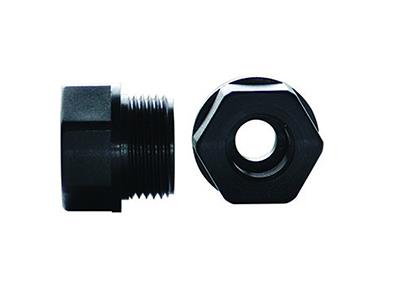

The Connector is a versatile reducing connector designed for efficient plumbing applications. This product is constructed from durable ABS material, ensuring longevity and reliability in various environments. The connector comes in multiple configurations, including specifications that accommodate both male and female threads, allowing for seamless integration into existing setups.
With temperature resistance ranging from 1 to 55℃, this connector is suitable for a variety of water sources. Additionally, its compact dimensions make it an ideal choice for tight spaces, while its robust design guarantees leak-free connections. Whether you’re a professional plumber or a DIY enthusiast, the Connector is an essential component for your piping needs.
Specifications
| Specification | Type 1 | Type 2 | Type 3 |
|---|---|---|---|
| Size | 3/4″ F * 1″ M | 1/2″ F * 1″ M | 3/4″ M * 1/2″ M |
| Dimension | 32mm * 25mm * 31mm | 32mm * 20mm * 31mm | 20mm * 25mm * 38mm |
| Material | ABS | ||
| Nominal Size | 0.6MPa | ||
| Water Temperature | 1–55℃ | ||
Additional Information
Types: 1″M× 1″F/NPT, 1″F× 1″M/NPT, 3/4″F× 3/4″M/NPT, 2″M× 2″F/NPT, 2″F× 2″M/NPT
