Copper Conductor XLPE Insulated PVC Sheathed Power Cable
Inquire NowDescription

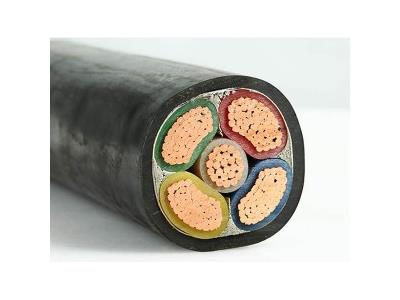

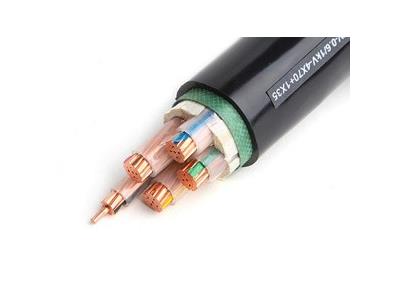

The Copper Conductor XLPE Insulated PVC Sheathed Power Cable is expertly designed for fixed laying in power transmission and distribution lines. It is suitable for alternating current (AC) systems operating at 50Hz with a rated voltage ranging from 0.6/1kV to 35kV. This power cable features a robust copper or aluminum conductor, ensuring exceptional conductivity and durability. Available in various configurations—single core, two cores, three cores, four cores (3+1), and five cores (3+2)—it meets diverse electrical requirements. Choose from multiple cable types, including non-armored, double steel tape armored, and steel wire armored options, to suit your installation needs.
Specifications
| Name | XLPE Insulated Power Cable |
|---|---|
| Standard | IEC60502, BS, DIN, ASTM, GB12706-2008 |
| Voltage | Up to 35KV |
| Conductor | Copper or Aluminum |
| Cross Section | Based on client’s requirement |
| Application | Medium Voltage Power Cable used for fixed laying to distribute electricity in AC rated voltage 35kV and under transmission lines |
| Package | Wooden Drum Package or Iron-wooden drum |
| Insulation | PVC or XLPE |
Additional Information
We can produce a wide range of power cables with rated voltages (U0/U) from 0.6/1 kV to 1.8/3 kV, 3.6/6 kV, 3.6/7.2 kV, 6/10 kV, 6/12 kV, 8.7/15 kV, 8.7/17.5 kV, 12/20 kV, 12/24 kV, 18/30 kV, and 18/36 kV, specifically designed for waterproofing purposes in transmission and transformation lines.
