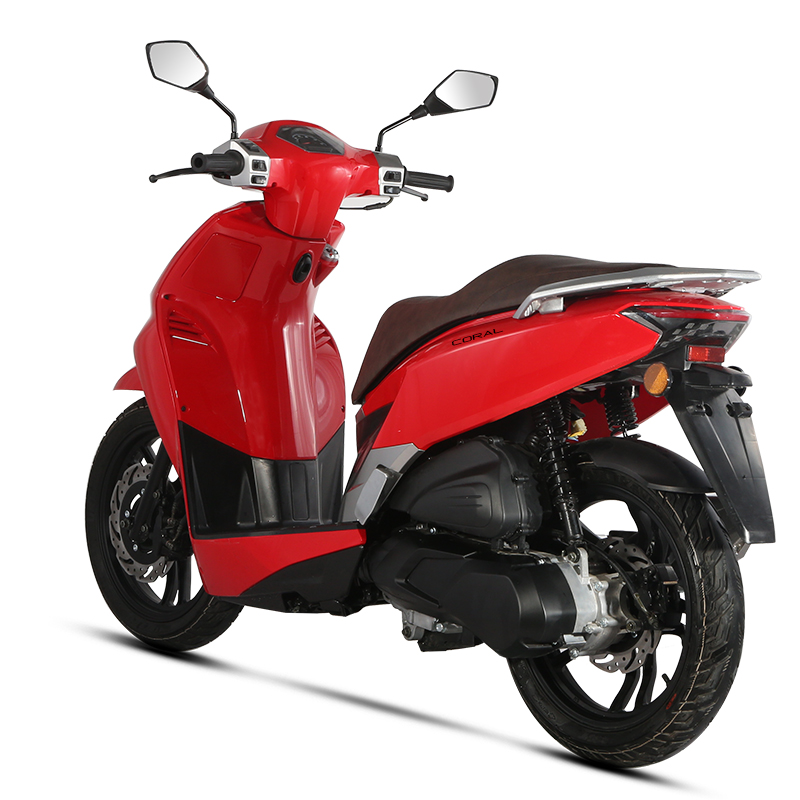

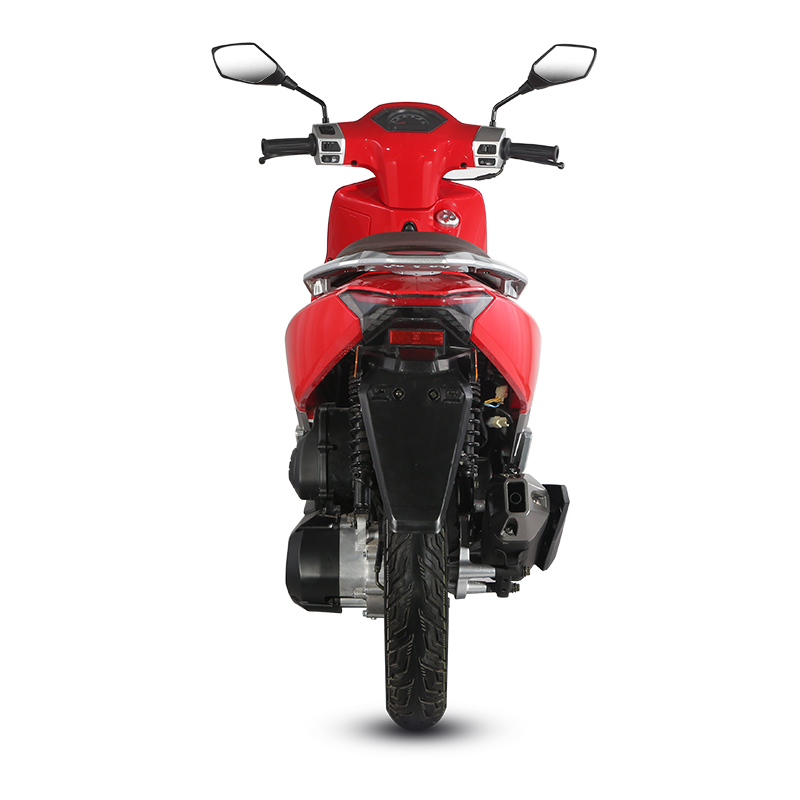

Coral-Zhongneng Znen 16 inch big wheel scooter

Inquire Now

1. Appearance
1.1 lamps: all lamps are LED, fashionable design and good visual.
1.2 seat: is fashionable, and high and low drop design can bring excellent driving experience.
1.3 instrument: it uses mechanical combinate with digital instrument, which is rich in strong movement atmosphere.
1.4 lock: anti-theft central control lock, more safe and convenient.
1.5 braking: equipped with high-performance CBS braking system, good braking performance, stable and reliable.
1.6 tyre: 110 / 70-16 vacuum tires are equipped at the front and rear to improve the driving stability and trafficability.
1.7 fuel tank: 7-Liter fuel tank, which can meet the long-distance riding.
1.8 air intake: air filter and engine side cover adopt high-level air intake at the same time, which can effectively improve the pollution of engine air intake and extend the service life of engine.
1.9 muffler: aluminum decorative cover, full of sense of movement.
1.10 storage: a full helmet can be placed. The front part of the storage box is designed with a 5v2a quick charging USB interface
1.11 rear carrier: aluminum alloy rear carrier is adopted, which can be equipped with more than 25L rear box.
2. Engine
2.1 it is equipped with a newly independently developed high-power engine, which adopts integrated cylinder head design, high-strength forged cam, roller type valve rocker arm and lightweight piston to make the engine run more smoothly and keep a strong heart at all times.

1. Appearance

1.1 lamps: all lamps are LED, fashionable design and good visual.

1.2 seat: is fashionable, and high and low drop design can bring excellent driving experience.

1.3 instrument: it uses mechanical combinate with digital instrument, which is rich in strong movement atmosphere.

1.4 lock: anti-theft central control lock, more safe and convenient.

1.5 braking: equipped with high-performance CBS braking system, good braking performance, stable and reliable.

1.6 tyre: 110 / 70-16 vacuum tires are equipped at the front and rear to improve the driving stability and trafficability.

1.7 fuel tank: 7-Liter fuel tank, which can meet the long-distance riding.

1.8 air intake: air filter and engine side cover adopt high-level air intake at the same time, which can effectively improve the pollution of engine air intake and extend the service life of engine.

1.9 muffler: aluminum decorative cover, full of sense of movement.

1.10 storage: a full helmet can be placed. The front part of the storage box is designed with a 5v2a quick charging USB interface

1.11 rear carrier: aluminum alloy rear carrier is adopted, which can be equipped with more than 25L rear box.

2. Engine

2.1 it is equipped with a newly independently developed high-power engine, which adopts integrated cylinder head design, high-strength forged cam, roller type valve rocker arm and lightweight piston to make the engine run more smoothly and keep a strong heart at all times.

Model

ZN125T-71

ZN150T-71

ZN175T-71

Top Speed(km/h)

95

102

108

L×W×H(mm)

1990*690*1150

1990*690*1150

1990*690*1150

Wheelbase(mm)

1350

1350

1350

N.W/G.W(kg)

114

116

116

Displacement(cc)

124.6

149.6

168.9

Max.Output kw(r/min)

7.5/8000

8.5/8000

9/7500

Max.torque.N.m(r/min)

10/6500

11.5/6000

13/5500

Brake Mode

Disc/Disc

Disc/Disc

Disc/Disc

Tank Capacity(L)

7.0

7.0

7.0

Front Tire

110/70-16

110/70-16

110/70-16

Rear Tire

110/70-16

110/70-16

110/70-16
