Core bits and segmentsFBK series
Inquire NowDescription

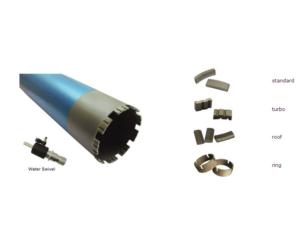

The FBK series of Thin Wall Diamond Core Drill Bits is designed for professionals seeking quality and efficiency in wet drilling applications. Perfect for working with concrete, reinforced concrete, brick, and block, these drill bits feature advanced silver brazed and laser welded technology that ensures fast drilling and smooth operation. Available in various bonds and segment designs tailored to meet customer requirements, the drill bits come with standard segment heights of 7, 8, and 10 mm, with additional sizes available upon request. The standard bonds include B10 for cured/reinforced concrete drilling and B20 for medium hard/soft concrete drilling.
Specifications
| Model | Diameter | Segment Height | Bond Type |
|---|---|---|---|
| FBK012 | 1/2″ (12mm) | Standard | B10/B20 |
| FBK038 | 1 1/2″ (38mm) | Standard | B10/B20 |
| FBK076 | 3″ (76mm) | Standard | B10/B20 |
| FBK152 | 6″ (152mm) | Standard | B10/B20 |
| FBK015 | 5/8″ (15mm) | Standard | B10/B20 |
| FBK041 | 1 5/8″ (41mm) | Standard | B10/B20 |
| FBK082 | 3 1/4″ (82mm) | Standard | B10/B20 |
| FBK178 | 7″ (178mm) | Standard | B10/B20 |
| FBK019 | 3/4″ (19mm) | Standard | B10/B20 |
| FBK044 | 1 3/4″ (44mm) | Standard | B10/B20 |
| FBK089 | 3 1/2″ (89mm) | Standard | B10/B20 |
| FBK202 | 8″ (202mm) | Standard | B10/B20 |
| FBK022 | 7/8″ (22mm) | Standard | B10/B20 |
| FBK047 | 1 7/8″ (47mm) | Standard | B10/B20 |
| FBK095 | 3 3/4″ (95mm) | Standard | B10/B20 |
| FBK230 | 9″ (230mm) | Standard | B10/B20 |
| FBK025 | 1″ (25mm) | Standard | B10/B20 |
| FBK051 | 2″ (51mm) | Standard | B10/B20 |
| FBK250 | 4″ (250mm) | Standard | B10/B20 |
| FBK250 | 10″ (250mm) | Standard | B10/B20 |
| FBK028 | 1 1/8″ (28mm) | Standard | B10/B20 |
| FBK057 | 2 1/4″ (57mm) | Standard | B10/B20 |
| FBK108 | 4 1/2″ (108mm) | Standard | B10/B20 |
| FBK300 | 12″ (300mm) | Standard | B10/B20 |
| FBK031 | 1 1/4″ (31mm) | Standard | B10/B20 |
| FBK063 | 2 1/2″ (63mm) | Standard | B10/B20 |
| FBK127 | 4 3/4″ (127mm) | Standard | B10/B20 |
| FBK350 | 16″ (350mm) | Standard | B10/B20 |
| FBK035 | 1 3/8″ (35mm) | Standard | B10/B20 |
| FBK070 | 2 3/4″ (70mm) | Standard | B10/B20 |
| FBK140 | 5 1/2″ (140mm) | Standard | B10/B20 |
| FBK400 | 18″ (400mm) | Standard | B10/B20 |
