Description

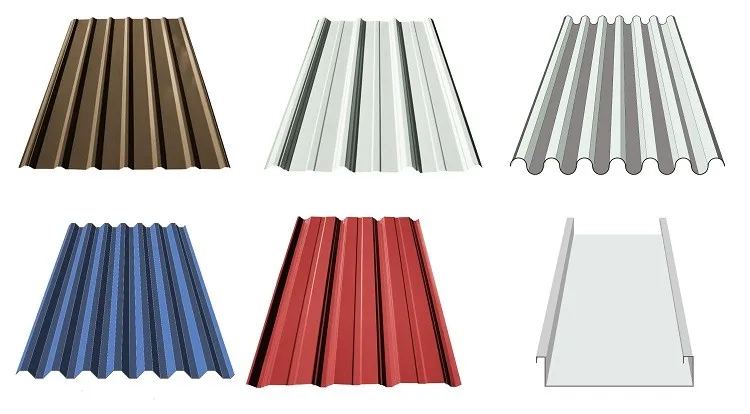

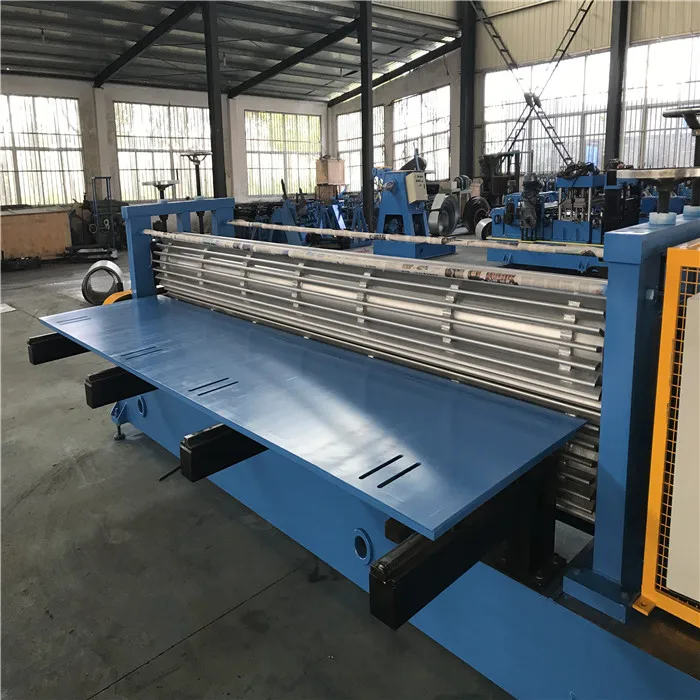

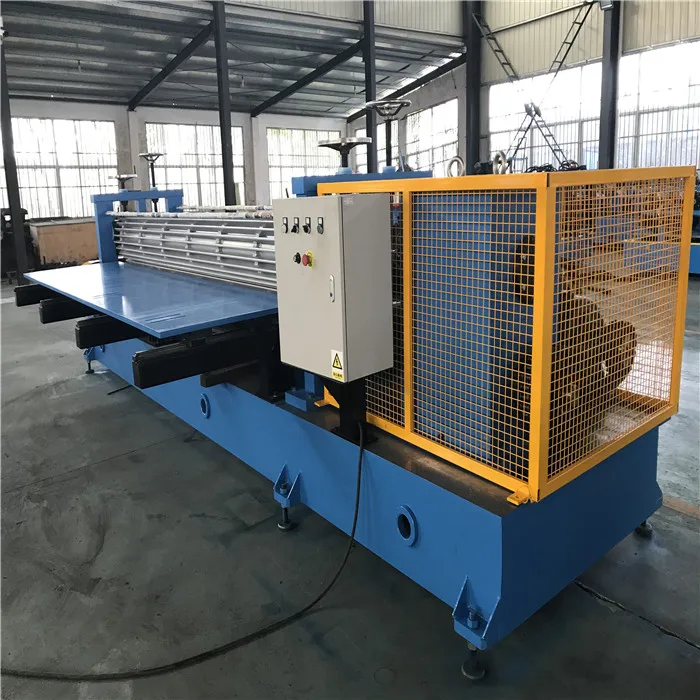

The Corrugated Barrel Corrugated Roll Forming Machine is a state-of-the-art solution designed for creating high-quality corrugated sheets from color-coated steel plates. This fully automatic machine simplifies operations with the ease of remote control, ensuring efficiency in production. It is ideal for a variety of applications, including industrial and civil buildings, warehouses, and large-span steel structures. With its lightweight design, high strength, and vibrant color options, this machine guarantees quick construction, excellent seismic resistance, and fireproof and rainproof capabilities, making it a reliable choice for any construction project.
Specifications
| No. |
Item |
Description |
| 1 |
Material thickness |
0.18-0.3mm |
| 2 |
Max length |
3600/4300m |
| 3 |
Roll station |
2 stations |
| 4 |
Main power |
11KW |
| 5 |
Feeding roller diameter |
460mm |
| 6 |
Vertical roller diameter |
350mm |
| 7 |
Diameter of shaft |
70mm |
Additional Information
Machine Details:
– Max length: 3600mm
– Feeding roller diameter: 460mm
– Roller stations: 2 stations
– Vertical roller diameter: 350mm, material: 45# forge steel
– Motor: 11kw
– Voltage: 380V 50Hz 3 phases
– Diameter of shaft: 70mm
Packing & Delivery
| Packing |
Description |
| 1. |

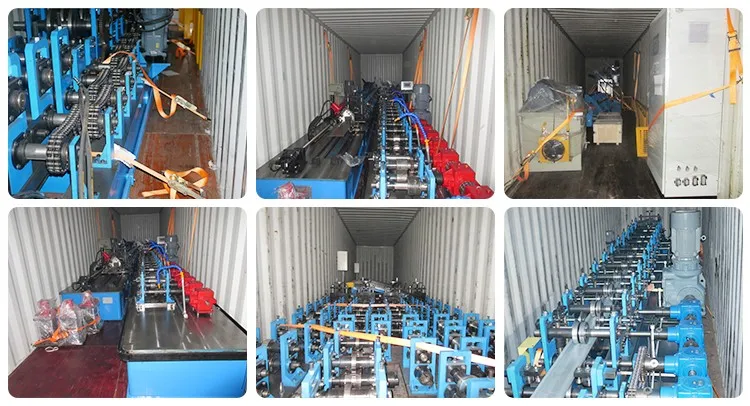

We wrap the machine with film, then cover it with a wooden case. |
| 2. |
Wooden cases and pallets will be used based on different models and shipping methods. |
| 3. |
Customized package solutions offered as per customer requirements. |
| Delivery |
Description |
| 1. |
Sea shipping. |
| 2. |
Air shipping for sampling. |
| 3. |
Train shipping for landlocked countries serviced by CRExpress Europeblock train ferry. |
