corrugated forming machine iron sheet rolling machine automatic roll forming machine pric
Inquire NowProduct Description

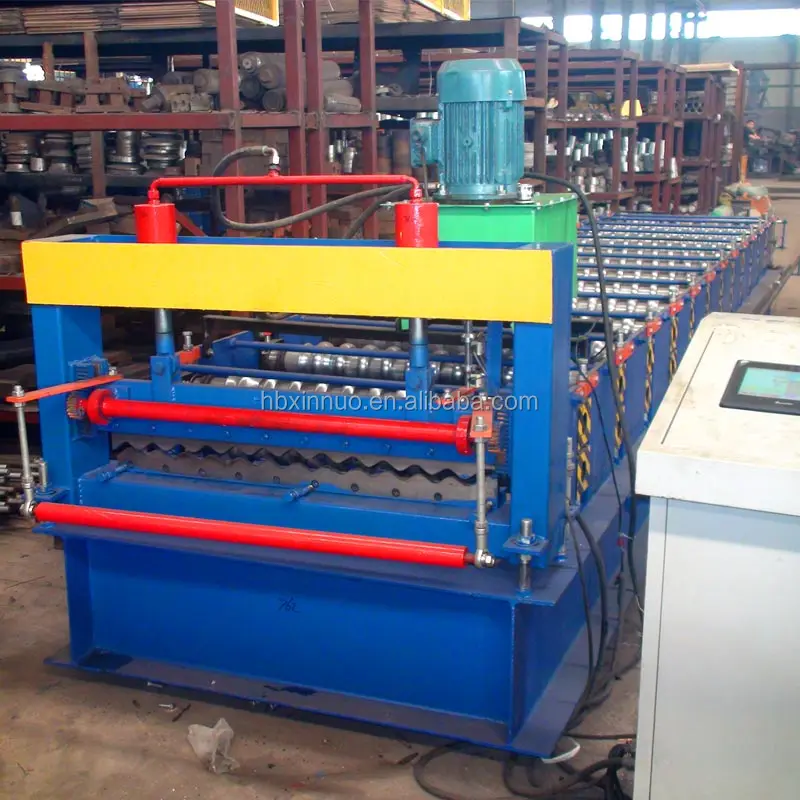

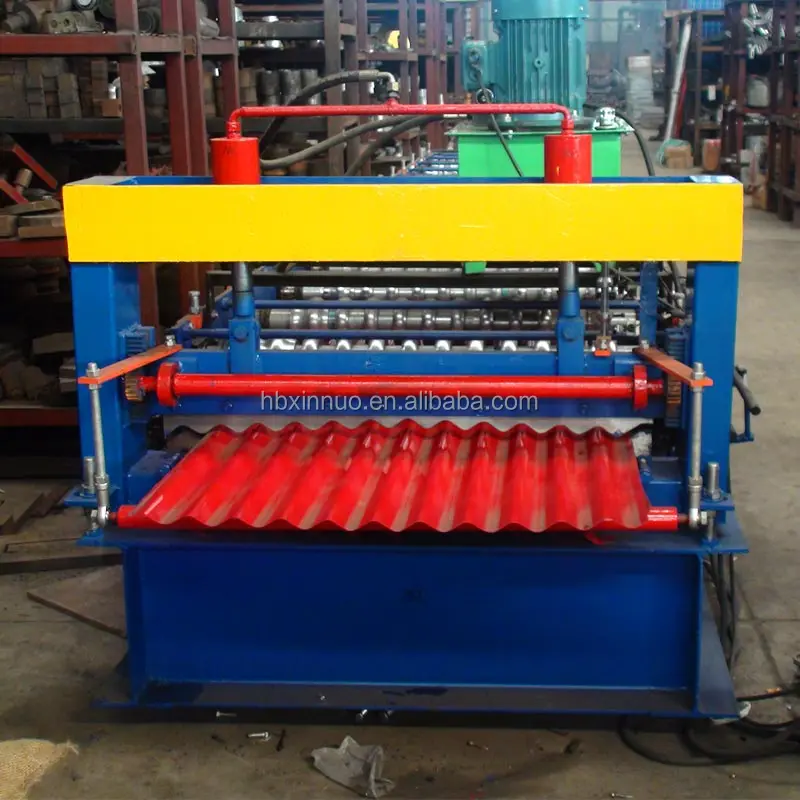

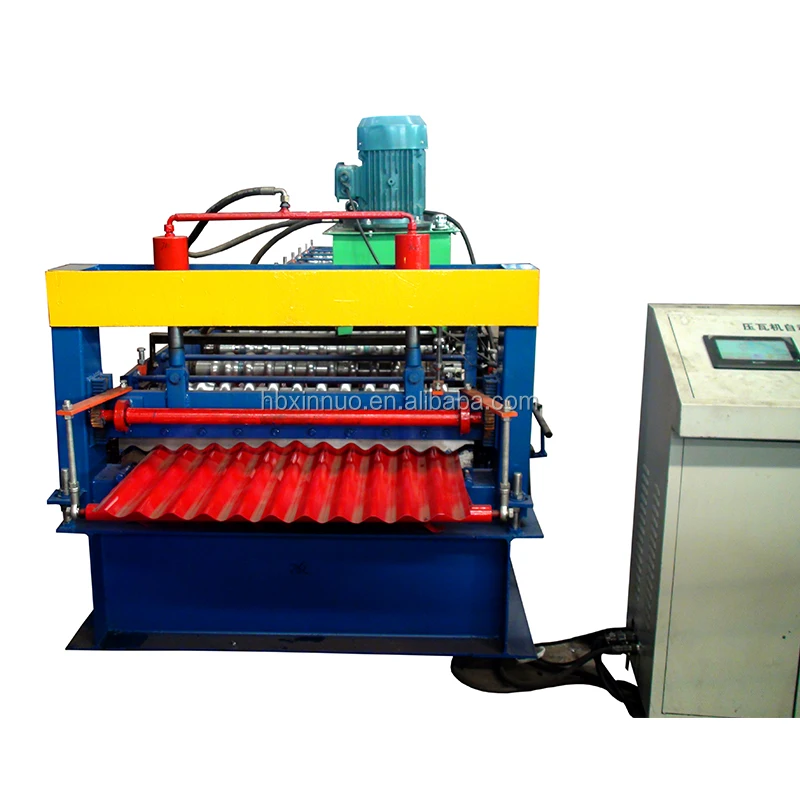

The Corrugated Forming Machine is a highly efficient iron sheet rolling machine designed for automatic roll forming of corrugated building panels. This robust machine is ideal for processing color steel plates, offering precision and speed in production. With a productivity rate of 8-12 meters per minute, it is engineered to handle various thicknesses of plates ranging from 0.16mm to 0.3mm, making it versatile for different manufacturing needs.

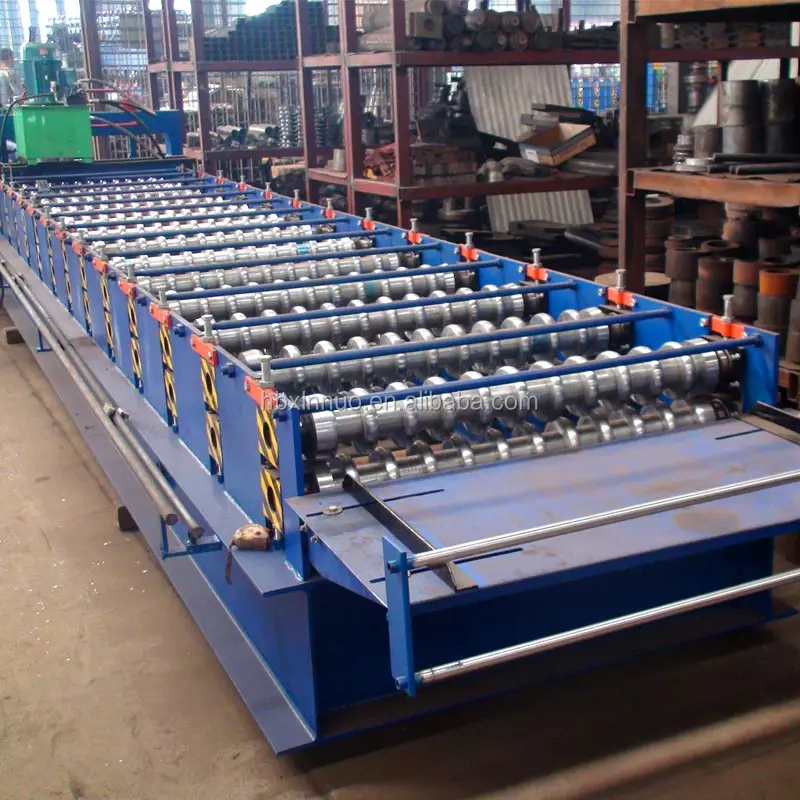

Equipped with a manual de-coiler that can load up to 5 tons of raw material, this machine features 20 rows of rollers with an 80mm diameter, ensuring consistent and high-quality forming. The cutting method utilizes hydraulic mould cutting, and the machine is controlled by a reliable Delta PLC control system, ensuring ease of operation and maintenance. Built with a sturdy 300 H steel main structure, it provides durability and stability during operation.
Specifications
| Attribute | Details |
|---|---|
| Width of the Plate | 914mm |
| Thickness of the Plate | 0.16-0.3mm |
| Rollers for Forming | 20 rows |
| Diameter of the Roller | 80mm |
| Rolling Material | Carbon Steel 45# |
| Main Motor Power | 4kw |
| Productivity | 8-12m/min |
| Cutting Method | Hydraulic mould cutting |
| Material of the Cutting Blade | Cr12 |
| Hydraulic Cutting Power | 3kw |
| Processing Precision | Within 1.00mm |
| Control System | Delta PLC control |
| Side Panel of Machine | 14mm |
| Main Structure of the Machine | 300 H steel |
| Weight | About 4.6T |
| Dimensions | 7.5*1.6*1.2m |
| Voltage | 380V 50Hz 3 phases (changeable as needed) |
| Certificate | CE/ISO |
Additional Information
Guarantee: 12 Months guarantee. If any part of the machine is broken, we will supply the best part; however, if the damaged parts are due to operator error, the buyer will pay for the shipping fee.
After-sale Service: We send a technician to your country to fix the machine. The buyer should bear all costs including visa, round-trip ticket, suitable accommodation, and a salary of $100/day for the technician.
