corrugated forming machine iron sheet rolling machine automatic roll forming machine pric
Inquire NowDescription

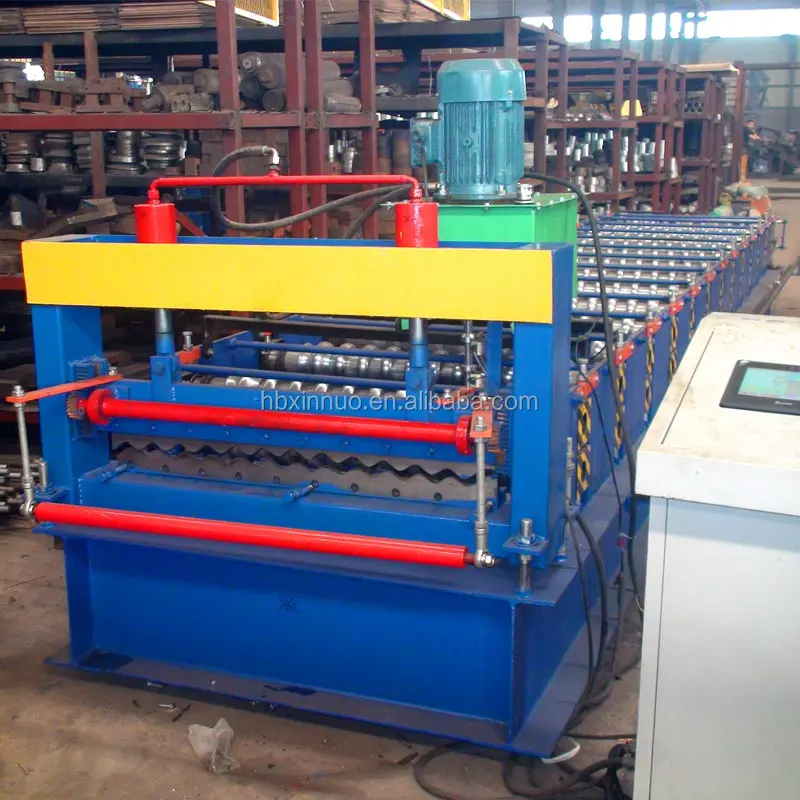

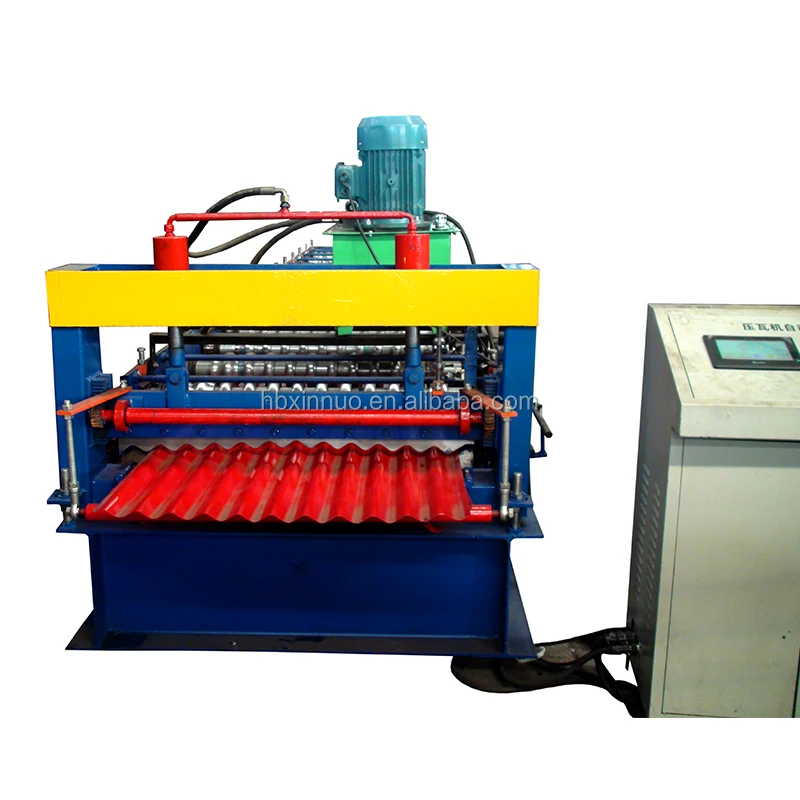

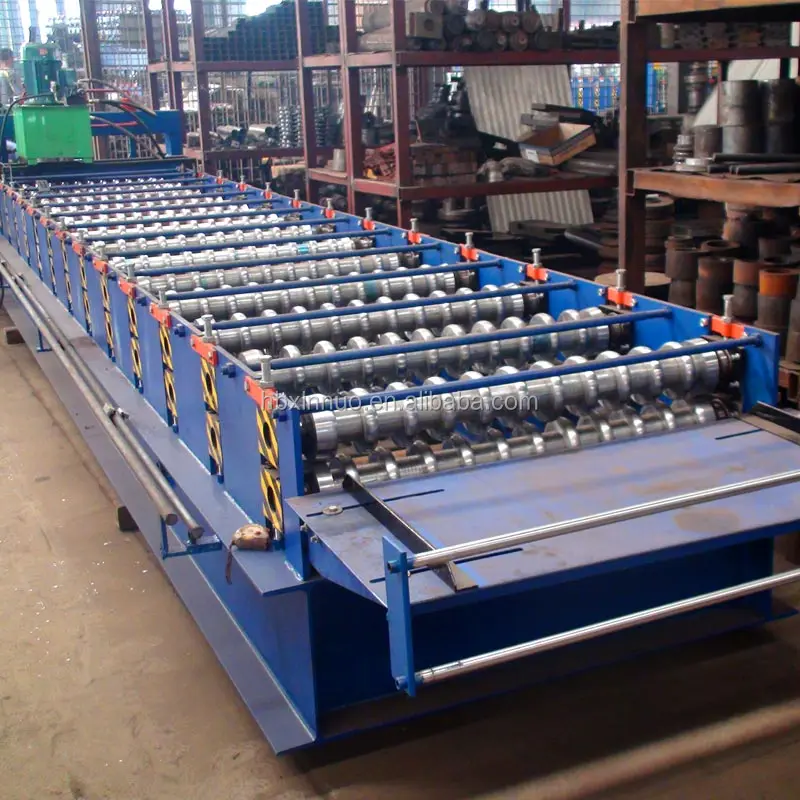

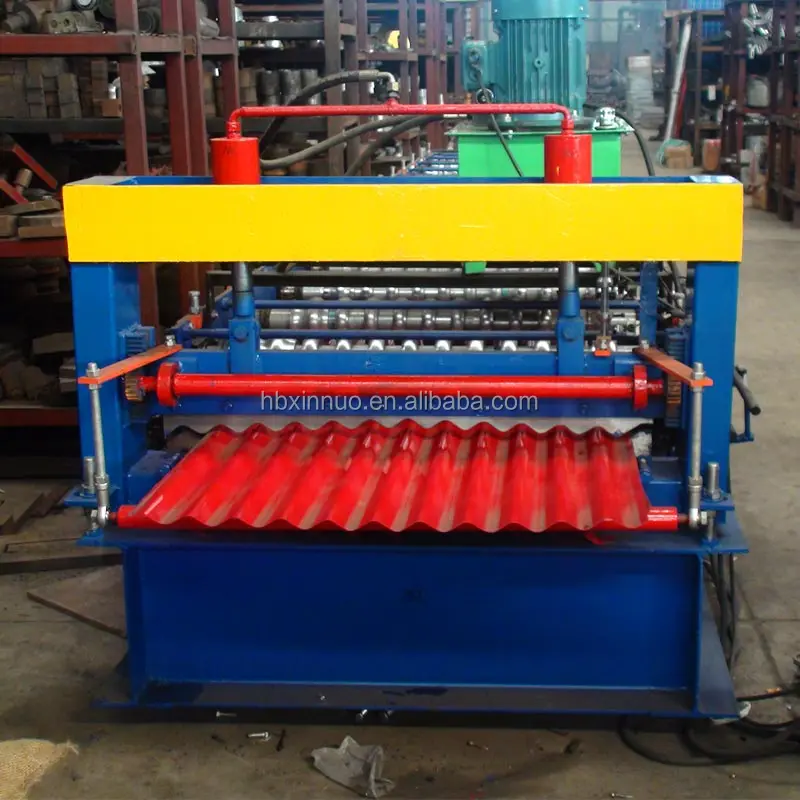

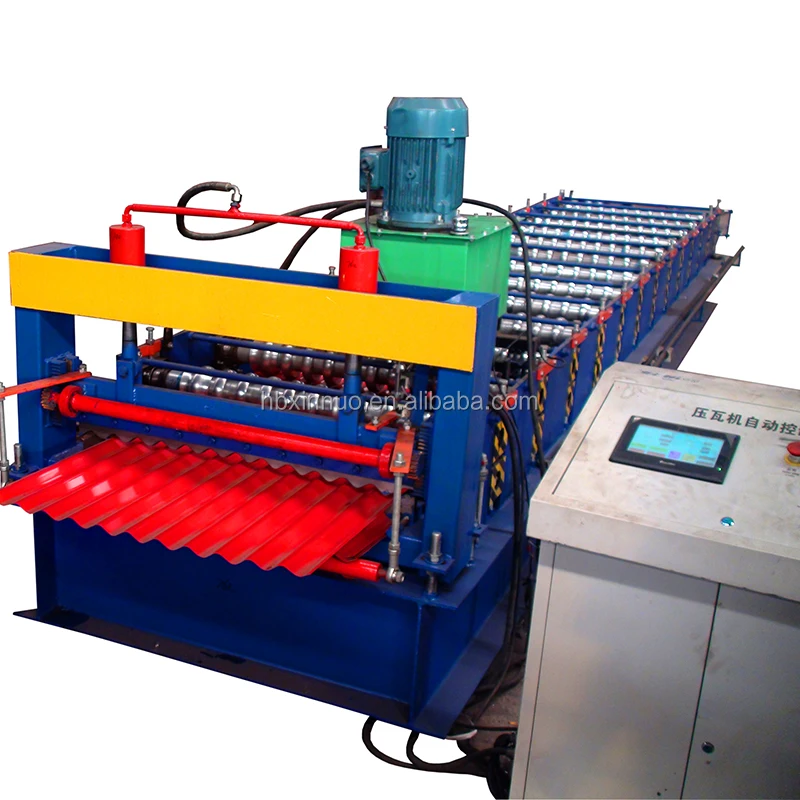

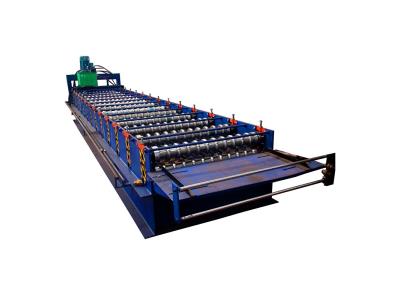

The Corrugated Forming Machine is an advanced iron sheet rolling machine designed for high-efficiency production of corrugated building panels. This automatic roll forming machine is perfect for processing color steel plates with a width of 914mm and thickness ranging from 0.16mm to 0.3mm. Built for durability and precision, it features a manual de-coiler that can handle up to 5 tons of raw material, ensuring seamless operation. The machine is equipped with 20 forming rollers and operates at a remarkable speed of 8-12 meters per minute. With a powerful 4kw main motor and hydraulic mould cutting mechanism, it guarantees high productivity and precision within 1.00mm. The robust structure is made from 300 H steel, ensuring longevity and reliability in industrial applications.
Specifications
| Attribute | Details |
|---|---|
| Suitable to process | Color steel plate |
| Width of the plate | 914mm |
| Thickness of the plate | 0.16-0.3mm |
| De-coiler | Manual, can load 5 tons raw material |
| Rollers for forming | 20 rows |
| Diameter of the roller | 80mm |
| Rolling material | Carbon Steel 45# |
| Main motor power | 4kw |
| Productivity | 8-12m/min |
| Cutting method | Hydraulic mould cutting |
| Material of the cutting blade | Cr12 |
| Hydraulic cutting power | 3kw |
| Processing precision | Within 1.00mm |
| Control system | Delta PLC control |
| Side panel of machine | 14mm |
| Main structure of the machine | 300 H steel |
| Weight | About 4.6T |
| Dimensions | 7.5*1.6*1.2m |
| Voltage | 380V 50Hz 3phases (changeable as needed) |
| Certificate | CE/ISO |
Additional Information
Guarantee: 12 months guarantee. If any part of the machine is broken, we will supply the best part. However, if the damaged parts are due to operating errors, the buyer will pay for the shipping fee.
After-sale service: We send technicians to your country to fix the machine. The buyer should bear all costs, including visa, round-trip ticket, suitable accommodation, and a salary of $100/day for the technician.
