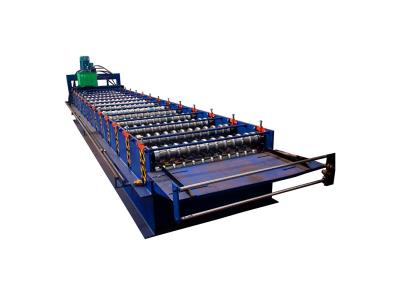

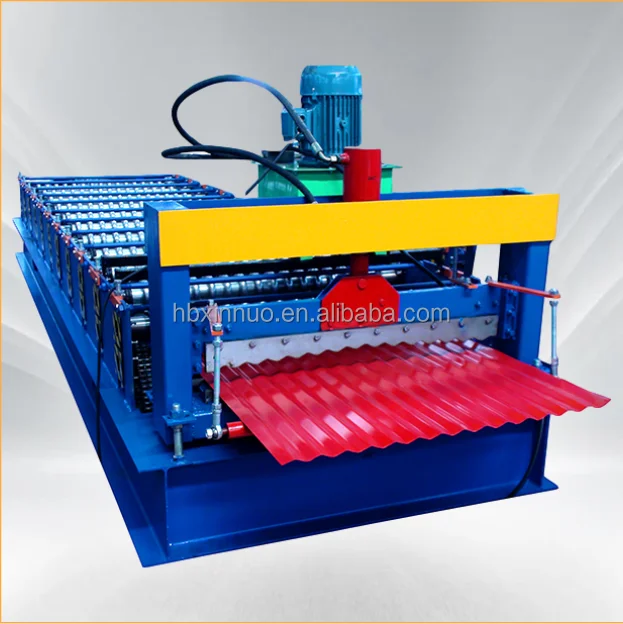

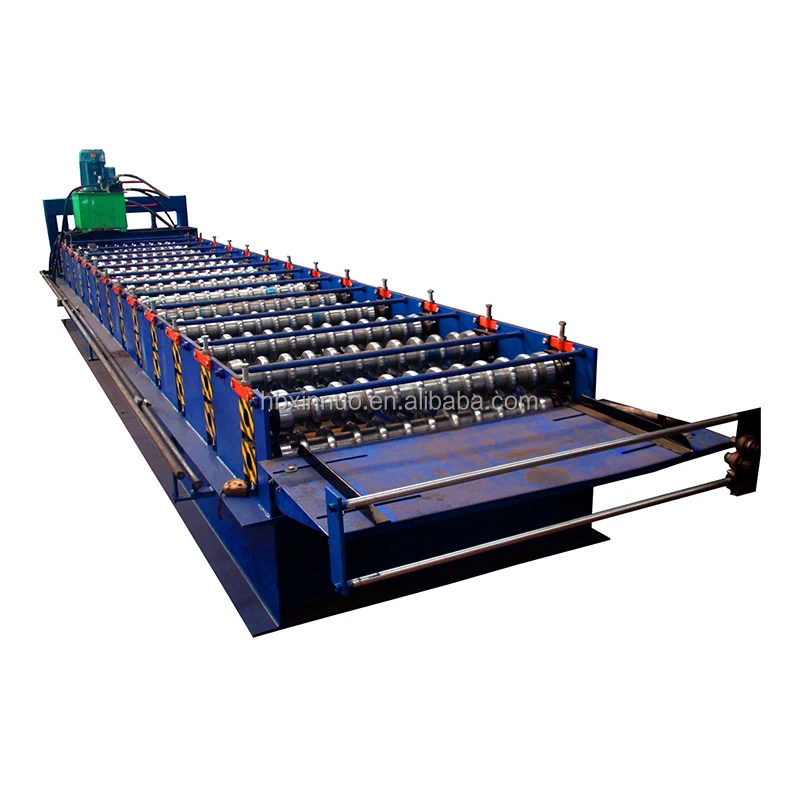

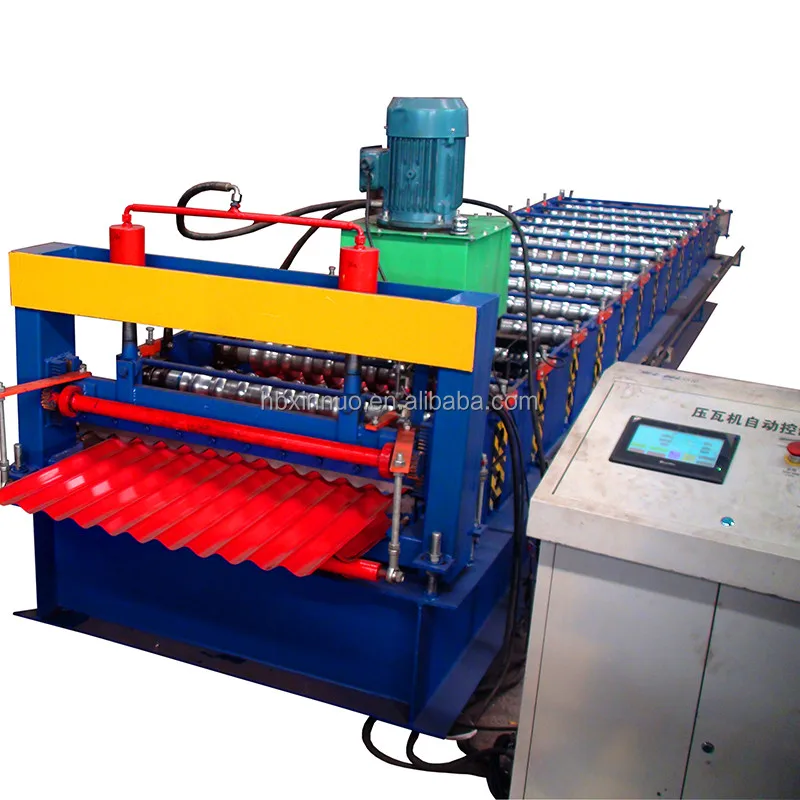

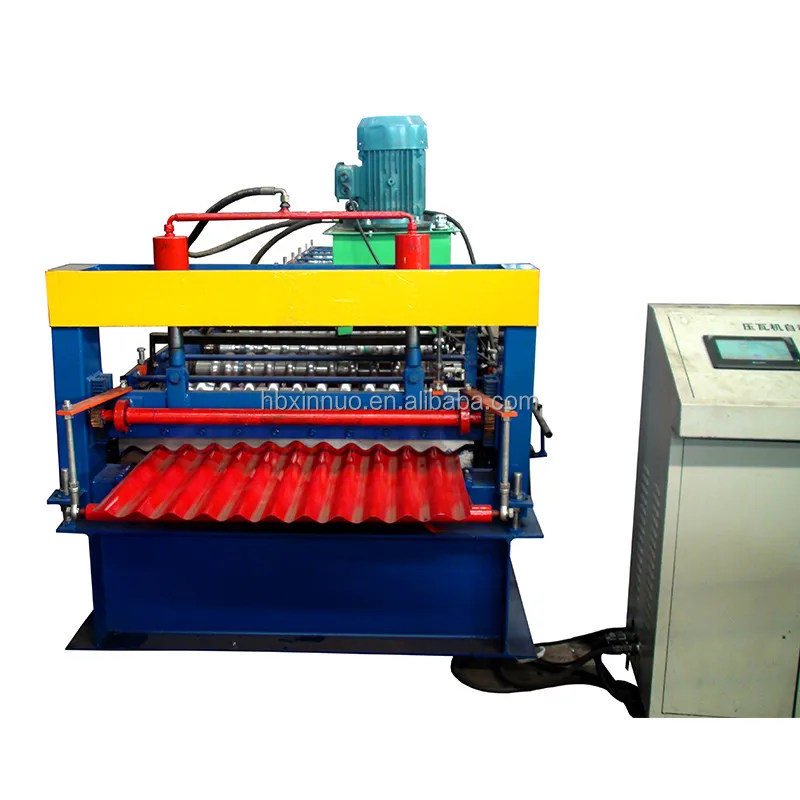

corrugated iron sheet making aluzinc roll forming machine
Inquire NowDescription
The Corrugated Iron Sheet Making Aluzinc Roll Forming Machine is designed for high-efficiency production of corrugated steel sheets. This advanced machinery is capable of processing color steel plates, providing a robust solution for manufacturing durable and aesthetically pleasing roofing and wall panels. With features like a manual de-coiler that can hold up to 5 tons of raw material and hydraulic mould cutting for precise dimensions, this machine stands out in the market. Its user-friendly Delta PLC control system ensures ease of operation, making it a valuable addition to any production facility.
Specifications
| Attribute | Details |
|---|---|
| Suitable to process | Color steel plate |
| Width of the plate | 1000mm |
| Thickness of the plate | 0.3-0.8mm |
| De-coiler | Manual, can load 5 tons raw material |
| Rollers for forming | 14 rows |
| Diameter of the roller | 80mm |
| Rolling material | Carbon Steel 45# |
| Main motor power | 4kw |
| Productivity | 8-12m/min |
| Cutting method | Hydraulic mould cutting |
| Material of the cutting blade | Cr12 |
| Hydraulic cutting power | 3kw |
| Processing precision | Within 1.00mm |
| Control system | Delta PLC control |
| Side panel of machine | 14mm |
| Main structure of the machine | 300 H steel |
| Weight | About 4.6T |
| Dimensions | 7.5*1.6*1.2m |
| Voltage | 380V 50Hz 3phases (changeable as needed) |
| Certificate | CE/ISO |
Additional Information
Packing Details: The main machine is nude in the container, while the computer control box is packed with wooden packaging.
Delivery Detail: 20 days.

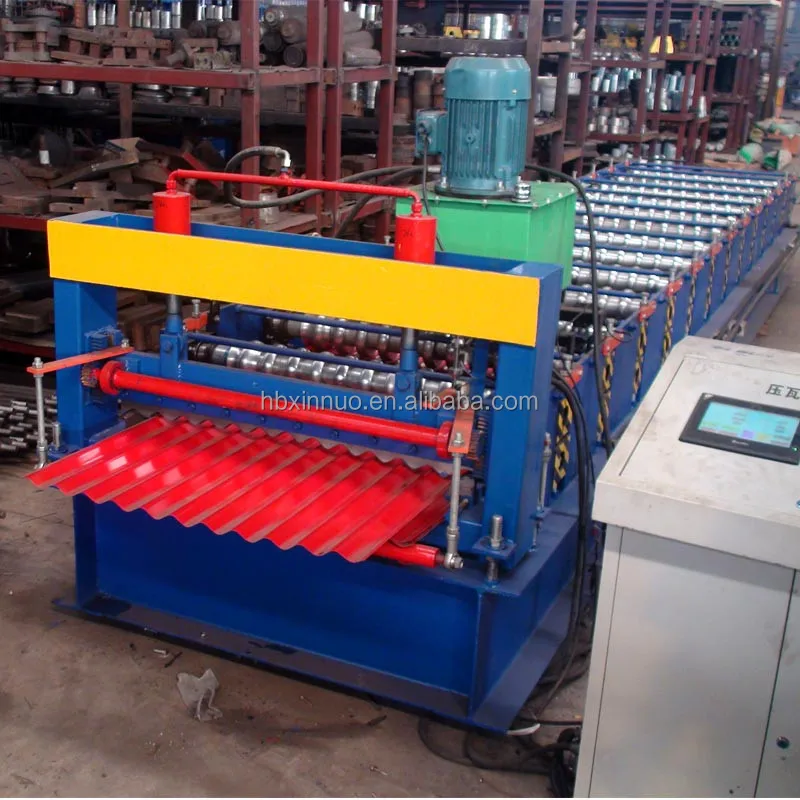

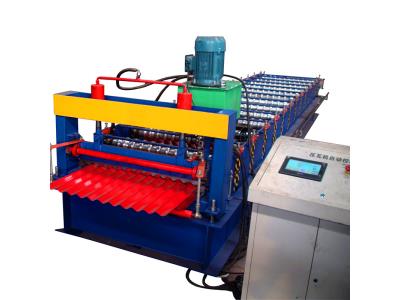

Images
