1. the advantage of corrugated sheet rolling machine
it has reasinable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the costomer with limit area or site operation.
2. Main Parameter and specification of corrugated sheet rolling machine
We design each machine according to user requirement.
Below techinical parameters can be adjusted if needed.
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
1000mm |
|
3 |
Thickness of the plate |
0.3-0.8mm |
|
4 |
De-coiler |
Manual one, can load 5 tons raw material |
|
5 |
Rollers for forming |
14 rows |
|
6 |
Diameter of the roller |
80mm |
|
7 |
Rolling material |
Carbon Steel 45# |
|
8 |
Main motor power |
4kw |
|
9 |
Productivity |
8-12m/min |
|
10 |
Cutting method |
Hydraulic mould cutting |
|
11 |
Material of the cutting blade |
Cr12 |
|
12 |
Hydraulic cutting power |
3kw |
|
13 |
Processing precision |
Within 1.00mm |
|
14 |
Control system |
Delta PLC control |
|
15 |

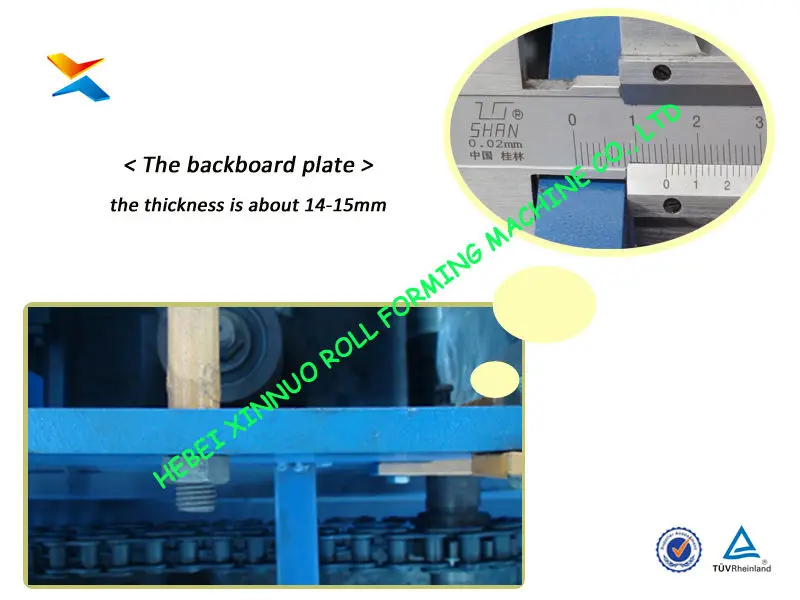

Side panel of machine |
14mm |
|
16 |
Main structure of the machine |
300 H steel |
|
17 |
Weight |
About 4.6T |
|
18 |
Dimensions |
7.5*1.6*1.2m |
|
19 |
Voltage |
380V 50Hz 3phases(changeable as needs) |
|
20 |
Certificate |
CE/ISO |

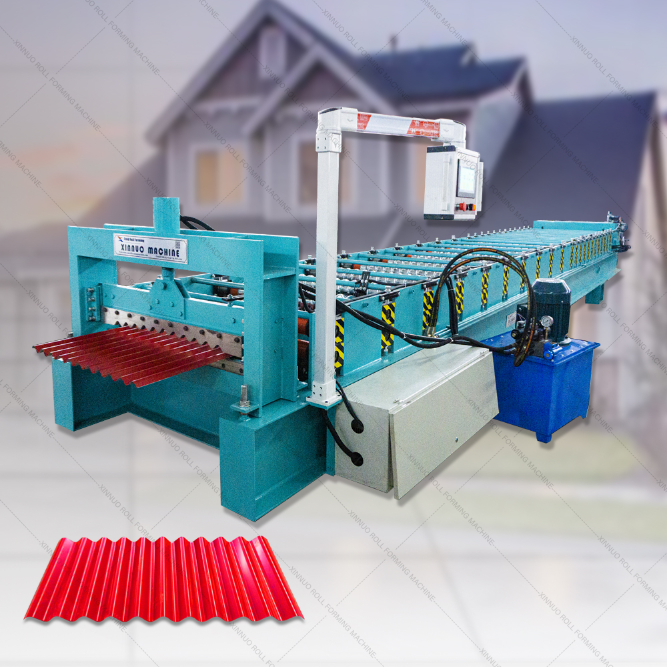

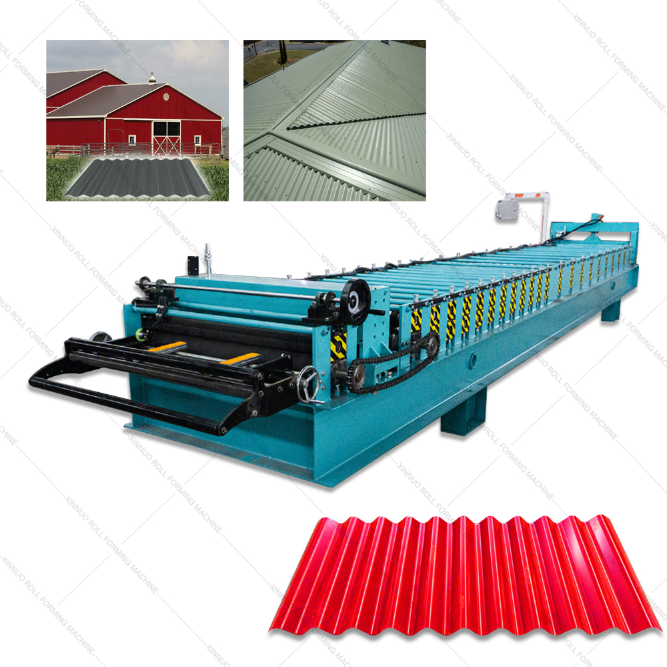

3.the picture of corrugated roll forming machine
4.Equipment components:

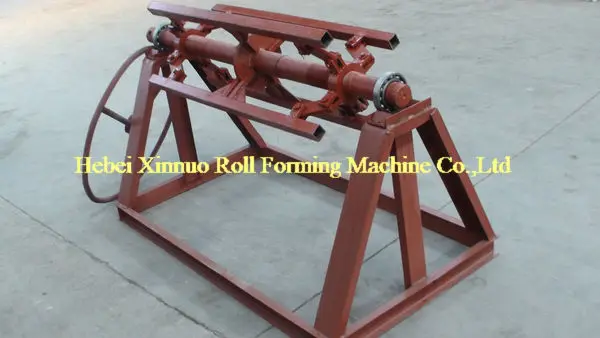

Man-made uncoiler, Roll forming machine,

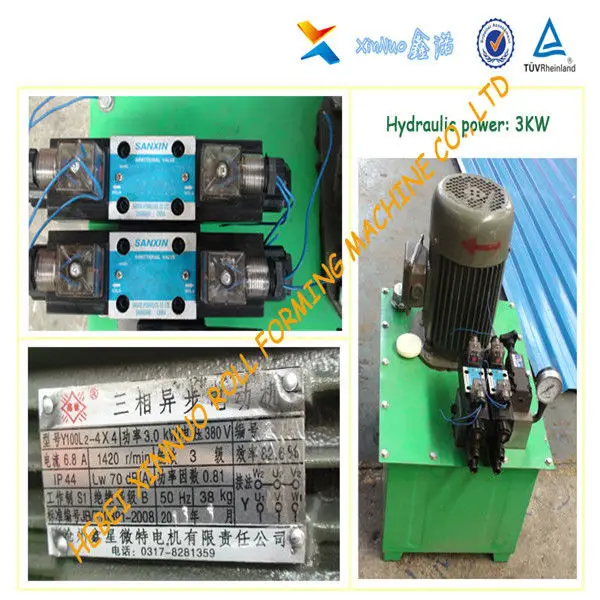

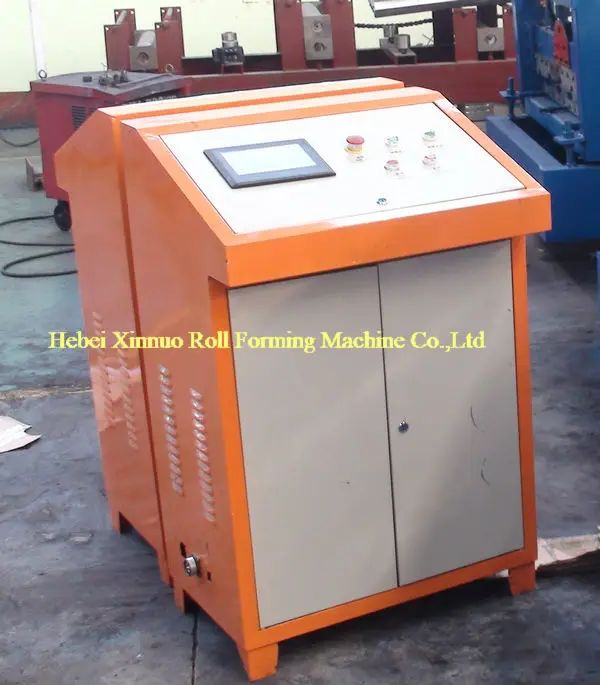

computer control system, hydraulic control system, cutting part

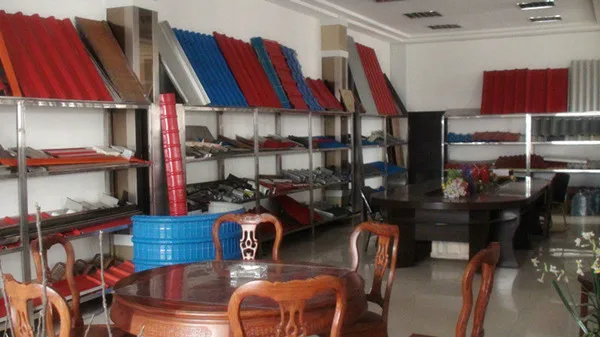

5.Company Information
Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
