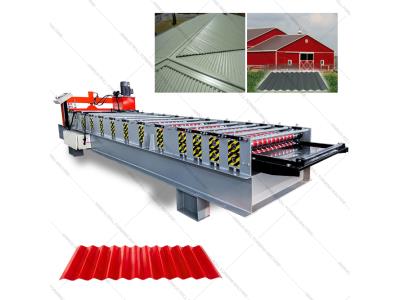

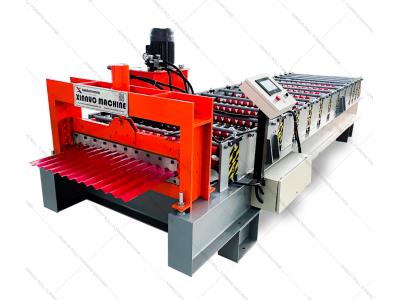

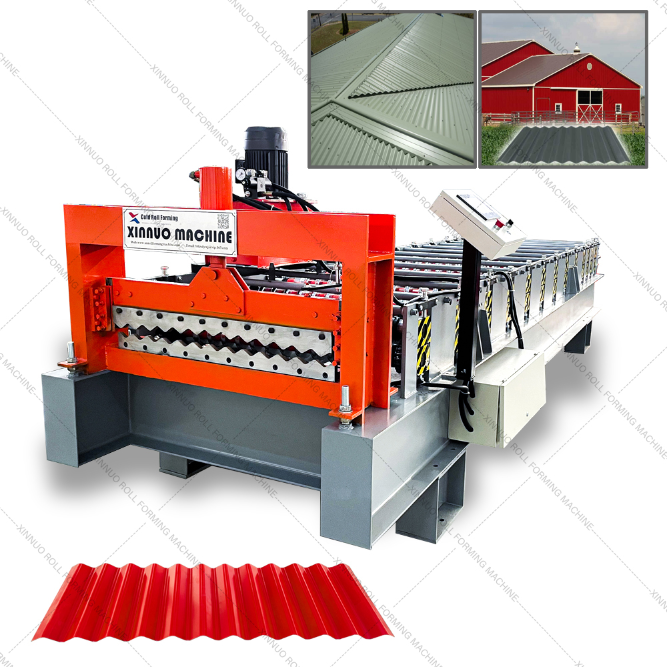

Corrugated Roof Profile Making Machine Sheet Metal Roll Forming Machinery
Inquire NowDescription
The Corrugated Roof Profile Making Machine is designed for the efficient production of full hard 0.15mm GI corrugated metal roofing sheets. This advanced sheet metal roll forming machinery combines precision engineering with robust construction, making it an ideal choice for manufacturers looking to streamline their roofing sheet production. The machine features a user-friendly PLC control system and a powerful 3 kW motor, ensuring smooth operation and high-quality output. Its versatility allows for the processing of various thicknesses and widths, making it suitable for a wide range of applications in the construction industry.
Specifications
| Configurations | Manual Uncoiler, Guiding Platform, Coil Strip Leveler, Main Machine Of Roll Forming, Electro-Motor, Cutting Device, Hydraulic Station, PLC Control, Supporter Table |
|---|---|
| Control System | PLC Delta Inverter |
| Main Frame | 250mm H-Beam |
| Main Power | 3 kW |
| Pump Power | 3 kW |
| Power Supply | 380V, 3-Phase, 50Hz |
| Forming Speed | 10m/min |
| Roll Station | 14 stands |
| Roller Diameter | 80mm |
| Hydraulic Pressure | 10-12MPa |
| Forming Size | 988mm |
| Feeding Thickness | 0.3-0.8mm |
| Feeding Width | 1200mm |
| Backboard Thickness | 14mm |
| Chain Size | 20mm |
| Cutter Standard | Cr12 |
| Roller Standard | Cr12 |
| Cr-Plating Size | 0.05mm |
| Overall Size | 7500×1600×1500mm |
| Total Weight | 4T |
Additional Information
For optimal performance, ensure regular maintenance of the machine components and follow the manufacturer’s operational guidelines. This machine comes with a standard warranty, covering manufacturing defects and ensuring reliability in your production line.
