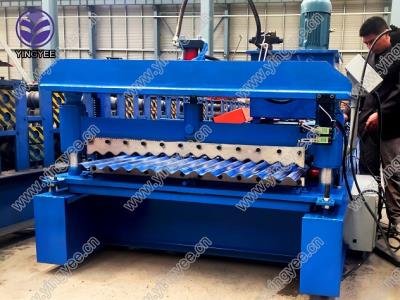

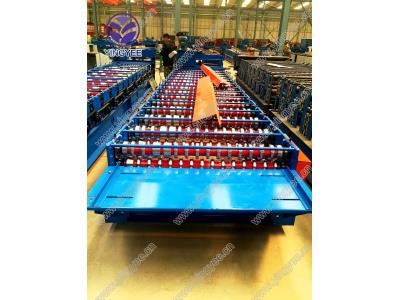

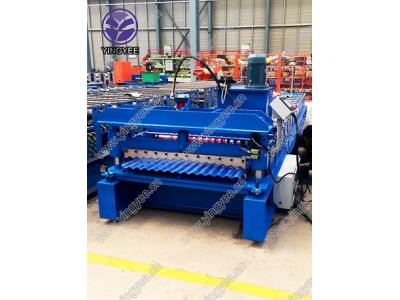

Corrugated roof sheet roll forming machine
Inquire NowDescription
The Corrugated Roof Sheet Roll Forming Machine is an advanced equipment designed for the efficient manufacturing of corrugated roofing sheets. This machine combines robust technology with precision engineering to deliver high-quality products consistently. Ideal for both small-scale and large-scale production, it accommodates various materials including PPGI, GI, and aluminum, providing versatility in roofing solutions.
Key components include a manual coiler, adjustable input equipment, a main roll forming machine with a chromed plate, hydraulic cutting system, hydraulic station, and a PLC control system. This comprehensive assembly ensures seamless operation and outstanding durability, making it a valuable asset for any roofing manufacturing business.
Specifications
| Feature | Specification |
|---|---|
| Matching Material | PPGI/GI/Aluminium |
| Material Thickness | 0.2-0.8mm |
| Power | 7.5kw |
| Forming Speed | 30m/min |
| Width of Plates | According to drawings |
| Input Leveling Equipment | Adjustable |
| Roll Stations | 22 |
| Shaft Material and Diameter | 45# Steel, ￠75mm |
| Tolerance | 10m±1.5mm |
| Way of Drive | Chain Driven |
| Controlling System | PLC |
| Voltage | Depends on client |
| Material of Forming Rollers | 45# Steel, heat-treated and chromed |
| Side Plate | Steel plate with chromed finish |
| Size | Length: 6.7m, Weight: 5 tons |
Additional Information
- Hydraulic Cutting System: Ensures precise sheet cutting.
- PLC Control System: For automated and user-friendly operation.
