corrugated sheet making machine double layer forming machine standing seam metal roofing
Inquire NowDescription

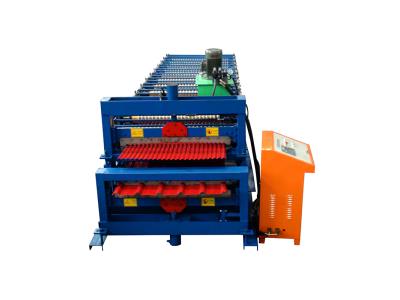

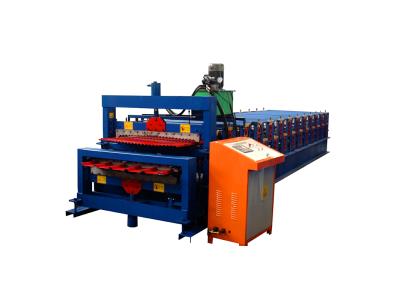

Double Layer Partial Arc Color Steel Roof Tile China Roll Forming Machine is a state-of-the-art solution designed for the efficient production of corrugated sheets and metal roofing. This machine offers versatility, enabling it to process materials such as color steel plates, galvanized sheets, and aluminum coils. With its double-layer forming capability, it maximizes productivity while minimizing operational costs, making it ideal for both small-scale and large-scale manufacturing operations.
Specifications
| Parameter | Description |
|---|---|
| Suitable to process | Color steel plate, galvanized sheet, aluminum coils, etc. |
| Width of the feeding material | 914-1250mm |
| Roller station | 11-18 rows or custom as customer’s requirements |
| Thickness of feeding material | 0.3-0.8mm |
| Productivity | 8-12m/min |
| Rollers’ material | 45# steel |
| Diameter of shaft | 70-80mm |
| Voltage | 380V 50Hz 3phases |
| Wall thickness of main forming machine | 12-18mm steel plate |
| Main forming machine body | 300-400 mm H steel |
| Motor power | 4-7.5 kw |
| Weight | About 5-15T |
| Custom | According to customer’s requirements |
Additional Information
Guarantee: 12-month guarantee. If a part of the machine is broken, the best part will be supplied. However, if the damaged parts are due to operational error, the buyer will be responsible for shipping fees.
After-sale service: Technicians can be sent to your country to fix the machine at the buyer’s expense, including visa, round-trip ticket, accommodation, and a salary of $100/day.
