Description

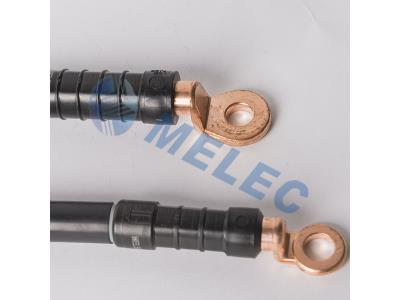

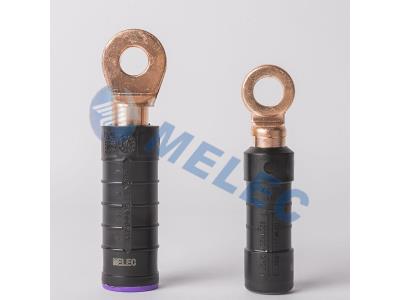

CPTAU Pre-Insulated Bimetal Lug is a high-performance solution designed to create reliable connections between LV-ABC cables and various electrical equipment. Engineered for optimal efficiency, these lugs feature a robust construction that ensures durability and longevity in demanding environments.
These bimetal lugs are crafted from high-quality materials, offering excellent conductivity and resistance to corrosion. The insulating sheath is made from weather-resistant and anti-UV material, providing additional protection against environmental factors.

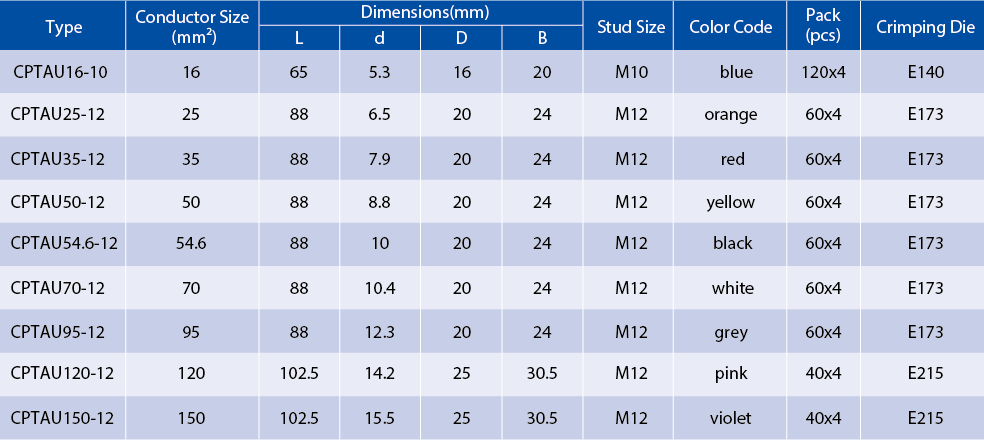

Specifications
| Material | Cu ≥ 99.9%, Al ≥ 99.5% |
|---|---|
| Insulating Sheath | Weather resistant and anti-UV material |
| Standards | EN 50483-4, NF C 33-021 |
Additional Information
Features of the CPTAU Pre-Insulated Bimetal Lug include:
- Clear markings on the insulating sheath for crimping die size and sequence, conductor cross-sectional area, and stripping length.
- Color-coded elastomeric caps for easy identification of conductor cross-sectional area.
- Elastomeric cap and pre-filled silicone grease for superior waterproof performance.
- Requires stripping of cable insulation before insertion.
- Tested for watertightness.
