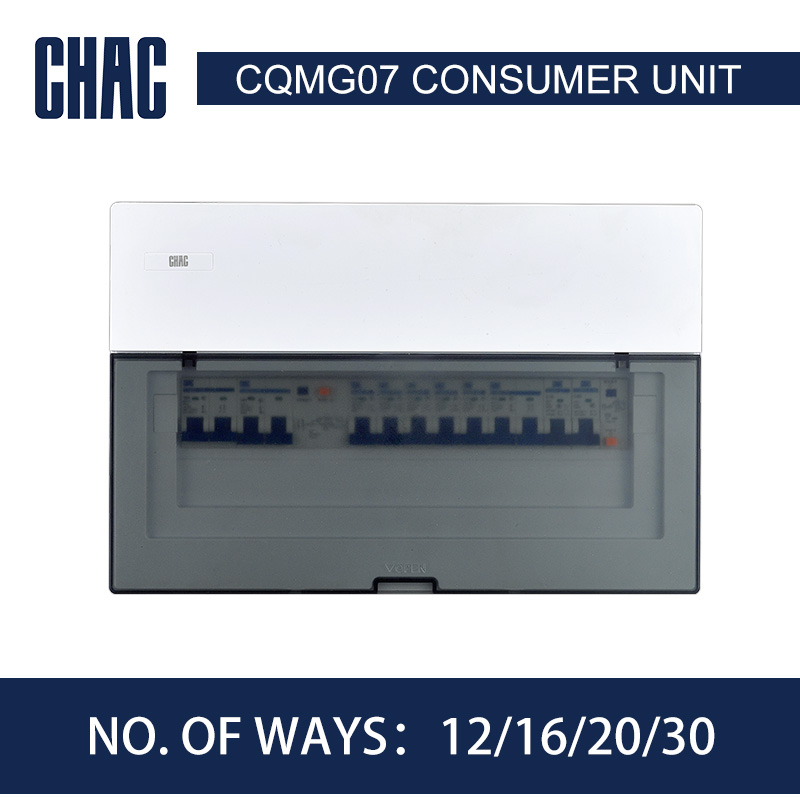

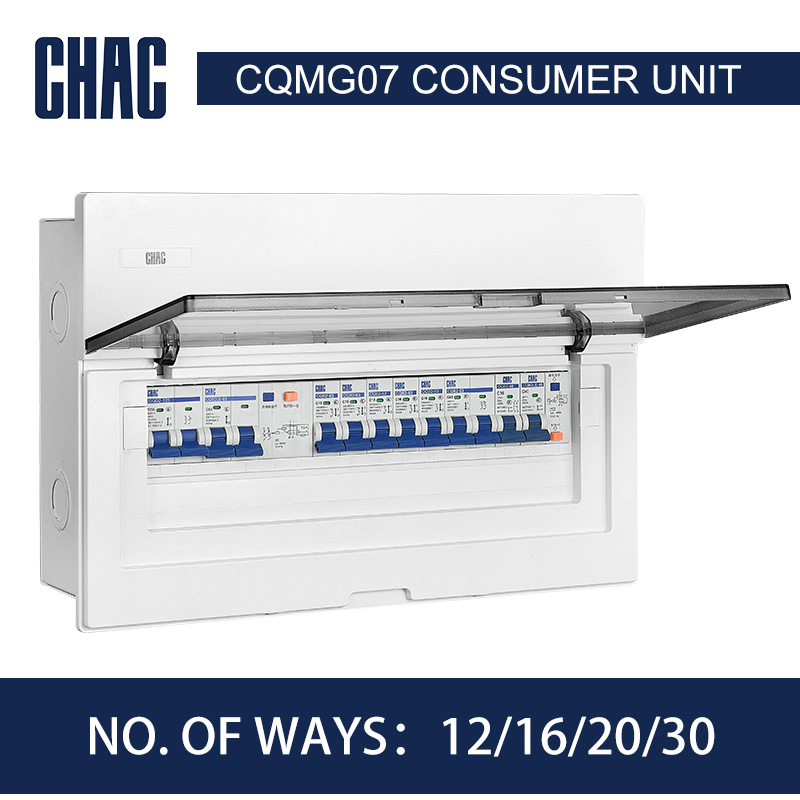

CQMG07 Consumer Unit
Inquire NowDescription
The CQMG07 Consumer Unit is a robust and versatile electrical enclosure designed for residential and commercial applications. It serves as the endpoint of power lines operating at AC 50Hz/60Hz with a rated voltage of 230V/400V, making it ideal for use in diverse settings, including families, high-rise buildings, stations, airports, shopping malls, hospitals, and more. Crafted from flame-retardant polycarbonate materials, this unit offers exceptional impact resistance and insulation, ensuring safety and durability. Its compact design is complemented by low smoke and fume paint, and it is available in configurations of 12, 16, 20, and 30 modules, allowing for tailored installations. The raised and removable DIN rail and busbar assembly, along with factory-fitted incoming devices, significantly reduce installation time, making it a user-friendly choice for electricians.
Specifications
| Attribute | Details |
|---|---|
| Rated frequency | 50Hz / 60Hz |
| No. of Ways | 12, 16, 20, 30 |
| Rated current | 230/400V |
| Door Material | Flame Retardant PC |
| Enclosure material | High quality cold rolled steel sheet (surface spraying) |
| Row type | Single row/Duplex row |
| Max. Load | 125A |
| Compliant standards | GB/T 7251.3-2006, JB/T 7121-93 |
Additional Information
Installation conditions:
- Ambient temperature: -5 to 40°C, with an average not exceeding ±35°C.
- Altitude: Less than 2000m.
- Pollution degree: 2.
- Overvoltage Category: II & III.
- Installation type: Surface-mounted.
