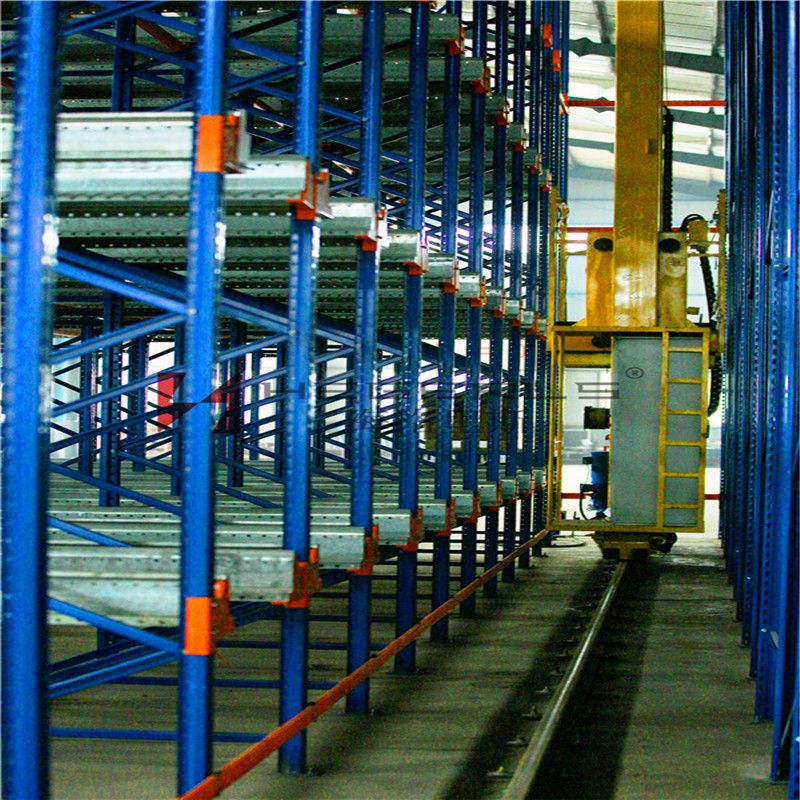

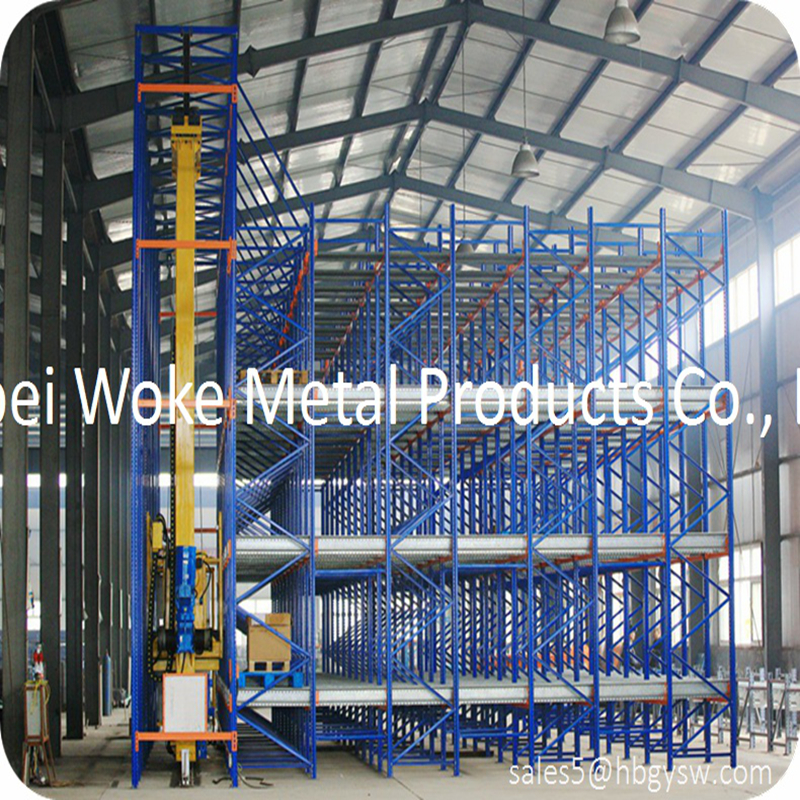

Crane Stacker FIFO Storage Automated Racking System
Inquire Now#### **Description**
The Crane Stacker FIFO Storage Automated Racking System is a cutting-edge solution designed for efficient warehouse management and optimized space utilization. This system allows for the individual location, access, and movement of pallets, enhancing the handling of diverse palletized goods. Its infinitely adjustable design accommodates a wide range of options and components tailored to meet specialized storage needs. The robust structure maximizes space use while ensuring easy product accessibility, and its strength and rigidity prevent compression damage to stored goods. Notably, the bottom level of pallets can be stored directly on the floor, reducing overall structural costs.
#### **Specifications**
| Feature | Description |
|---|---|
| Load Capacity & Dimension | Loading capacity: 500-4,000 kgs UDL/beam level; Height: 1,000-11,000mm; Depth: 400-1,500mm; Length: 1,500-3,300mm; Special sizes available. |
| Main Parts Specs | Upright models: 90*60*1.5/2.0 mm, 100*75*2.0/2.5 mm, 120*90*2.0/2.5 mm; Box beams: Square Tube and double C shape options available. |
| Material | High-quality steel from BAO Steel Co. Ltd. |
| Finish | High-quality Powder Coating Finish. |
| Quick Delivery | Within 25 days for ordinary order quantities. |
| ISO Certified | Designed and manufactured to meet various international standards. |
#### **Additional Information**
To receive a quotation, please provide the following details:
1) Size of your warehouse
2) Full details of size L*D*H
3) Quantity of bays required
4) Number of layers desired
5) Loading capacity of each layer
6) Required RAL color
7) Drawing (if available)
