Description

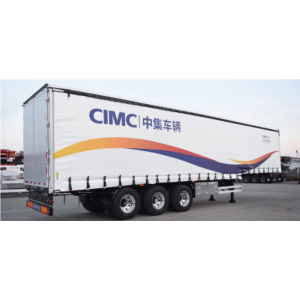

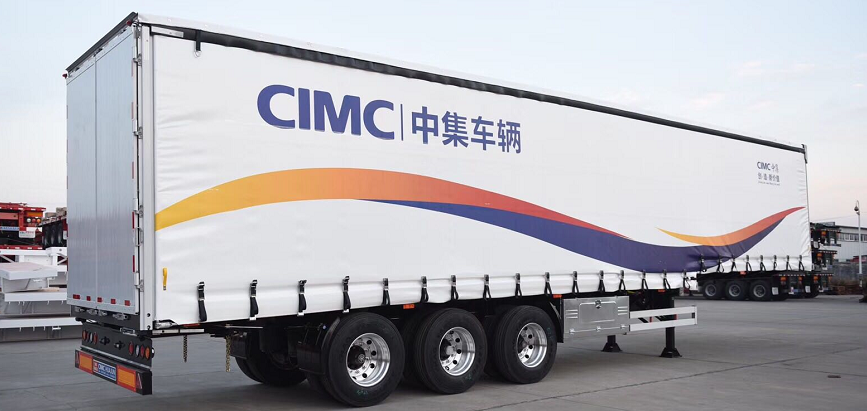

The Curtain Sider is a robust and versatile transport solution designed for efficiency and durability. With an impressive length of approximately 13,000 mm and a width of 2,500 mm, this trailer is engineered to accommodate various cargo types while ensuring maximum stability. The height of the box reaches 2,300 mm, providing ample loading space, while the platform features a 4mm thick flat floor that enhances accessibility. Constructed from high-quality Q345 carbon steel, the Curtain Sider boasts a maximum payload capacity of approximately 40,000 kg, making it ideal for heavy-duty transport needs.

It is equipped with a JOST 3.5’’ bolting king pin for enhanced coupling strength, and its two-speed landing gear (Type: TFOC) ensures easy maneuverability. For optimal load distribution, the heavy-duty leaf-spring suspension system consists of 10 pieces, providing smooth transit even with maximum loads. The trailer is fitted with reliable FUWA axles rated at 16T/3, ensuring durability on the road. Safety and performance are prioritized with a dual air brake system featuring a WABCO relay valve and ABS brake system, along with Type 30/30 brake chambers on all axles.

Specifications

Additional Information

• Ideal for transporting heavy loads with enhanced safety features.
• Designed for efficiency in loading and unloading operations.
