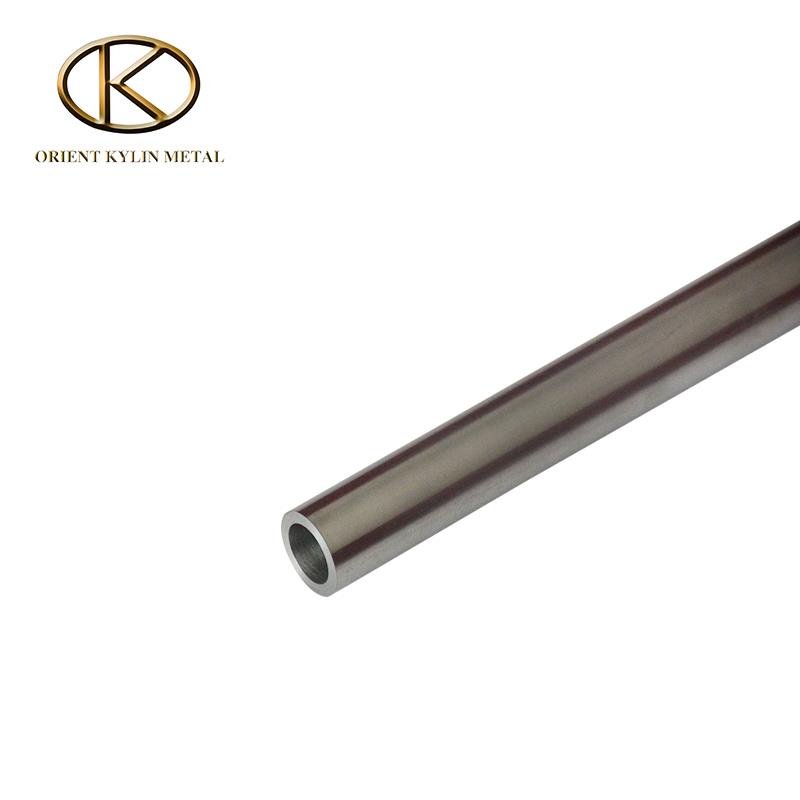

Customized Size Polished Surface Tungsten Tube W Pipe for Thermal Protection Tube
Inquire NowDescription
Introducing the Customized Size Polished Surface Tungsten Tube W Pipe, expertly designed for thermal protection applications. This high-quality tungsten pipe is crafted with a minimum purity of 99.95%, ensuring exceptional performance and durability. Known for its silver gray metallic luster, this tungsten tube is not only visually appealing but also engineered for high temperature and corrosion resistance, making it ideal for use in thermocouple protection tubes, sapphire crystal furnaces, and high-temperature furnaces.
The production processes, which include isostatic pressing, IF induction sintering, CNC vertical turning, CNC milling, coreless grinding, and wire cutting, result in high-precision tubes with excellent surface finishes and dimensions tailored to customer requirements.
Specifications
| Commodity Name | Pure tungsten tube/pipe |
|---|---|
| Purity | W ≥99.95% |
| Density | 18.8 g/cm³ |
| Specification | According to customer’s requirements |
| Surface | Silver gray metallic luster |
| Properties | High temperature resistance, corrosion resistance, high strength, high melting point |
| Usage | Thermocouple protection tube, sapphire crystal furnace, high temperature furnace |
Additional Information
The tungsten tubes are available in two types:
- Type 1: Diameter 8-70 mm, wall thickness >3 mm, maximum length 300 mm, density ≥18.8 g/cm³.
- Type 2: Diameter 70-500 mm, wall thickness >8 mm, maximum length 700 mm, density ≥18.3 g/cm³.
Tungsten tubes contribute stability to the hot zone, and their high thermal inertia helps prolong the growth cycle of sapphire crystals. Please note that while rolled tungsten tubes with a maximum wall thickness of 2 mm exhibit low thermal inertia, they do not provide the same reliability and durability as traditional tungsten tubes.
