easy to operate

Quick Details

• Cutting Width (mm):

• 0 – 1250 mm

• Material Thickness(mm):

• 0.2 – 1.2 mm

• Cutting Speed(m/min):

• 30 – 35

• Coil Weight (T):

• 5

• Leveling Precision(±mm/m):

• 0.5 ±mm/m

• Place of Origin:

• Zhejiang, China

• Brand Name:

• willing

• Condition:

• New

• Voltage:

• 2.5kw

• Rated Power:

• 7.5kw

• Dimension(L*W*H):

• 3880*2150*2000mm

• Weight:

• 1200kg

• Certification:

• CE and ISO9001:2008

• Year:

• 2020

• Key Selling Points:

• Easy to Operate

• Warranty:

• 1 Year

• After-sales Service Provided:

• Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support, Engineers available to service machinery overseas

• After Warranty Service:

• Video technical support, Online support, Field maintenance and repair service

• Applicable Industries:

• Building Material Shops

• Local Service Location:

• None

• Showroom Location:

• None

• Material::

• Galvanized /color steel coil

• Working speed::

• 20m/min

• Type:

• cut to length machine

Packaging & Delivery

• Selling Units:

• Single item

• Single package size:

• 650X130X110 cm

• Single gross weight:

• 4500.000 kg

• Lead Time :

• Quantity(Sets)	1 – 1	>1
  Est. Time(days)	15	To be negotiated

Machines can be designed according to your requirements.

1.Product name

Simple cut to length machine/ line for steel coils

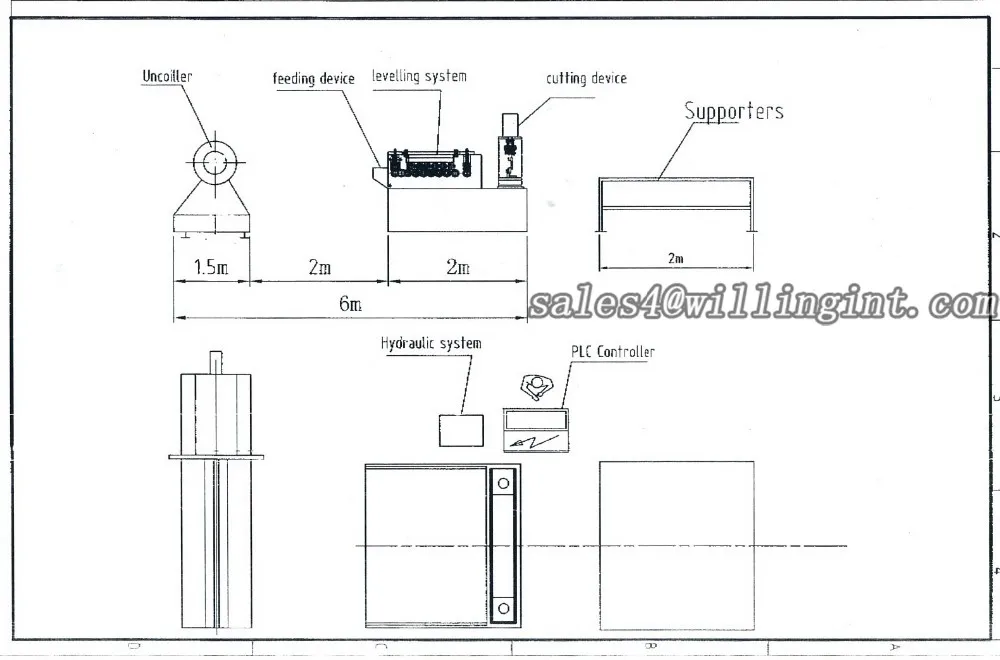

2. Working flow

3. Technical parameters

Material Spec: color steel sheet Q235/33ksi; galvanized steel sheet

Working Speed: 20 m/min.

Power Requirement: main motor power: 5Kw

Hydraulic station power: 2.2Kw

Passive Decoiler: max. capacity: 5000kgs

Type of cutting: length-set cutting

Voltage: as per customer’s request

Thickness: from 0.2mm to 2.0mm

Coil width: max. 1250mm

Dimension of machine: about 2000mm * 1400mm * 1500mm

4. Machine pictures

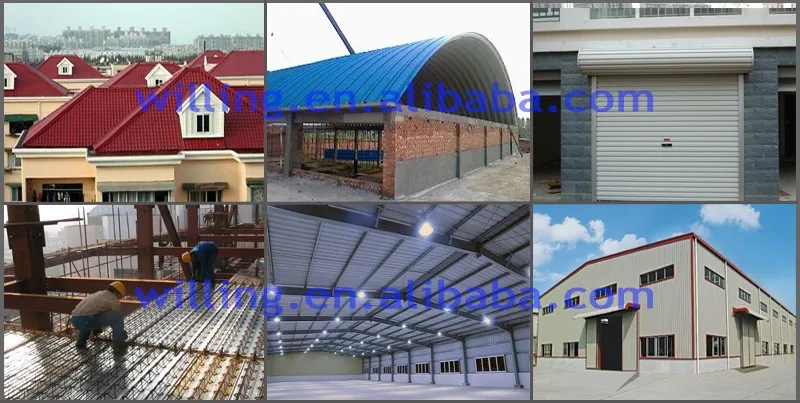

5.Scene application

6.Our factory

7.Introduction
We can design and manufacture various types of machines according to the customers’ requirement and we could provide technical guidance, production, installation, debugging and maintenance service to customers.

8.Terms of payment
a.Payment type: 30% T/T for advance payment and balance should be paid before delivery.
b.Delivery time: 60 days after received advance payment.
c.Guarantee period: 12 months.

9.Installation and training
a.If buyers visit our factory and inspect the machines, we will teach you how to install and operate the machine, and also train buyer’s workers/technicians on live.
b.No visit, we will send you instruction manual and videos to teach you how to install and operate.
c.If buyer needs our technicians to go to their factory, it needs round air ticket, accommodation and etc.

10.After service
a.One year guarantee for the whole machine.
b.24 hours technical support by email, Skype, WhatsApp, Wechat or phone call.
c.Suppose some parts were damaged, we would replace for free by express delivery within warranty period.
