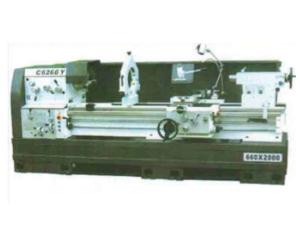

CY Series Big Spindle Presion Lathe
Inquire NowDescription
The CY Series Big Spindle Precision Lathe is engineered for high-performance machining, featuring a precision-ground clutched headstock that ensures superior accuracy. Designed with CE conformity, this lathe includes a safety torque limiting device for the lead screw and an overload clutch for the feed rod, enhancing operational safety. The main spindle is securely supported at two points with precision taper roller bearings, providing stability during use. With a length capacity ranging from 2500mm to 3000mm, this lathe is ideal for various machining tasks. Optional rapid traverse functionality further enhances productivity, making the CY Series a reliable choice for professionals seeking precision and efficiency in their work.
Specifications
| Model | C6 1/2 60Y | C6 1/2 66Y | C6 1/2 80Y | |
|---|---|---|---|---|
| Swing Over Bed | 600mm (23.5″) | 660mm (26″) | 800mm (31.5″) | |
| Swing Over Cross Slide | 375mm (14.75″) | 435mm (17.125″) | 545mm (21.25″) | |
| Swing in Gap | 800mm (31.5″) | 860mm (33.4″) | 1000mm (39″) | |
| Valid Length of Gap | 2800mm (11 ft ±) | |||
| Max. Length of Work Piece | 1000mm (39.3″) | 1500mm (59″) | 2000mm (78.75″) | 3000mm (118″) |
| Width of Bedways | 400mm (15.7″) | |||
| Spindle Nose | ISO-C11 or ISO-D11 | |||
| Spindle Bore | 103mm (4″) | |||
| Range of Spindle Speeds | 18 (ccw/18) 9-1275rpm, 6 (cw/6) 16-816rpm | |||
| Max. Travel of Compound Rest | 110mm (4.3″) | |||
Additional Information
- Precision ground clutched headstock for enhanced accuracy
- Safety features including torque limiting and overload clutch
- Designed for heavy-duty machining tasks
