Cylinder Boring and Honing Machine
Inquire NowDescription

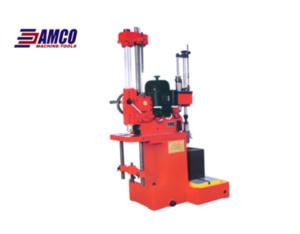

The Cylinder Boring and Honing Machine TM807A is a high-performance tool designed specifically for maintaining the cylinders of motorcycles and other similar applications. This precision-engineered machine enables users to efficiently bore and hone cylinders with diameters ranging from 39mm to 72mm and depths up to 160mm. After determining the center of the cylinder hole, the cylinder is securely fixed on the base, allowing for accurate and effective maintenance work. With the option to fit suitable fixtures, this machine can accommodate various cylinder bodies, ensuring versatility and reliability in performance.
Specifications
| Specification | Details | |
|---|---|---|
| Model | TM807A | |
| Diameter of boring & honing hole | 39-72mm | |
| Max. Boring & honing depth | 160mm | |
| Rotational speed of boring spindle | 480r/min | |
| Steps of variable speed of boring honing spindle | 1 step | |
| Feed of boring spindle | 0.09mm/r | |
| Return and rise mode of boring spindle | Hand operated | |
| Rotational speed of honing spindle | 300r/min | |
| Honing spindle feeding speed | 6.5m/min | |
| Electric motor | Power | 0.75.kw |
| Rotational | 1400r/min | |
| Voltage | 220v or 380v | |
| Frequency | 50HZ | |
| Overall dimensions (L*W*H) | 680*480*1160mm | |
| Packing (L*W*H) | 820*600*1275mm | |
| Weight of main machine (approx) | N.W 230kg, G.W 280kg |
Additional Information
The Cylinder Boring and Honing Machine TM807A is an essential tool for any motorcycle maintenance workshop, ensuring precision and efficiency in cylinder repairs.
