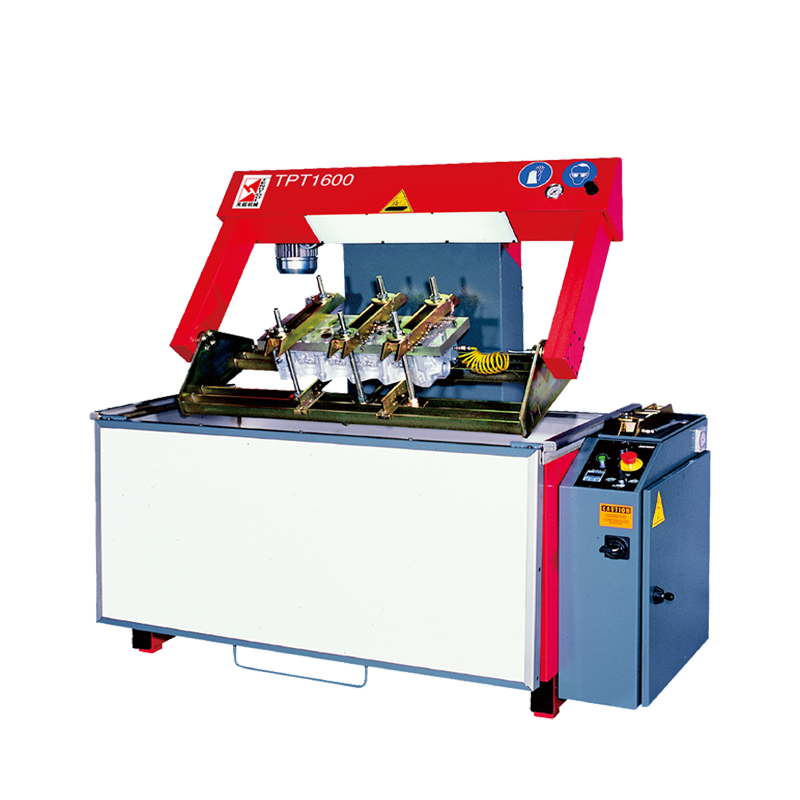

Cylinder head and block Pressure Tester TPT1600
Inquire NowDescription
The Cylinder Head and Block Pressure Tester TPT1600 is an essential tool for professionals in the automotive industry. Designed for precision and efficiency, this tester features a 360° electric powered roll-over fixture and a hydraulic cradle lift that allows for the easy positioning of heavy cylinder heads. The robust stainless steel tank is equipped with a heat barrier and powerful heating elements, providing reliable performance for testing. The unit also incorporates a water level control, low voltage 24V operating control, and an electronic adjustable thermostat, ensuring optimal operating conditions. With a heating programmer that supports daily or weekly settings, this pressure tester meets the demanding requirements of modern automotive workshops.
Specifications
| Part Characteristics | Specification |
|---|---|
| Maximum length (mm/inch) | 1250 mm / 49” |
| Maximum width (mm/inch) | 400 mm / 15.74” |
| Maximum height (mm/inch) | 300 mm / 11.81’’ |
| Capacity of stainless steel tank | 500 liters / 132 US gal |
| Heating elements (kw) | 2×4.5 |
| Hydraulic hoist (kw) | 0.37 |
| Gear-motor (kw) | 0.25 |
| Rotational speed (tr/min) | 4 |
| Up and down travel time (mm/inch in 10sec) | 600 mm / 23.62 |
| Thermostat (°C) | 0-90 |
| Power supply | 400 V 3 PH + Ground (no neutral) |
| Net weight approx (kg/lbs) | 480 / 1058 |
| Overall dimension | |
| Length (mm/inch) | 2000 mm / 78.75” |
| Width (mm/inch) | 1050 mm / 41.34” |
| Height (mm/inch) | 1700 mm / 67” |
Additional Information
- Ideal for automotive workshops and mechanics requiring reliable testing equipment.
- User-friendly interface with programmable features for convenience.
