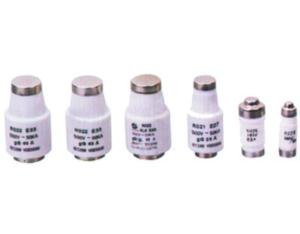

CYLINDRICAL FUSE
Inquire NowDescription
The Cylindrical Fuse is a robust electrical component designed specifically for safeguarding electrical distribution systems operating at a rated voltage of 380V AC. With a range of rated currents up to 125A, these fuses effectively protect against damage caused by overload and short circuit conditions. The fuse links are equipped with cylindrical contact caps, making them ideal for application in fuse isolators, particularly to prevent motor single phasing operations. Reliable and durable, these fuses are essential for maintaining the safety and functionality of electrical installations.
Specifications
| Model | Rated Voltage (V) | Rated Current (A) | Rated Breaking Current (KA) | Dimensions (mm) |
|---|---|---|---|---|
| RL-16ND | 500 | 25 | 50 | 8.5×31.5 |
| RL6-25 | 500 | 25 | 50 | 10×38 |
| RL6-63 | 500 | 63 | 50 | 14×51 |
Additional Information
- Designed for various rated currents: 2, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63, 80, 100, and 125 A.
- Protection against overload and short circuit conditions.
- Efficiently safeguards motors from single phasing operations.
