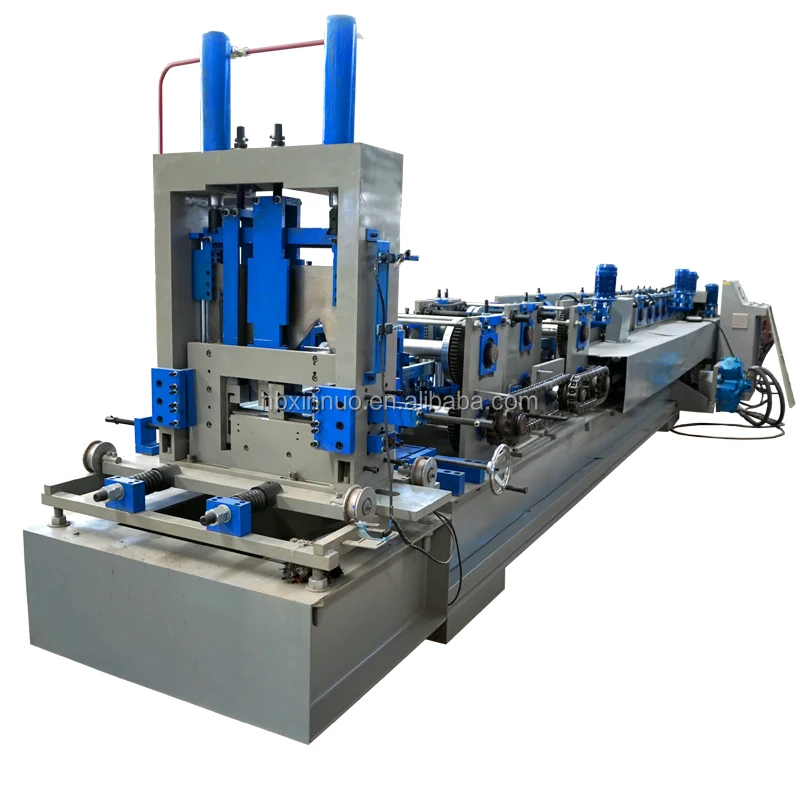

cz purlin machine sheet forming roll machine c purlin roll forming machine

Inquire Now

Description

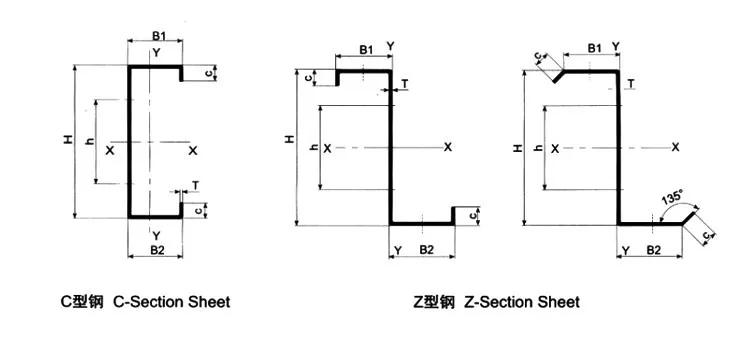

The CZ Purlin Machine is an advanced sheet forming roll machine designed specifically for the production of C and Z purlins. This fully automatic roll forming machine operates efficiently within a range of 80-300mm, catering to various industrial applications such as factory construction, civil buildings, warehouses, and lightweight steel structures. With features like a computer control system, hydraulic control, and a cutting mechanism, it ensures precision and durability in manufacturing. The machine is recognized for its aesthetic design and robust construction, making it a reliable choice for professionals in the steel fabrication industry.

Specifications

Parameter Details
Configurations Manual Uncoiler, Guiding Platform, 9 Shaft Strip Leveler, Main Machine Of Roll Forming, Hydraulic Motor, Pre-Punching Device, Pre-Cutting Device, Hydraulic Station, PLC Control, Supporter Table.
Control System PLC Inverter Encoder Touch Screen
Main Frame 400mm H-Beam
Total Power 22 kw
Power Supply 380V, 3-Phase, 50Hz
Forming Speed 12-24m/min
Roll Station 18 stands
Roller Diameter 80mm
Effective Width 80-300mm
Feeding Thickness 1.5-3.0mm
Backboard Thickness 20mm
Cutter Standard GCr12
Roller Standard Gcr15#
Overall Size About 8500×1000×1400mm
Total Weight About 10T

Additional Information

Note: All technical parameters can be changed according to user needs, and are provided for reference only.

Terms of Payment: 30% of the total contract value paid by T/T as down payment, the remaining 70% to be paid by T/T after inspection by the buyer in the seller’s factory prior to delivery.

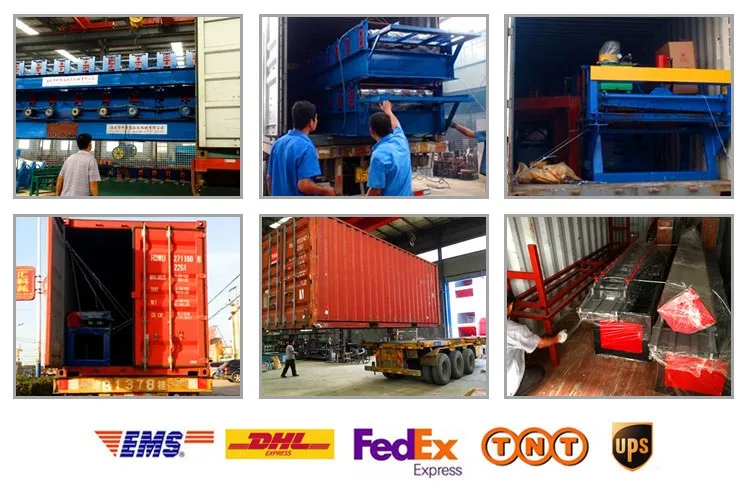

Delivery: 30 days after receipt of advance payment.

Service: Technicians can be sent to your country to fix the machine. The buyer is responsible for all costs including visa, round trip tickets, suitable accommodation, and a salary of $80/day for the technician.

Warranty: 12 months limited warranty. During the warranty period, parts are free but the buyer must pay for shipping.

Product Pictures
