Description
The CZ Purlin Machine is a state-of-the-art sheet forming roll machine designed for creating C and Z purlins efficiently. This fully automatic machine operates within a size range of 80-300mm and is ideal for various industrial applications, including factory construction, civilian buildings, and warehouse manufacturing. It combines advanced technology with a user-friendly interface, featuring a man-made uncoiler, hydraulic control system, and a cutting-edge computer control system. Its robust design ensures durability and a visually appealing finish, making it a valuable addition to any manufacturing setup.
Specifications
| Parameter | Details |
|---|---|
| Configurations | Manual Uncoiler, Guiding Platform, 9 Shaft Strip Leveler, Main Machine Of Roll Forming, Hydraulic Motor, Pre-Punching Device, Pre-Cutting Device, Hydraulic Station, PLC Control, Supporter Table |
| Control System | PLC Inverter Encoder Touch Screen |
| Main Frame | 400mm H-Beam |
| Total Power | 22 kW |
| Power Supply | 380V, 3-Phase, 50Hz |
| Forming Speed | 12-24m/min |
| Roll Station | 18 stands |
| Roller Diameter | 80mm |
| Effective Width | 80-300mm |
| Feeding Thickness | 1.5-3.0mm |
| Backboard Thickness | 20mm |
| Cutter Standard | GCr12 |
| Roller Standard | Gcr15# |
| Overall Size | About 8500×1000×1400mm |
| Total Weight | About 10T |
Additional Information
NOTE: All technical parameters can be changed according to user needs and are only for reference.
Terms of Payment: 30% of the total contract value paid by T/T as a down payment; the remaining 70% to be paid by T/T after inspection by the buyer in the seller’s factory before delivery.
Delivery: 30 days after receipt of advance payment.
Service: We send technicians to your country to fix the machine. The buyer covers all costs including visa, round trip tickets, accommodation, and pays a salary of 80 USD/day.
Warranty: 12 months limited warranty. During warranty: parts are free, but the buyer pays for the shipping fee.

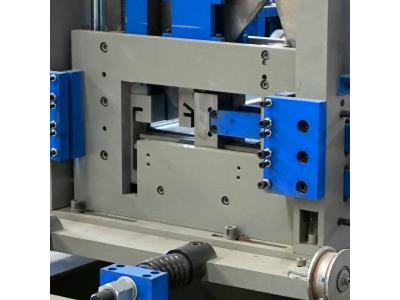

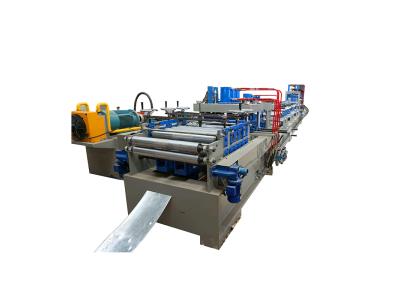

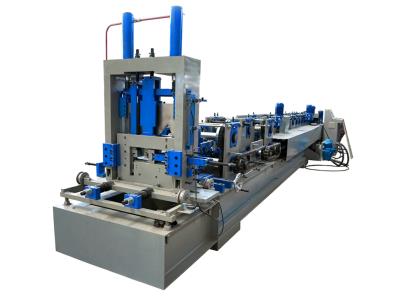

Product Pictures
