cz purlin machine sheet forming roll machine c purlin roll forming machine
Inquire NowDescription

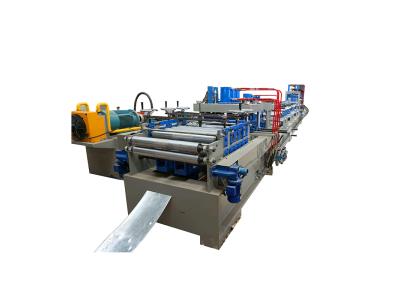

The CZ Purlin Roll Forming Machine is a state-of-the-art solution designed for the efficient production of C and Z purlins. This fully automatic machine features a robust construction, incorporating advanced technology such as a PLC control system, hydraulic control system, and a high-speed cutting mechanism. The machine is engineered for versatility, allowing quick changes in production to accommodate various sizes ranging from 80mm to 300mm in width. Its elegant design not only enhances operational efficiency but also ensures durability, making it ideal for use in industrial factories, civilian buildings, and warehouses.
With a man-made uncoiler and a comprehensive set of configurations, this machine is capable of delivering precision and performance. It is the perfect choice for manufacturers looking to streamline their purlin production process while maintaining high standards of quality.
Specifications
| Parameter | Description |
|---|---|
| Configurations | Manual Uncoiler, Guiding Platform, 9 Shaft Strip Leveler, Main Machine Of Roll Forming, Hydraulic Motor, Pre-Punching Device, Pre-Cutting Device, Hydraulic Station, PLC Control, Supporter Table. |
| Control System | PLC Inverter Encoder Touch Screen |
| Main Frame | 400mm H-Beam |
| Total Power | 22 kW |
| Power Supply | 380V, 3-Phase, 50Hz |
| Forming Speed | 12-24m/min |
| Roll Station | 18 stands |
| Roller Diameter | 80mm |
| Effective Width | 80-300mm |
| Feeding Thickness | 1.5-3.0mm |
| Backboard Thickness | 20mm |
| Cutter Standard | GCr12 |
| Roller Standard | Gcr15# |
| Overall Size | About 8500×1000×1400mm |
| Total Weight | About 10T |
Additional Information
Warranty: 12 months limited warranty. During the warranty period, parts are free, but the buyer pays for the shipping fee.
Terms of Payment: 30% of the total contract value paid by T/T as down payment; the remaining 70% is payable after inspection by the buyer at the seller’s factory, before delivery.
Delivery Time: 30 days after receipt of advance payment.
Service: Technicians are available for installation and operation training. The buyer is responsible for all costs including visa, round trip tickets, suitable accommodation, and a daily salary of $80.

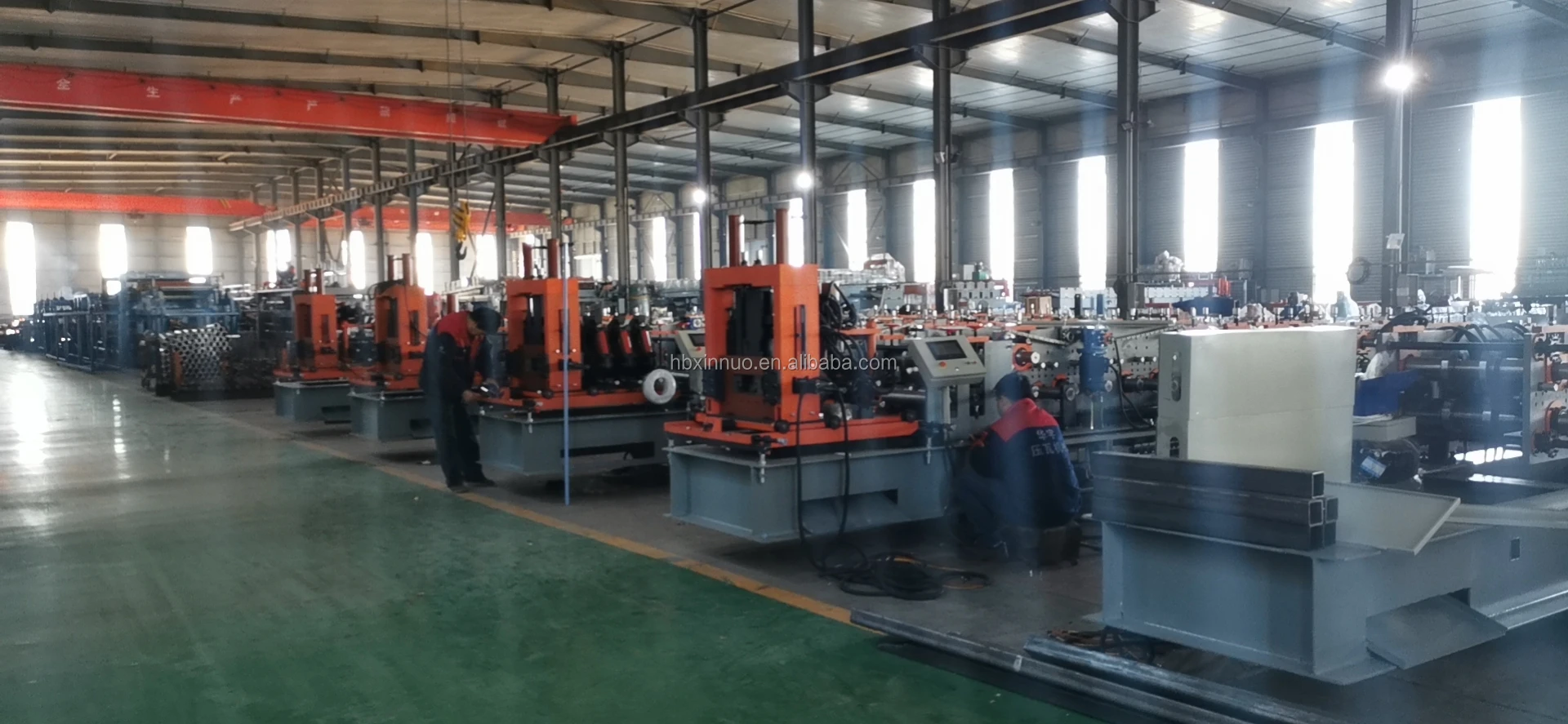

Product Pictures
