cz purlin machine sheet forming roll machine c purlin roll forming machine

Inquire Now

Description

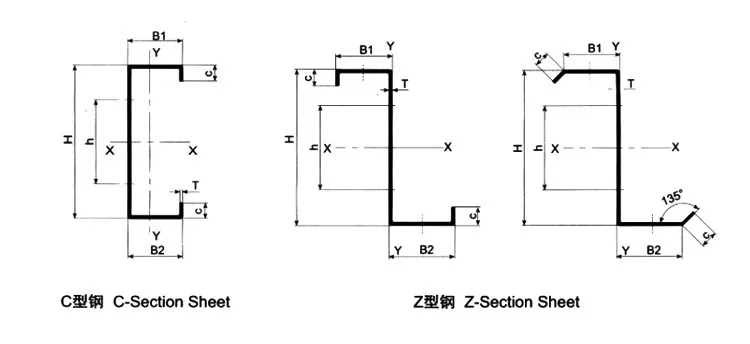

The CZ Purlin Machine is a robust and efficient sheet forming roll machine designed for the production of C and Z purlins. This fully automated machine features advanced technology including a man-made uncoiler, a hydraulic control system, and a computer control system for precise operation. With its ability to produce purlins with widths ranging from 80 to 300mm, this machine is ideal for applications in various industrial factories, civilian buildings, and warehouses. Its durable construction ensures a long service life, while its sleek design contributes to its appealing aesthetics.

Specifications

Parameter	Details

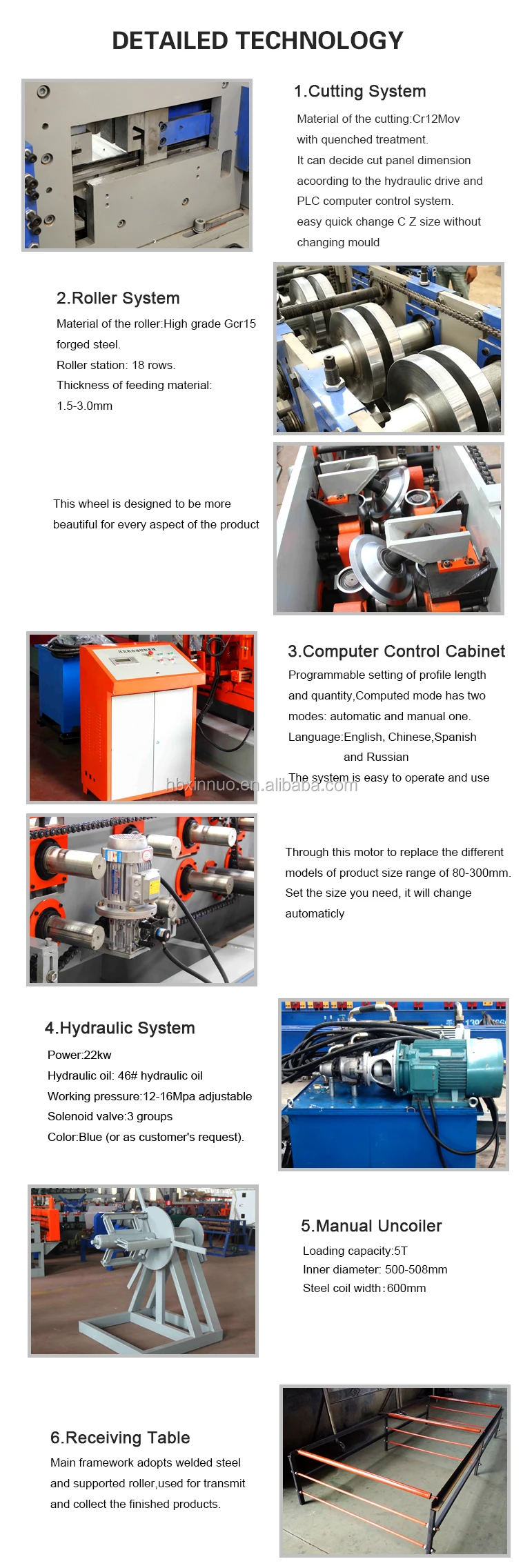

Configurations	Manual Uncoiler, Guiding Platform, 9 Shaft Strip Leveler, Main Machine Of Roll Forming, Hydraulic Motor, Pre-Punching Device, Pre-Cutting Device, Hydraulic Station, PLC Control, Supporter Table.
Control System	PLC Inverter Encoder Touch Screen
Main Frame	400mm H-Beam
Total Power	22 kw
Power Supply	380V, 3-Phase, 50Hz
Forming Speed	12-24m/min

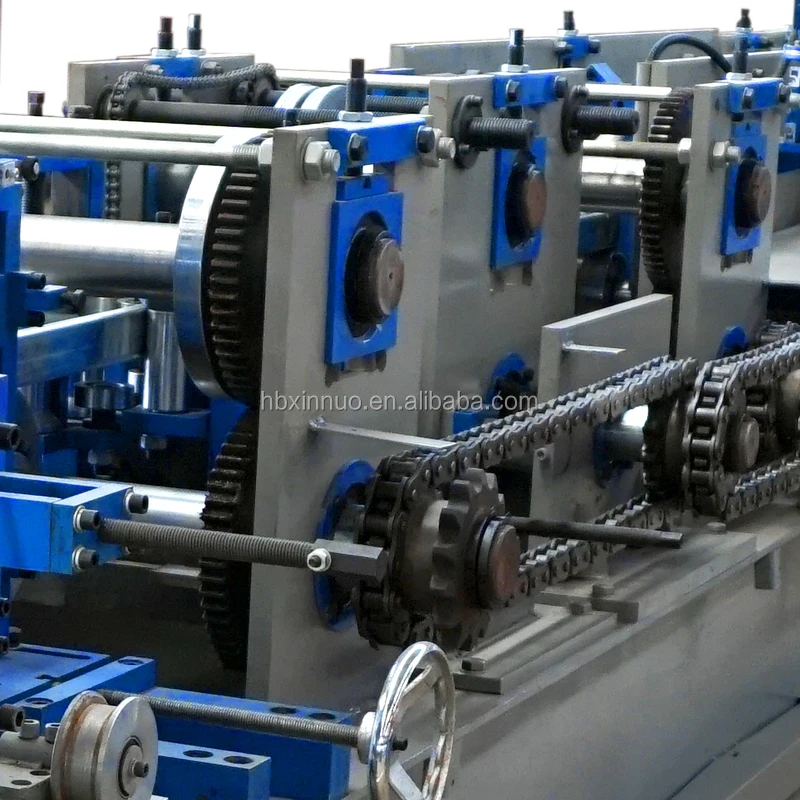

Roll Station	18 stands
Roller Diameter	80mm
Effective Width	80-300mm
Feeding Thickness	1.5-3.0mm
Backboard Thickness	20mm
Cutter Standard	GCr12
Roller Standard	Gcr15#
Overall Size	About 8500×1000×1400mm
Total Weight	About 10T

Additional Information

NOTE: All technical parameters can be changed according to user needs and are only for reference.

Terms of Payment: 30% of the total contract value paid by T/T as down payment, the rest 70% to be paid by T/T after inspection by the buyer in the seller’s factory before delivery.

Delivery: 30 days after receipt of advance payment.

Service: We send technicians to your country to fix the machine. The buyer should bear all costs including visa, round trip tickets, suitable accommodation, and a salary of $80/day.

Warranty: 12 months limited warranty. During warranty, parts are free but the buyer pays for shipping fees.
