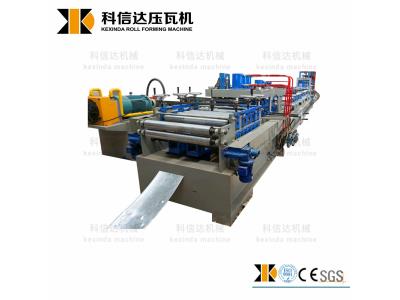

CZ Purlin Making Machine
Inquire NowDescription
The CZ Purlin Making Machine is a highly specialized piece of equipment designed for the efficient production of C and Z purlins. Manufactured with advanced technology, this machine caters to the construction industry’s demand for robust and reliable roll forming solutions. The CZ Purlin Making Machine is part of a comprehensive line of roll forming machines, which includes options for glazed tiles, roof and wall panels, and double-layer systems, among others. This machine features a user-centric design, allowing for customization to meet specific production requirements, ensuring high efficiency and precision in purlin manufacturing.
Specifications
| Attribute | Specification |
|---|---|
| Configurations | Manual Uncoiler, Guiding Platform, Coil Strip Leveler, Main Body of Roll Forming Machine, Electro-Motor, Hole-Punch Device, Cutting Device, Hydraulic Station, PLC Control |
| Control System | PLC Panasonic Inverter |
| Main Frame | 350mm H-Beam |
| Main Power | 11 kW |
| Pump Power | 7.5 kW |
| Power Supply | 3-Phase, 380V, 50Hz |
| Forming Speed | 12-14 m/min |
| Hydraulic Pressure | 18-20 MPa |
| Forming Size | 80-300 mm |
| Feeding Thickness | 1.5-3.2 mm |
| Roller Station | 12 Stands |
| Roller Diameter | 80 mm |
| Backboard Thickness | 18 mm |
| Chain Size | 66 mm |
| Cutter Standard | Cr12 |
| Roller Standard | Cr12 |
| Cr-Plating Size | 0.05 mm |
| Overall Size | 9500 × 1400 × 1350 mm |
| Total Weight | 6T |
Additional Information
We design each machine according to user requirements. The above technical parameters can be customized to fit specific needs, enhancing efficiency and productivity in your manufacturing process.
