DC Fuse Base

Description
PV fuses are applied in PV array combiner box,for protection against overload and short circuit between PV modules and inverter.PV fusess are tested to withstand cycling conditions associated with PV modules system operation and environmental influences.

Technical Data	PV Fuses
Size	10*38mm
Rated voltage	1000V DC max
Rated Current	2,4,6,8,10,16,20,25,30A
Time constant(L/R)	2 ms
Breaking capacity	20KA
Working temp	-25℃-+70℃
Conform	IEC60269 standards

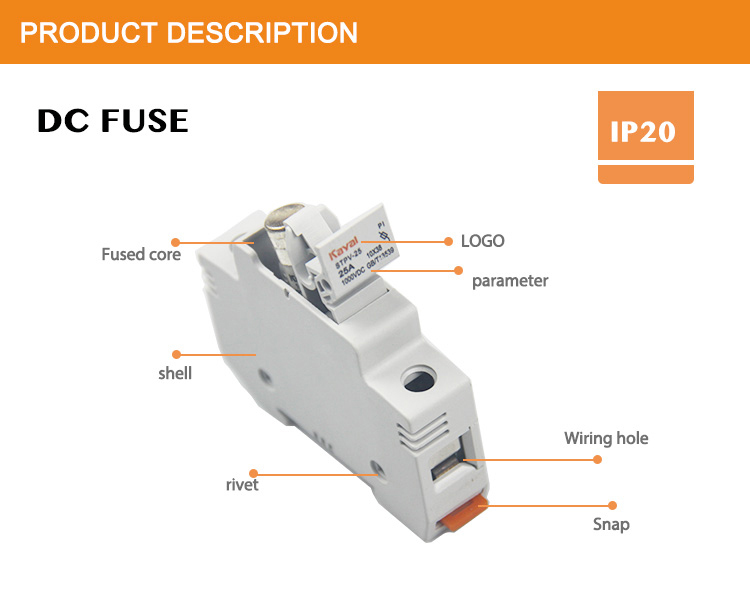

Technical Data	PV Fuse Holder
Conform	IEC60947-3 standards
Rated voltage	1000V DC max,DC20B
Housing material	PA66,UL94-V0
Mounting	DIN rail EN50022
Rigid conductor	1 up to 16mm2
Flexible conductor	0.75 to 10mm
