DC Miniature Circuit Breaker, 2p 600V 1000V MCB Safety Breaker, for Solar PV System Solar
Inquire NowDescription

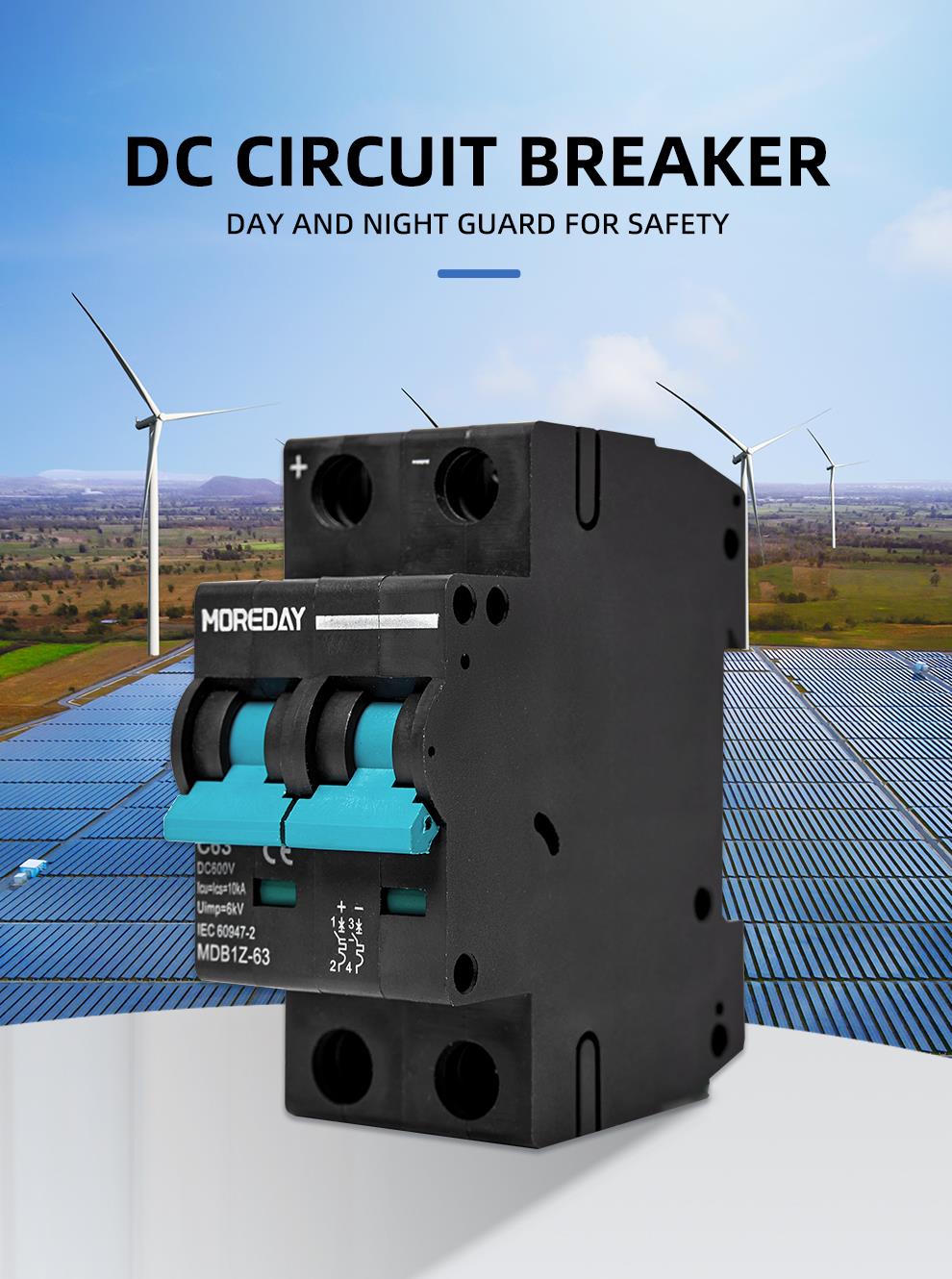

The mdb1z-63 New Black Series L7 DC Miniature Circuit Breaker is a cutting-edge solution for electrical protection, specifically designed for solar PV systems. This high-performance circuit breaker combines reliability with a sleek black design, making it suitable for both residential and commercial applications. Its compact size ensures powerful performance without occupying excessive space, making it ideal for installations where every inch counts.

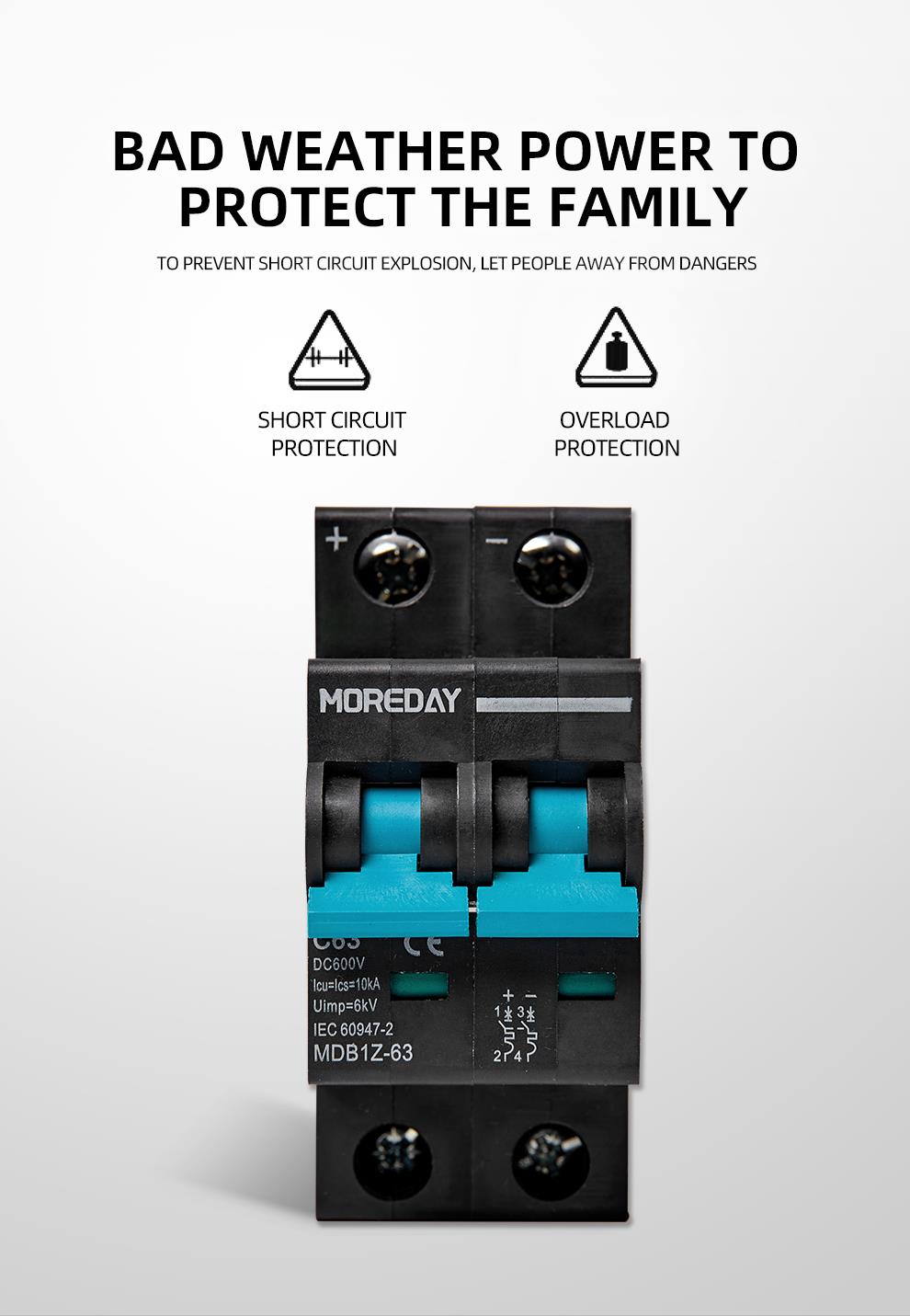

With the ability to protect against overcurrents and short circuits, the mdb1z-63 offers peace of mind whether you’re upgrading an existing electrical system or setting up a new one. Homeowners and professional electricians alike will appreciate the durability and user-friendly design of this circuit breaker, which not only enhances safety but also complements the aesthetics of any installation. Invest in the mdb1z-63 and secure your electrical system with confidence.
Specifications
| Attribute | Details |
|---|---|
| Model | MDB1Z-63PV |
| Rated Current | 63A |

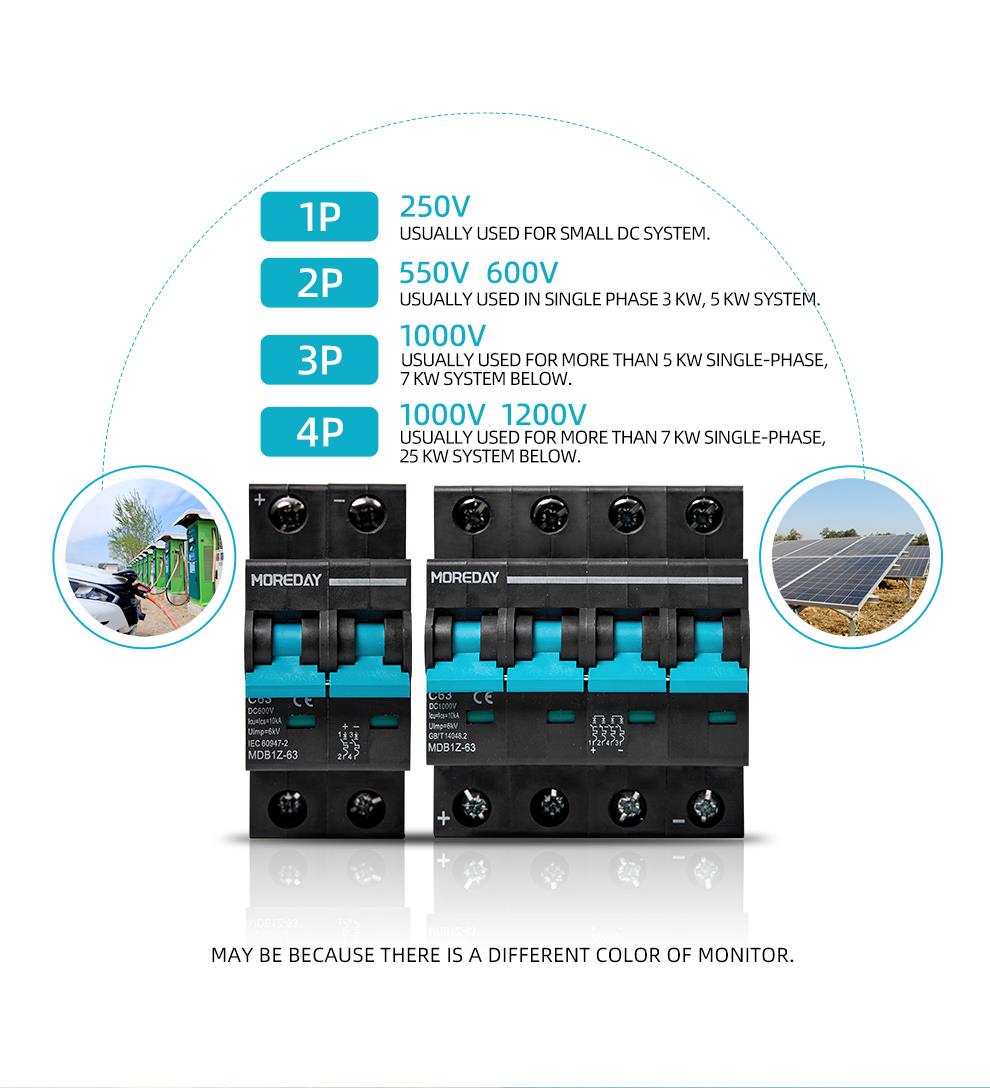

| Poles | 1P, 2P, 3P, 4P |
| Rated Operating Voltage (VDC) | 12V, 24V, 48V, 300V, 600V, 900V, 1200V |
| Rated Insulation Voltage Ui (VDC) | 1250VDC |
| Ultimate Breaking Capacity Icu (kA) | 6 |
| Curve Type | C |
| Trip Type | Thermal-magnetic |
| Wiring Capacity (mm²) | In≤32A, 1.5~6 mm²; In≥40A, 10~16 mm² |

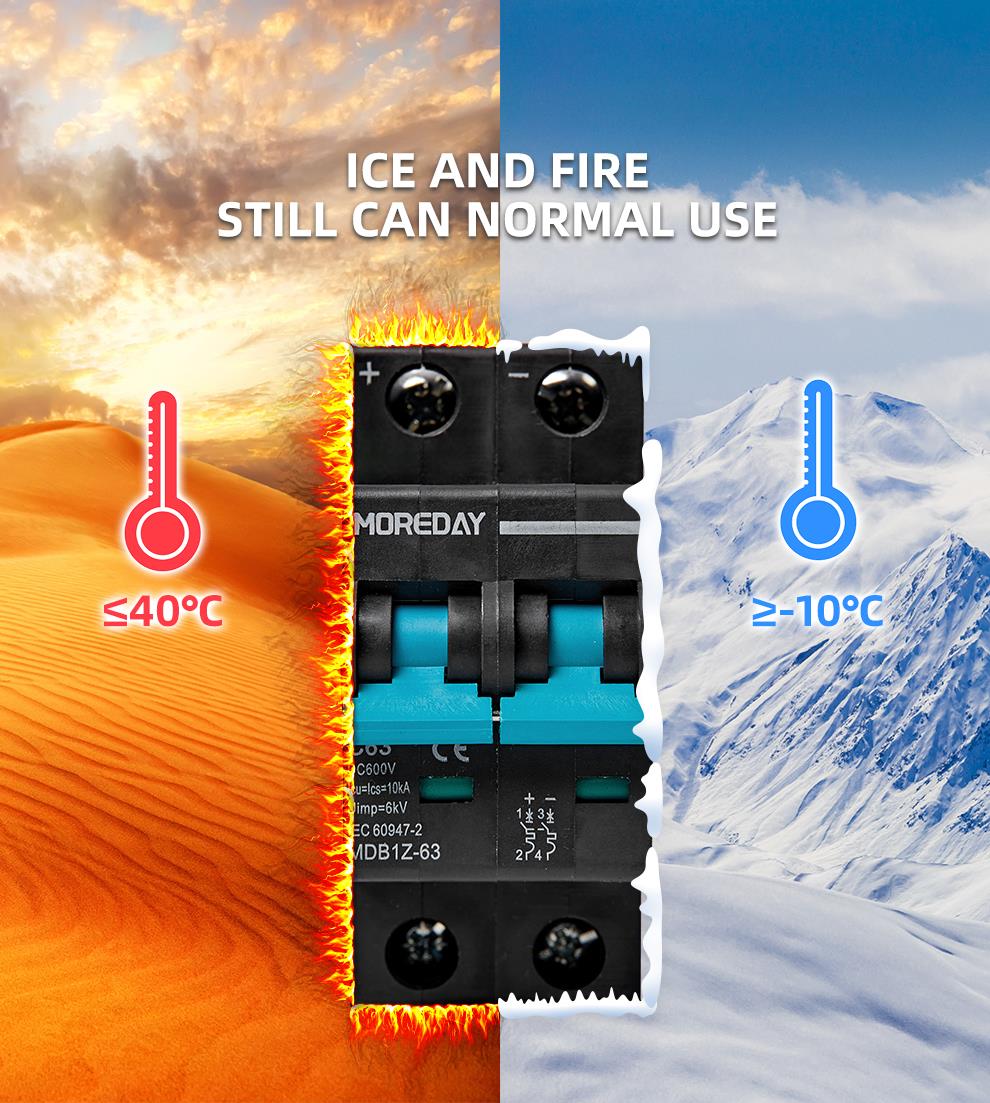

| Ambient Temperature | -20°C to +70°C |
| Installation Environment | No obvious shock and vibration |
Additional Information
This circuit breaker is designed for easy installation on standard DIN rails and is suitable for Class II and Class III installation categories. With an impressive mechanical endurance of up to 20,000 cycles and electrical endurance of 2,500 cycles, it ensures long-lasting performance. The mdb1z-63 is ideal for diverse applications, particularly in solar photovoltaic systems.
Detailed Photos
