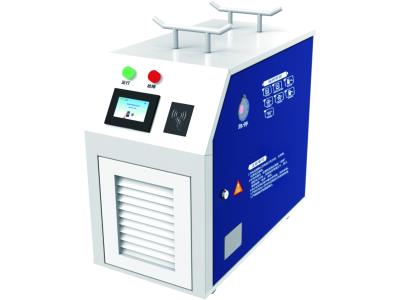

DC-X-0xxA 15-40kw portable DC charging pile universal / constant power series
Inquire NowDescription
The DC-X-0xxA 15-40kW Portable DC Charging Pile is designed to provide a versatile and efficient charging solution for electric vehicles. This advanced charging station is equipped with multiple operational features, ensuring an optimal charging experience. Users can initiate charging effortlessly by swiping a card or using a mobile application. Its range of charging functionalities includes automatic charging, quantitative charging, and timing charging options, making it convenient for various user needs.
With a robust design that adheres to the new national standards, this charging pile features a multi-way operation management system and supports various payment methods including mobile app payments, credit card transactions, as well as WeChat and Alipay. The charging station also offers a user-friendly interface that ensures easy access to its functions, supported by a 4.3-inch color touch screen display.
Specifications
| Attribute | Details |
|---|---|
| Input Frequency | 45-65Hz |
| Input Voltage Range | AC380V ± 20% |
| Rated Output Power | 15-40 kW |
| Output Current Range | 0-40A/110A |
| Output Voltage | 50-750V |
| Leakage Protection | Leakage current ≤ 30mA, action time ≤ 0.1s |
| Protection Grade | IP54 |
| Communication Interface | Ethernet |
| Display | 4.3-inch color touch screen |
| Type | Single gun / Double gun (optional) |
Additional Information
- Simple Operation: Initiate charging directly with a card swipe or via mobile app.
- Charging Function: Supports automatic, quantitative, timing, and pricing charging.
- Multi-way Operation Management: Local self-settlement operation available.
- Background Interface: Features CAN, RS232/485, and wireless interfaces (GPRS/3G/4G).
- Payment Methods: Accepts mobile app payments, credit cards, WeChat, and Alipay.
