DELIXI 0.4-132KW 220/380V reliabe New E102 Series frequency inverter converter vfd
Inquire NowDescription
The DELIXI 0.4-132KW 220/380V E102 Series frequency inverter converter (VFD) is a reliable, low-power inverter designed to optimize performance in various industrial applications. This classic-type inverter features advanced SVC and V/F control for stable operation, making it ideal for situations with demanding input and output requirements. The E102 Series is user-friendly, configuring the most frequently used functions to enhance cost-effectiveness and resource efficiency.
Its compact structure offers an elegant appearance and flexibility in installation, accommodating both slide and hole mounting methods. The inverter supports a variety of applications, including die-cutting, carving, textile, glass-making, and dyeing machines, ensuring versatility across industries.
Specifications
| Attribute | Details |
|---|---|
| Power Range | 0.4 – 132KW |
| Input Voltage | 220/380V |
| Control Type | SVC and V/F Control |
| Type Selection | 15kW and below with standard brake units; 18.5-22kW with optional brake units |
| Applications | Low-power non-VC situations |
Additional Information

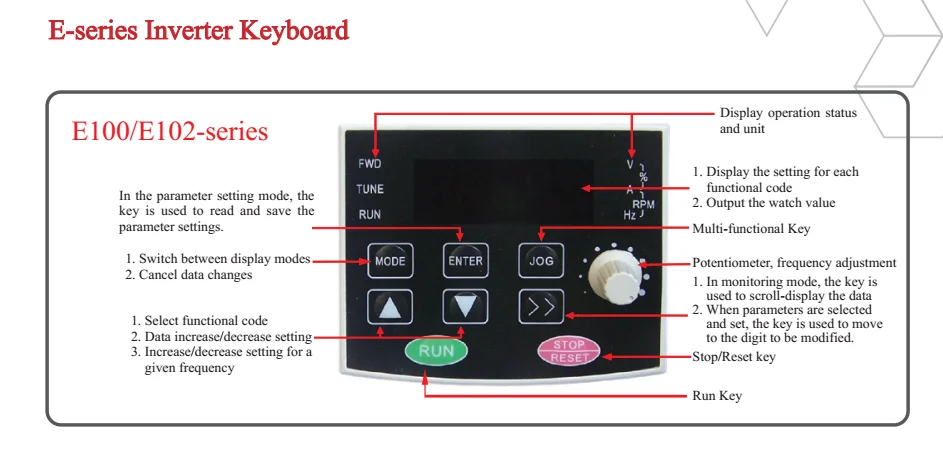

Included accessories for enhanced functionality are an external keyboard, extension cord, and E102-485 communication expansion card. This flexibility allows for customized setups tailored to specific operational needs.
Images
