DELIXI Arc Welders ZX7-250S (MMA-250S) single voltage 6 capacitors mma inverter welding ma
Inquire Now
1. Advanced IGBT inverter technology, low consumption and high output
2. Digital control improves the reliability
3. All kinds of acid, alkalic electrodes are applicable
4. Wide range of power grid adaptation, 220V/380V switch automatically and precisely
5. High no load voltage, smooth and stable welding performance with minimal spatter
6. High speed fan brings effective dissipation and high duty cycle
7. Over-current, over-voltage and over-heat protection

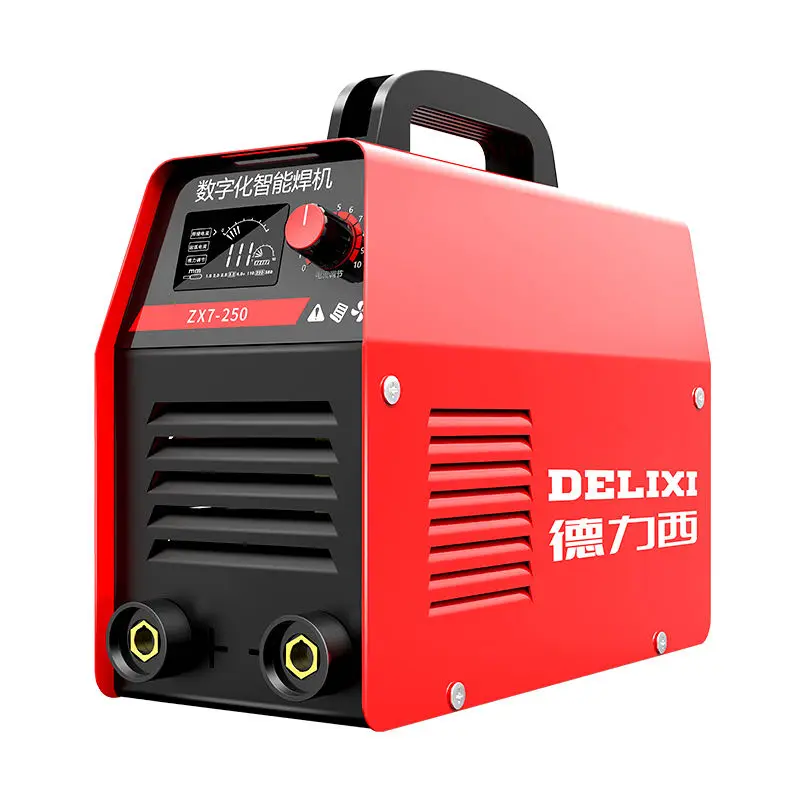

1.Pictures of ZX7-250S (MMA-250S) mma inverter welding machine 250
2.Features of ZX7-250S (MMA-250S) mma inverter welding machine 250
1. Advanced IGBT inverter technology, low consumption and high output
2. Digital control improves the reliability
3. All kinds of acid, alkalic electrodes are applicable
4. Wide range of power grid adaptation, 220V/380V switch automatically and precisely
5. High no load voltage, smooth and stable welding performance with minimal spatter
6. High speed fan brings effective dissipation and high duty cycle
7. Over-current, over-voltage and over-heat protection
3.Specifications of ZX7-250S (MMA-250S) mma inverter welding machine 250
| Product Name | MMA Welding Machine | MMA Welding Machine | MMA Welding Machine |
| Product number | ZX7-250S | ZX7-250Z | ZX7-250Y |
| Model remarks | Single voltage 6 capacitors | Smart button common panel | Smart LCD panel |
| Input voltage | AC220V±15% | AC220V±15% | AC220V±15% |
| Frequency (HZ) | 50/60 | 50/60 | 50/60 |
| Rated input current (A) | 22.7 | 22.7 | 22.7 |
| Rated input capacity (KVA) | 4.8 | 4.8 | 4.8 |
| Rated output voltage (V) | 24.8 | 24.8 | 24.8 |
| No-load voltage (V) | 62 | 62 | 62 |
| Current adjustment range (A) | 20-120 | 20-120 | 20-120 |
| Load duration (%) | 30 | 30 | 30 |
| effectiveness(%) | 85 | 85 | 85 |
| Power Factor | 0.7 | 0.7 | 0.7 |
| Product size (mm) | 125mm*210mm*300mm | 125mm*210mm*300mm | 125mm*210mm*300mm |
| Packing size (mm) | 370mm*240mm*300mm | 370mm*240mm**300mm | 370mm*240mm**300mm |
| Net weight (KG) | 2.77kg | 2.83kg | 2.77kg |
| Gross weight (KG) | 3.33kg | 3.39kg | 3.33kg |
