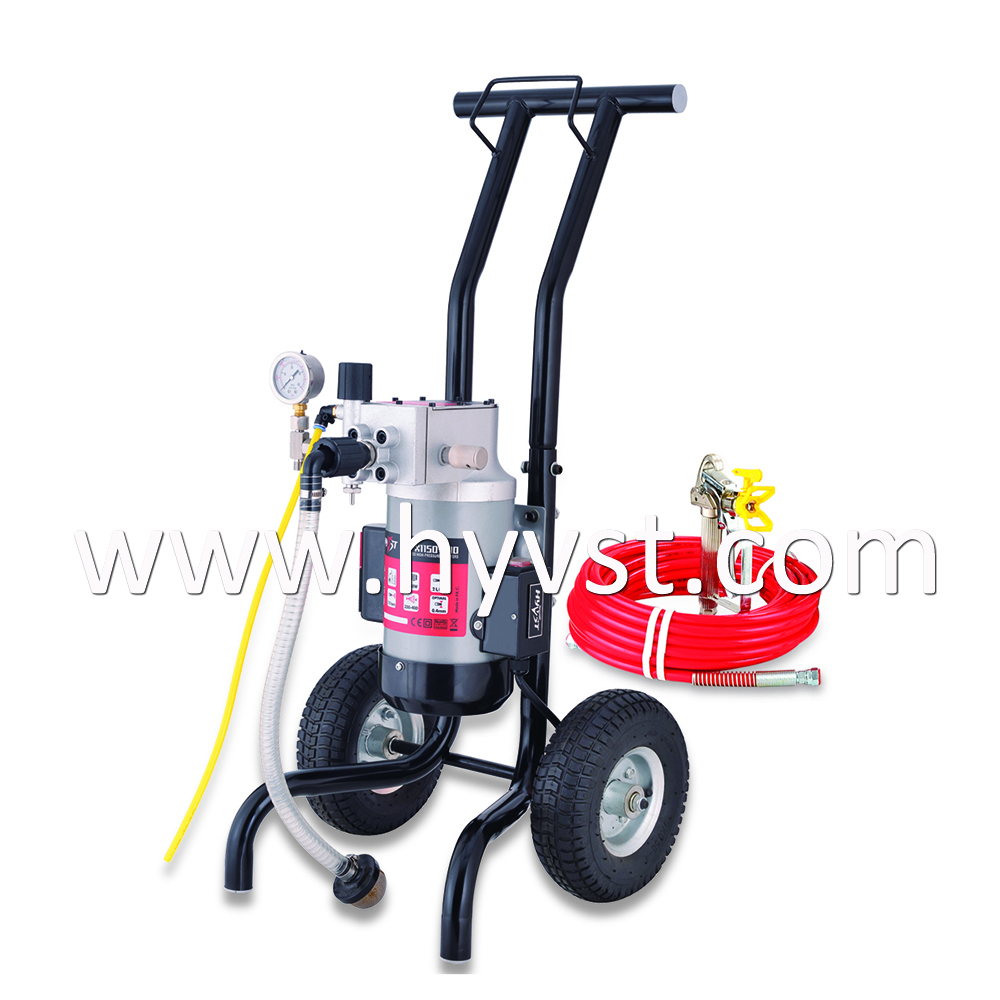

Diaphragm pump airless paint sprayer
Inquire NowDescription
The Diaphragm Pump Airless Paint Sprayer is designed for efficiency and portability, making it an essential tool for both DIY enthusiasts and professionals. Equipped with a wheeled cart, this sprayer features pneumatic wheels and a folding handle, allowing for easy mobility on the job site. The reliable mechanical pressure control valve operates similarly to an electronic one, ensuring consistent performance.
Its stainless steel suction tube comes with a two-layer inlet filter and a user-friendly screw-in connector for the inlet valve. The high-quality inlet/outlet valves, made from stainless steel and tungsten carbide, guarantee optimal performance. Capable of supporting a maximum spray tip size of 0.019 inches, this sprayer is perfect for small to medium painting projects.
Specifications
| Model Number | SPX1150-210 |
|---|---|
| Type | Diaphragm pump, Cart mounted |
| Motor Power | 1150W/1.5HP |
| Voltage/Frequency | 110/220V, 50/60Hz |
| Max. Flow | 2.1L/min (0.55gpm) |
| Max. Pressure | 21Mpa/210Bar/3046Psi |
| Suggested Nozzle | 0.017″ |
| Max. Nozzle | 0.019″ |
| Optimal Spraying Distance | 350-400mm |
| Hydraulic Oil | ISO VG32 |
| Certificates | EMC, LVD, MD, RoHS, GS |
| Packing Size | 52*45*64cm (20.5*17.7*25.2in) |
| Net Weight | 29kg (68.3lbs) |
| Gross Weight | 31kg (64lbs) |
| Container Loading | 180 units (20GP), 307 units (40FT), 440 units (40HQ) |
| Warranty | 1-Year Limited Warranty (for main components) |
Additional Information
Standard Accessories:
- 1x 15m pressure hose
- 1x 60cm extension wand
- 1x spray gun with tip 517
- 1x hand tool kit
- 1x suction tube
- 1x pressure gauge
- 1x easy wearing spare parts
- 1x manual in English
