Diesel engine
Inquire NowDescription

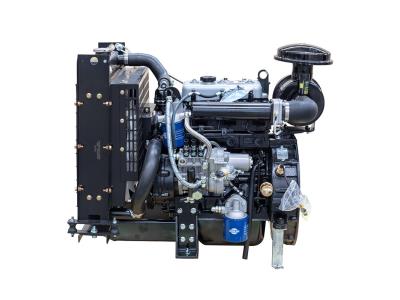

The Black Blue Red Color Generator Sets Series Diesel Engines are designed for reliability and efficiency, making them an excellent choice for various applications. These diesel engines are available in multiple models, including QC380D, QC385D, QC480D, N485D, and more, ensuring that you have the right engine for your specific needs. With a focus on performance, these engines feature both mechanical and electronic governor controls, allowing for smooth operation and optimal fuel efficiency.
Each model is engineered with high-quality components, offering durability and longevity. The engines are suitable for generator sets, providing dependable power in both industrial and residential settings. The range of models includes options for different power outputs and specifications, catering to diverse requirements.
Specifications
| Model | QC380D | QC385D | QC480D | N485D | QC490D |
|---|---|---|---|---|---|
| Bore & Stroke | 80*90 | 85*90 | 80*90 | 85*95 | 90*105 |
| Displacement (L) | 1.357 | 1.532 | 1.809 | 5.516 | 2.67 |
| Cylinder Liner Type | Wet | Dry | Wet | Dry | Wet |
| Intake Way | Naturally aspirated | Naturally aspirated | Naturally aspirated | Naturally aspirated | Naturally aspirated |
| Standby (kW) | 10 | 12 | 11 | 13.2 | 14 |
| Speed (r/min) | 1500 | 1800 | 1500 | 1800 | 1500 |
| Fuel Consumption Ratio | <=255 | <=255 | <=245 | <=240 | <=235 |
| Flywheel Cover Type | SAE4# | SAE4# | SAE4# | SAE4# | SAE4# |
| Flywheel Type | SAE7.5″ | SAE7.5″ | SAE7.5″ | SAE7.5″ | SAE7.5″ |
Additional Information
These diesel engines are equipped with both mechanical and electronic governor controls, allowing for precision in power management. They are designed for ease of installation and maintenance, ensuring that users can keep them running efficiently with minimal effort.
