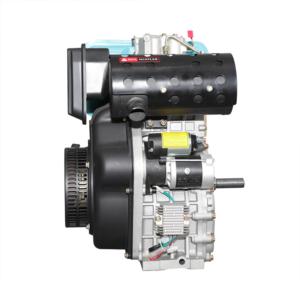

DIESEL ENGINE-ETK192F(E)
Inquire NowDescription
The DIESEL ENGINE-ETK192F(E) is engineered for reliability and efficiency, making it an ideal choice for a variety of applications. This single-cylinder, vertical, direct injection, air-cooled diesel engine operates at speeds of 3000/3600 rpm, offering power options of 5HP, 7HP, 10HP, 12HP, and 14HP, all with CE certification. It utilizes high-quality spare parts to ensure fast starting, smooth operation, and reduced noise and fuel consumption. This robust engine has been widely exported to regions including the Philippines, Thailand, Europe, America, and South Africa.
Key advantages include a one-year warranty, skilled technicians, and a commitment to high-quality standards. The engine is designed for easy maintenance, complete with a standard operation manual and necessary tool kits.
Specifications
| Model | 12HP ETK192F(E) |
|---|---|
| Type | Single cylinder, vertical, direct injection, 4-stroke, air-cooled diesel engine |
| Bore×stroke (mm) | 92×75 |
| Displacement (cc) | 498 |
| Compression ratio | 20:01 |
| Engine speed (rpm) | 3000/3600 |
| Continuous output (KW) | 8.1/8.7 |
| Fuel tank capacity (L) | 3.5 |
| Lube capacity (L) | 1.65 |
| Crankshaft direction | Clockwise from flywheel end |
| Cooling type | Force air-cooled |
| Lubrication type | Pressure splash |
| Starting system | Recoil manual start/optional electric start |
| Packing dimensions (L×W×H mm) | 510×470×580 |
| Weight (kg) | 48.7 |
| 20FT container (pcs) | 200 |
