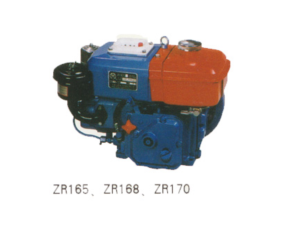

Diesel engine horizontal type water cooled ZR165
Inquire NowDescription
The ZR165 is a robust horizontal type water-cooled diesel engine, designed to deliver exceptional performance in various applications. This 4-stroke engine features a single cylinder with a compression ratio of 22, ensuring efficient combustion and powerful output. With a rated speed of 2600 RPM, the ZR165 is engineered for reliability and durability, making it an ideal choice for both industrial and agricultural uses.
Specifications
| Attribute | Details |
|---|---|
| Model | ZR165 |
| Type | Horizontal 4 stroke |
| Combustion chamber type | Swirl |
| Number of cylinders | 1 |
| Bore x Stroke (mm) | 65 x 60 |
| Total displacement (L) | 0.199 |
| Compression ratio | 22 |
| 1 hour rated power (kW) | 2.67 |
| 12 hour rated power (kW) | 2.43 |
| Rated speed (r/min) | 2600 |
| Specific fuel consumption (g/kW-h) | 307.4 |
| Cooling method | Water cooled |
| Starting method | Handle/Electrical |
Additional Information
For optimal performance, ensure regular maintenance checks and proper cooling system management. This engine is designed for versatility and can be utilized in a range of settings, from small machinery to larger installations.
