Description

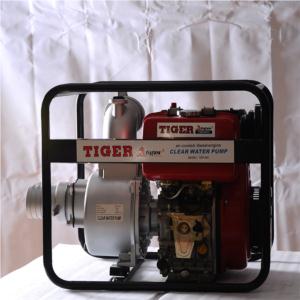

The Diesel Engine Water Pump is a robust and efficient solution designed to meet your water transfer needs. Ideal for agricultural, industrial, and construction applications, this pump combines powerful performance with reliability. It is equipped with a TD178F engine, known for its durability and efficient fuel consumption. With a maximum output of 5.5 HP, this diesel engine water pump can achieve a total lift of up to 26 meters and a maximum suction depth of 8 meters, making it suitable for various challenging environments. The TDP30C model delivers an impressive capacity of 1100 liters per minute, ensuring quick and effective water management.
Specifications
| Pump Model | TDP30C |
|---|---|
| Inlet / Outlet (mm) | 80 |
| Total Lift (m) | 26 |
| Max. Suction (m) | 8 |
| Max. Capacity (L/min) | 1100 |
| Engine | |
|---|---|
| Model | TD178F |
| Max. Output (HP) | 5.5 |
| Displacement (cc) | 296 |
| Starting System | Recoil |
| Engine Type | Vertical, single cylinder, 4-stroke, air-cooling, diesel |
| Ignition System | Direct injection |
| Fuel Tank (L) | 3.5 |
| Oil Capacity (L) | 1.1 |
| Package | |
|---|---|
| Dimension (L x W x H) mm | 580 x 475 x 545 |
| G.W (Kg) | 54 |
| 20′ FCL (pcs) | 180 |
Additional Information
- Engine features air cooling for enhanced durability.
- Ideal for various applications including irrigation and construction.
