Description

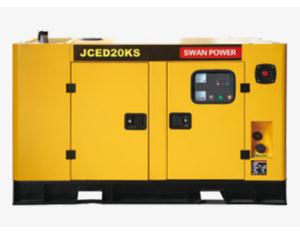

The Diesel Generator JCED20KS-3 is a robust and reliable power solution designed for various applications, from construction sites to emergency backup power. With a rated output power of 19 KVA, this generator is engineered to deliver consistent and efficient performance. Its advanced self-excitation constant pressure system, combined with an intelligent panel, ensures optimum power management and safety. The generator operates smoothly at a frequency of 50 or 60 Hz, making it versatile for different regions.
Equipped with a powerful ZN490B engine, the generator features a 4-cylinder structure, providing a high compression ratio of 18:1 for enhanced fuel efficiency. The unit’s noise level is kept at a manageable 72 dB, thanks to its mute type structure, ensuring minimal disruption during operation. With a fuel tank capacity of 85 liters, the JCED20KS-3 can run continuously for up to 13 hours, making it an ideal choice for long-term power needs.
Specifications
| Attribute | Value |
|---|---|
| Model | JCED20KS-3 |
| Rated frequency (Hz) | 50 / 60 |
| Rated output power (KVA) | 19 |
| Maximum output power (KVA) | 21 |
| Rated voltage (V) | 230/400 / 240/416 |
| Rated current (A) | 27.5 / 29 |
| Rated speed (r/min) | 1500 / 1800 |
| Pole | 4 |
| Excitation mode | Self-excitation constant pressure (with AVR) |
| Insulation level | H |
| Engine type | ZN490B |
| Cylinder structure | 4-cylinder-array 4-stroke Water-cooled direct Injection |
| Bore × stroke (mm) | 90 × 100 |
| Total displacement (L) | 2.545 |
| Rated power [KW/(r/min)] | 22 / 26.4 |
| Starting way | 12V Electric start |
| Fuel types | Diesel: 0# (summer) – 10# (winter) – 35# (cold) |
| Noise dB | 72 |
| Unit fuel tank capacity (L) | 85 |
| Unit continuous running time (h) | 13 |
| Physical size (mm) L × W × H | 1800 × 850 × 920 |
| Net weight (Kg) | 600 |
