Genset Model

APW–80

Rated Output(kw)

80

Rated Output(kva)

100

Rated Voltage(v)

380/220

Frequency(Hz)

50

Engine Model

R6105AZLDS

Engine Brand

weichai

Rated ouput (kw)

121

Governing method

Mechanical

Bore x Stroke(mm)

105*125

Intaking method

Turbocharged

Oil volume(L)

16

Fuel Consumption(g/kw.h)

239

Fuel Consumption(L/H)

21.7

Oil Consumption (g/kw.h)

≦4g

Exhaust Flow(L/S)

276

Exhaust Temperature(℃)

481

Water volume(L)

25

Cooling System

Closed water cooled

Starting Method

D.C.12V Electric starting

Alternator Model

UC274C

Rated power(kw)

80

Rated voltage(V)

380/220

Rated current (A)

151.9

Rated frequency (Hz)

50

Rated speed (rpm)

1500

Power factor

0.8 lagging

Phase connection

3-phase

Winding connection

Three phase,four wire

Excitation method

Brushless

Insulation class

H

Voltage regulation

Automatic, +/- 1.0%

CONTROL PANEL

Basic Controller

Total harmonic TGH/THC

At no load <1.5%, on load <2%

Type

L*W*G(mm)

Weight(kg)

Open

2300*860*1300

1260

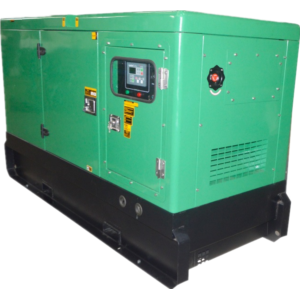

silent

2900*1080*1600

1860

GENSET

Basic

Optional

Weichai Diesel Engine

■

HOPOW Stamford AC Alternator

■

Mild steel Skid Base

■

Set Mount Anti-vibration Isolators

■

Control Panel and Main Breaker

■

Soundproof Cabinet

■

Set Mount Radiator

■

Industrial Silencer

■

Residential Silencer

■

Flexible Bellow

■

Lead Acid battery

■

Fuel Tank ,8 hours running

■

GTR-170 control module

■

HGM6120 Controller ATS system
