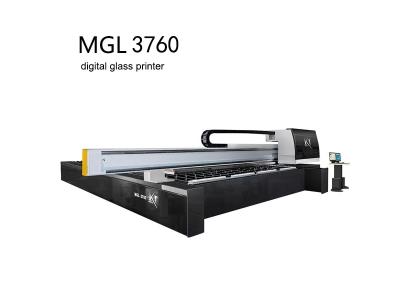

Digital Glass Printer MGL3760
Inquire NowDescription
The Digital Glass Printer MGL3760 is a high-performance glass printing solution designed for versatility and precision. Utilizing inorganic inks, this printer is capable of withstanding high temperatures and delivering stunning results on a variety of glass surfaces. Its advanced positioning system ensures accurate printing, making it suitable for multiple applications, from ceramics to automotive components.
With a robust ink channel design, the MGL3760 supports a wide range of colors, including blue, red, yellow, black, green, white, and specialty inks like gold and platinum. The printer operates with various file formats such as TIF, JPEG, PSD, PDF, and EPS, ensuring compatibility with your design needs. Its innovative print control system and independent printhead control board enhance reliability and performance, making the MGL3760 an essential tool for professional printing.
Specifications
| Feature | Details |
|---|---|
| Maximum Printing Size | 3700mm × 6000mm |
| Minimum Printing Size | 300mm × 300mm |
| Thickness | 3-19mm |
| Magic Cube | Max 8 channels, max 24 printheads |
| Print Resolution | 1 pass: 360×360dpi, 2 pass: 360×720dpi, 3 pass: 360×1080dpi, 4 pass: 360×1440dpi |
| Ink Types | Inorganic tempered glass ink (various colors), organic ink, automotive ink, luxury ink (gold, platinum, lustre) |
| Print Control System | Independent research and development print control system, independent printhead control board |
| Supported File Formats | TIF, JPEG, PSD, PDF, EPS (all formats that the PS5 can open and support) |
| Printing Speed | Rocket mode: 300m²/h, Production mode: 150m²/h, Photorealistic mode: 90m²/h |
| Power Supply | 380V (3F+N+GND) – 50/60HZ, Max 77KW |
Additional Information
Ensure to follow the manufacturer’s guidelines for optimal usage and maintenance of the Digital Glass Printer MGL3760. Regular cleaning and proper handling will extend the life of your printer and maintain print quality.
